HYDRAFORCE
5600530

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

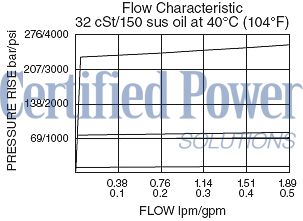

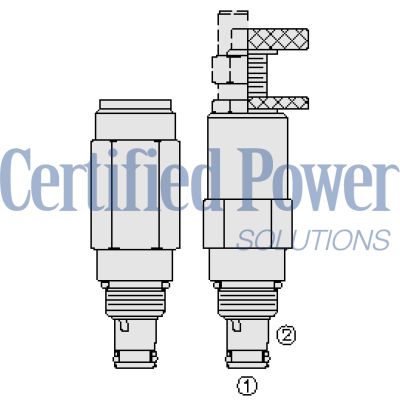

The Hydraforce RV08-29A-0-N-35/ (5600530) is a screw-in, cartridge-style, direct-acting poppet-type hydraulic relief valve designed for controlling pressure in low-flow systems that manage pilot operating valves. This robust valve functions by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to displace the spring-opposed poppet from its seat. It offers a variety of pressure adjustment options, including factory-preset non-adjustable settings, ensuring precise control tailored to specific applications. The hardened poppet and cage construction enhance durability and longevity, while the compact size allows for easy integration into various systems. The RV08-29A model delivers smooth responses to pressure surges and features an industry-common cavity design for versatile application compatibility. It supports optional spring ranges up to 241 bar (3500 psi), with a proof pressure of 482.6 bar (7000 psi) and a burst pressure of 896.3 bar (16000 psi). The valve's flow rating is 1.9 lpm (0.5 gpm) at maximum pressure, with internal leakage limited to 3 ml/min at up to 80% of the nominal setting. Designed for reliability across diverse environments, it operates effectively within fluid temperature ranges from -40 to 100 \u00b0C with Buna N seals and accommodates other seal types like fluorocarbon and polyurethane for extended temperature ranges. The valve supports fluids that are mineral-based or synthetic with lubricating properties and can handle fluid viscosity ranging from 7.4 to 420 cSt. Installation requires a VC08-2 cavity with torque specifications between 25.8 to 28.5 N-m for cartridge installation, ensuring secure placement without orientation restrictions. Seal kits are available under SK08-2X-B part numbers, providing flexibility in maintenance and repair operations.
