HYDRAFORCE
5528003

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

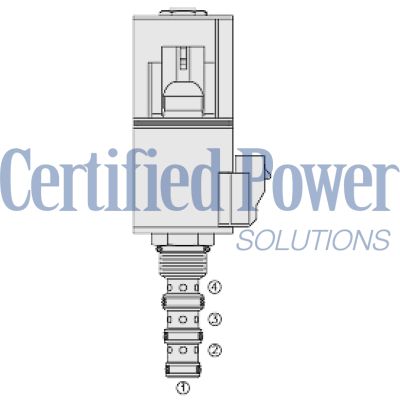

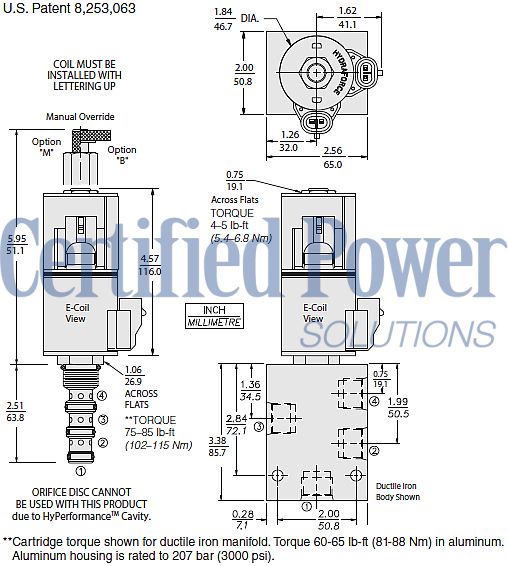

The Hydraforce HSV10-47D-0-U-00 (5528003) is a high-pressure, 4-port, 3-position, spool type, screw-in, cartridge-style hydraulic solenoid valve designed for robust performance in various hydraulic systems. This model features a unique manual override operation that allows for emergency manual control of the valve in situations where electronic control cannot be utilized. The override is facilitated by a knob that can be pushed, rotated, and pulled to shift the valve manually from its neutral position to activate specific coil functions. The HSV10-47D-0-U-00 is engineered with unitized, molded coil design and waterproof E-Coils rated up to IP69K, ensuring durability and reliability even in harsh environmental conditions. It also boasts corrosion-resistant plating and a continuous-duty rated solenoid with a patented high-strength solenoid tube. The precision of the hardened spool and cage enhances its lifespan. Performance-wise, this valve is capable of handling pressure ratings up to 420 bar (6090 psi) and has a proof pressure of 690 bar (10000 psi), with burst pressure reaching up to 1380 bar (20000 psi). Its operational fluid temperature ranges can accommodate various seal types including Buna N seals from -40°C to +100°C (-40°F to +212°F), fluorocarbon seals from -26°C to +204°C (-15°F to +400°F), and urethane seals from -54°C to +107°C (-65°F to +225°F). The Hydraforce HSV10-47D-0-U-00 is designed for easy installation into standard cavities (HVC104) without orientation restrictions and supports multiple seal kit options suitable for different environmental conditions. This makes it an adaptable solution for diverse hydraulic applications requiring reliable directional control and robust performance under high-pressure operations.
