HYDRAFORCE
5436549V
$115.00 USD
- HYDRAFORCE
- Material:5436549V
- Model:FD56-45-0-V-49 FLOW DIVIDER
- Summary:FLOW DIVIDING / COMBINING VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

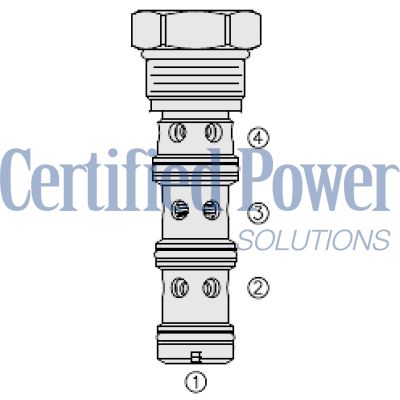

The Hydraforce 5436549V (5436549V) is a screw-in cartridge, spool type flow divider/combiner valve designated as the FD5645. This valve efficiently manages the proportional division of inlet flow or the combining of two return flows, ensuring consistent operation regardless of system pressure conditions. It features a pressure-compensated design that maintains synchronization in both dividing and combining modes, making it highly effective for applications requiring precise flow management. The FD5645 is built with hardened parts to enhance durability and ensure a long operational life. It also offers a quiet, modulated response to changes in flow or pressure, which contributes to smoother system performance. The valve's wide operating flow range allows for flexibility across various hydraulic applications. Additionally, its floating cage design supports high installation torque and utilizes an industry common cavity, facilitating compatibility and ease of installation in diverse hydraulic systems.
The Hydraforce 5436549V (5436549V) is a screw-in cartridge, spool type flow divider/combiner valve designated as the FD5645. This valve efficiently manages the proportional division of inlet flow or the combining of two return flows, ensuring consistent operation regardless of system pressure conditions. It features a pressure-compensated design that maintains synchronization in both dividing and combining modes, making it highly effective for applications requiring precise flow management. The FD5645 is built with hardened parts to enhance durability and ensure a long operational life. It also offers a quiet, modulated response to changes in flow or pressure, which contributes to smoother system performance. The valve's wide operating flow range allows for flexibility across various hydraulic applications. Additionally, its floating cage design supports high installation torque and utilizes an industry common cavity, facilitating compatibility and ease of installation in diverse hydraulic systems.
Unit weight:
0.38 kg (0.83 lb)
Internal wetted surface area:
403 cm² (62.4 in²)
| Ratings | Pressure Ratings Pressure rating: 345 bar (5000 psi) 420 bar (6090 psi) 10% duty cycle Pressure drop: 24 bar (300 psi) At maximum inlet flow Flow Ratings Inlet flow rating: 25 to 98 lpm (6.5 to 26.0 gpm) Model code 44 32 to 128 lpm (8.5 to 34.0 gpm) Model code 66 57 to 167 lpm (15.0 to 44.0 gpm) Model code 88 68 to 197 lpm (18.0 to 52.0 gpm) Model code 99 Synchronizing flow: Approximately 10% of maximum inlet flow Flow accuracy: 10 % Of inlet flow for -22, -33, -44, -55 and -66 models 15 % Of inlet flow for -88 and -99 models Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

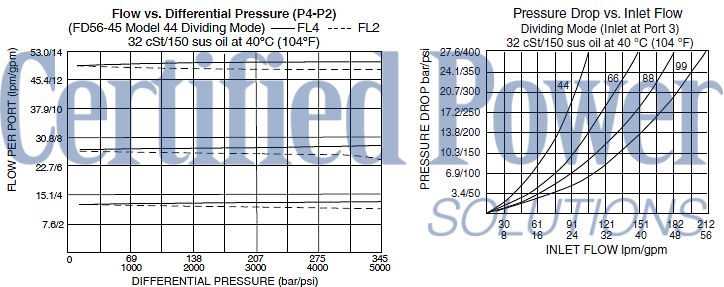

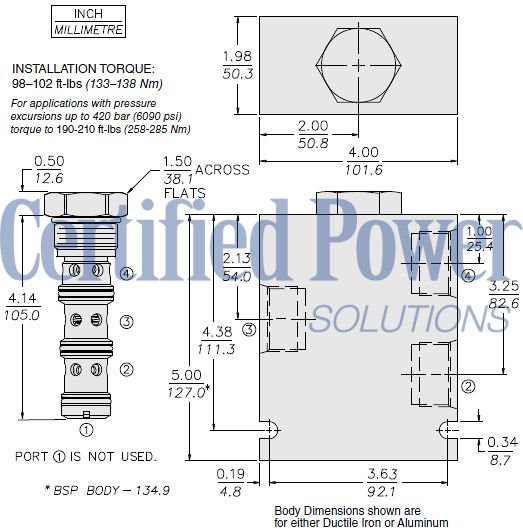

| Performance |  |
| Installation Specifications | Cavity:
VC16-4 HVC16-4 for applications with pressure excursions up to 420 bar (6090 psi) 16-size-4-way Cavities Cartridge installation torque: 133 to 138 N-m (98 to 102 ft-lb) 258 to 285 N-m (190 to 210 ft-lb) For applications with pressure excursions up to 6090 psi [420 bar] Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION FD56-45-H-J-N H Line Body H 0 No Body H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane N Flow Dividing/Combining N 11 Not listed in outline N 22 Not listed in outline N 33 Not listed in outline N 44 50/50 Rated at 25.0-98.0 lpm (6.5-26.0 gpm) N 55 Not listed in outline N 66 50/50 Rated at 32.0-34.0 lpm (8.5-34.0 gpm) N 77 Not listed in outline N 88 50/50 Rated at 57.0-167.0 lpm (15.0-44.0 gpm) N 99 50/50 Rated at 68.0-197.0 lpm (18.0-52.0 gpm) |
Seal kit:
SK16-4X-MMM
X = seal option; buna n, fluorocarbon, polyurethane
SK16-4U-OOO
Urethane
Seal kit installation instructions
Housings:
Available
16-4w valve bodies
