- Material:5436480
- Model:FD52-45-0-N-80 FLOW DIVIDER
- Summary:FLOW DIVIDING / COMBINING VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

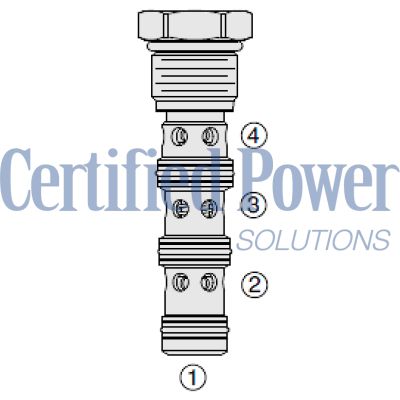

The Hydraforce 5436480 (5436480) is a screw-in cartridge, spool type flow divider/combiner valve designated as FD5245. This valve is designed for pressure-compensated proportional division of inlet flow or combining of two return flows, maintaining performance stability across varying system pressures. It excels in providing synchronized flow whether in dividing or combining modes, which is crucial for applications requiring precise flow management. The FD5245 features hardened parts to ensure durability and longevity, even under rigorous conditions. It also boasts a quiet, modulated response that enhances operational smoothness. With its wide operating flow range, the FD5245 offers versatility across different applications. Additionally, the floating cage design allows high installation torque and the industry-common cavity ensures compatibility with standard configurations in fluid power systems. This combination of features makes the Hydraforce 5436480 an efficient solution for managing hydraulic flows in specialized equipment.
The Hydraforce 5436480 (5436480) is a screw-in cartridge, spool type flow divider/combiner valve designated as FD5245. This valve is designed for pressure-compensated proportional division of inlet flow or combining of two return flows, maintaining performance stability across varying system pressures. It excels in providing synchronized flow whether in dividing or combining modes, which is crucial for applications requiring precise flow management. The FD5245 features hardened parts to ensure durability and longevity, even under rigorous conditions. It also boasts a quiet, modulated response that enhances operational smoothness. With its wide operating flow range, the FD5245 offers versatility across different applications. Additionally, the floating cage design allows high installation torque and the industry-common cavity ensures compatibility with standard configurations in fluid power systems. This combination of features makes the Hydraforce 5436480 an efficient solution for managing hydraulic flows in specialized equipment.
Unit weight:
0.24 kg (0.53 lb)
Internal wetted surface area:
238 cm² (43.8 in²)
| Ratings | Pressure Ratings Pressure rating: 345 bar (5000 psi) 420 bar (6090 psi) 10% duty cycle Pressure drop: 20.5 bar (300 psi) At maximum inlet flow Flow Ratings Inlet flow rating: 15 to 60 lpm (4.0 to 16.0 gpm) Model code 44 23 to 90 lpm (6.0 to 24.0 gpm) Model code 66 30 to 106 lpm (8.0 to 28.0 gpm) Model code 88 Synchronizing flow: Approximately 10% of maximum inlet flow Flow accuracy: 10 % Of inlet flow for -44 and -66 models 15 % Of inlet flow for -88 models Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gfd52-45) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC12-4 HVC12-4 for applications with pressure excursions up to 420 bar (6090 psi) 12-size-4-way Cavities Cartridge installation torque: 99 to 104 N-m (73 to 77 ft-lb) 156 to 169 N-m (115 to 125 ft-lb) For applications with pressure excursions up to applications with pressure excursions up to 6090 psi [420 bar] Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION FD52-45-H-J-N H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane N Flow Dividing/Combining N 22 Not listed in outline N 33 Not listed in outline N 44 50/50 Rated at 15.0-60.0 lpm (6.0-24.0 gpm) N 55 Not listed in outline N 66 50/50 Rated at 23.0-90.0 lpm (6.0-24.0 gpm) N 88 50/50 Rated at 30.0-106.0 lpm (8.0-28.0 gpm) |
Seal kit:
SK12-4X-MMM (x=seal option)
X=seal option
Seal kit installation instructions
Housings:
Available
12-4w valve bodies
