HYDRAFORCE
5436463
$100.00 USD
- HYDRAFORCE
- Material:5436463
- Model:FD52-45-0-N-63 FLOW DIVIDER
- Summary:FLOW DIVIDING / COMBINING VALVE
Quantity in stock: 1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce FD52-45-0-N-63 (5436463) is a screw-in cartridge, spool-type flow divider/combiner valve designed for advanced hydraulic systems requiring reliable flow management. This model operates by pressure-compensated proportional division of inlet flow or combining of two return flows, maintaining efficiency and performance regardless of system pressure variations. It offers a synchronizing flow in both dividing and combining modes, which is crucial for applications requiring precise motion control and fluid synchronization. The FD52-45-0-N-63 features hardened parts to ensure extended durability and a quiet, modulated response that contributes to the overall system stability. It supports a wide operating flow range, making it versatile for different hydraulic needs. The valve's design includes a floating cage that allows high installation torque and uses an industry-common cavity (VC124 or HVC124), facilitating easy installation and compatibility with existing systems. Key specifications include a pressure rating up to 6090 psi during 10% duty cycles, with a maximum inlet flow rate between 15 to 106 lpm depending on the specific model code variations (44, 66, or 88). It ensures flow accuracy within ±10% for models 44 and 66, and ±15% for model 88. The valve operates effectively within fluid temperatures ranging from -40°C to +100°C with various seal options accommodating different environmental conditions. This valve is suited for diverse applications where precise fluid control is essential such as in mobile hydraulics, industrial machinery, and any system where space efficiency combined with high performance is required. Its robust construction and operational features make it an excellent choice for both new installations and maintenance upgrades in complex hydraulic systems.
The Hydraforce FD52-45-0-N-63 (5436463) is a screw-in cartridge, spool-type flow divider/combiner valve designed for advanced hydraulic systems requiring reliable flow management. This model operates by pressure-compensated proportional division of inlet flow or combining of two return flows, maintaining efficiency and performance regardless of system pressure variations. It offers a synchronizing flow in both dividing and combining modes, which is crucial for applications requiring precise motion control and fluid synchronization. The FD52-45-0-N-63 features hardened parts to ensure extended durability and a quiet, modulated response that contributes to the overall system stability. It supports a wide operating flow range, making it versatile for different hydraulic needs. The valve's design includes a floating cage that allows high installation torque and uses an industry-common cavity (VC124 or HVC124), facilitating easy installation and compatibility with existing systems. Key specifications include a pressure rating up to 6090 psi during 10% duty cycles, with a maximum inlet flow rate between 15 to 106 lpm depending on the specific model code variations (44, 66, or 88). It ensures flow accuracy within ±10% for models 44 and 66, and ±15% for model 88. The valve operates effectively within fluid temperatures ranging from -40°C to +100°C with various seal options accommodating different environmental conditions. This valve is suited for diverse applications where precise fluid control is essential such as in mobile hydraulics, industrial machinery, and any system where space efficiency combined with high performance is required. Its robust construction and operational features make it an excellent choice for both new installations and maintenance upgrades in complex hydraulic systems.
Unit weight:
0.24 kg (0.53 lb)
Internal wetted surface area:
238 cm² (43.8 in²)
| Ratings | Pressure Ratings Pressure rating: 345 bar (5000 psi) 420 bar (6090 psi) 10% duty cycle Pressure drop: 20.5 bar (300 psi) At maximum inlet flow Flow Ratings Inlet flow rating: 15 to 60 lpm (4.0 to 16.0 gpm) Model code 44 23 to 90 lpm (6.0 to 24.0 gpm) Model code 66 30 to 106 lpm (8.0 to 28.0 gpm) Model code 88 Synchronizing flow: Approximately 10% of maximum inlet flow Flow accuracy: 10 % Of inlet flow for -44 and -66 models 15 % Of inlet flow for -88 models Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gfd52-45) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

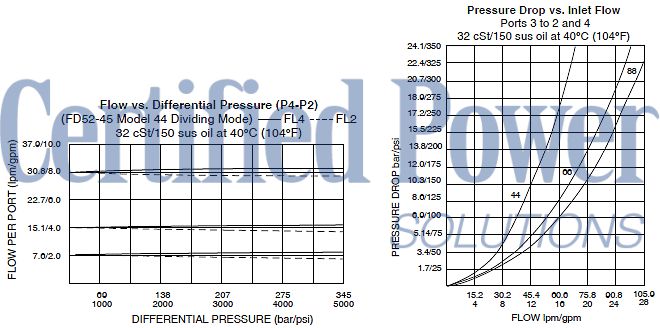

| Performance |  |
| Installation Specifications | Cavity:
VC12-4 HVC12-4 for applications with pressure excursions up to 420 bar (6090 psi) 12-size-4-way Cavities Cartridge installation torque: 99 to 104 N-m (73 to 77 ft-lb) 156 to 169 N-m (115 to 125 ft-lb) For applications with pressure excursions up to applications with pressure excursions up to 6090 psi [420 bar] Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION FD52-45-H-J-N H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane N Flow Dividing/Combining N 22 Not listed in outline N 33 Not listed in outline N 44 50/50 Rated at 15.0-60.0 lpm (6.0-24.0 gpm) N 55 Not listed in outline N 66 50/50 Rated at 23.0-90.0 lpm (6.0-24.0 gpm) N 88 50/50 Rated at 30.0-106.0 lpm (8.0-28.0 gpm) |
Seal kit:
SK12-4X-MMM (x=seal option)
X=seal option
Seal kit installation instructions
Housings:
Available
12-4w valve bodies
