EC12-32-0-N-110
5428449
$76.50 USD
- HYDRAFORCE
- Material:5428449
- Model:EC12-32-0-N-110 COMPENSATOR
- Summary:FLOW ON DEMAND PRESSURE COMPENSATING ELEMENT WITH STATIC LOAD SENSE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce EC12-32-0-N-110 (5428449) is a high-performance, screw-in, cartridge-style hydraulic valve designed for sophisticated flow control in hydraulic systems. This model is particularly noted for its load sense and flow on demand capabilities, ensuring efficient operation by delivering the required flow at port 3 regardless of load pressure sensed at port 1. A key feature includes a recommended 0.53 mm orifice installed in the load sense line at port 1 to enhance stability. This valve offers versatile pressure compensating adjustments with multiple spring options, supporting different compensating pressures including 5.5 bar (80 psi), 7.6 bar (110 psi), 11.0 bar (160 psi), and 15.2 bar (220 psi). These adjustments allow for maximum flow rates ranging from 57 lpm (15 gpm) up to 114 lpm (30 gpm). It boasts a robust design with hardened parts for extended durability and quiet, modulated response to operational changes. The EC12-32-0-N-110 operates effectively within a temperature range of -40 to +100°C (-40 to +212°F) with standard Buna N seals, and can handle more extreme temperatures with alternative seal materials like fluorocarbon or polyurethane. It also features excellent corrosion protection with up to 960 hours of salt spray resistance as per ASTM B117. Hydraulic fluid compatibility includes mineral-based or synthetic types with lubricating properties, accommodating a broad viscosity range from 7.4 to 420 cSt. This valve ensures reliability even under high contamination levels up to ISO cleanliness code of 18/16/13. Installation specifications are straightforward due to its industry-common cavity VC123 configuration, requiring no specific orientation and allowing easy integration into various hydraulic systems. The EC12-32-0-N-110 is also complemented by accessories such as customizable seal kits and various valve body housings, enhancing its adaptability across different applications.
The Hydraforce EC12-32-0-N-110 (5428449) is a high-performance, screw-in, cartridge-style hydraulic valve designed for sophisticated flow control in hydraulic systems. This model is particularly noted for its load sense and flow on demand capabilities, ensuring efficient operation by delivering the required flow at port 3 regardless of load pressure sensed at port 1. A key feature includes a recommended 0.53 mm orifice installed in the load sense line at port 1 to enhance stability. This valve offers versatile pressure compensating adjustments with multiple spring options, supporting different compensating pressures including 5.5 bar (80 psi), 7.6 bar (110 psi), 11.0 bar (160 psi), and 15.2 bar (220 psi). These adjustments allow for maximum flow rates ranging from 57 lpm (15 gpm) up to 114 lpm (30 gpm). It boasts a robust design with hardened parts for extended durability and quiet, modulated response to operational changes. The EC12-32-0-N-110 operates effectively within a temperature range of -40 to +100°C (-40 to +212°F) with standard Buna N seals, and can handle more extreme temperatures with alternative seal materials like fluorocarbon or polyurethane. It also features excellent corrosion protection with up to 960 hours of salt spray resistance as per ASTM B117. Hydraulic fluid compatibility includes mineral-based or synthetic types with lubricating properties, accommodating a broad viscosity range from 7.4 to 420 cSt. This valve ensures reliability even under high contamination levels up to ISO cleanliness code of 18/16/13. Installation specifications are straightforward due to its industry-common cavity VC123 configuration, requiring no specific orientation and allowing easy integration into various hydraulic systems. The EC12-32-0-N-110 is also complemented by accessories such as customizable seal kits and various valve body housings, enhancing its adaptability across different applications.

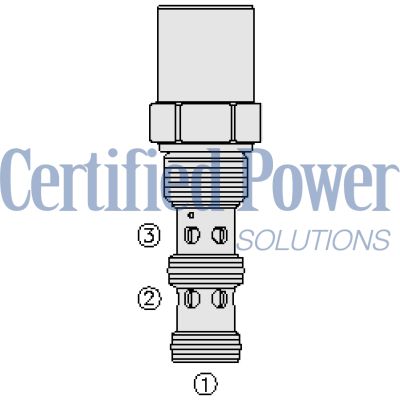

Description EC12-32 is a screw-in, cartridge style, load sense, flow on demand, pressure compensator valve. Operation With inlet flow at port 2, the EC12-32 will deliver required flow at port 3 regardless of load pressure sensed at port 1. note: 0.53 mm 0.021inorifice is recommended to be installed in load sense line at port 1 for better stability. Features Choice of compensator springs Hardened parts for long life. Quiet, modulated response. Industry-common cavity.
Unit weight:
0.39 kg (0.87 lb)
Internal wetted surface area:
258.4 cm² (40.05 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: 57 lpm (15.0 gpm) With 5.5 bar (80 psi)compensating spring 76 lpm (20.0 gpm) With 7.6 bar (110 psi)compensating spring 83 lpm (22.0 gpm) With 11.0 bar (160 psi)compensating spring 114 lpm (30.0 gpm) With 15.2 bar (220 psi)compensating spring Maximum internal leakage: 49 ml/min (3.0 in³/min) At port 1 with 241 bar (3500 psi) at port 2 (port 3 blocked) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gec12-32) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC12-3 12-size-3-way Cavities Cartridge installation torque: 45 to 50 N-m (33 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION EC12-32-H-J-R H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Compensator Spring R 80 80 Compensator Spring R 160 160 Compensator Spring R 220 220 Compensator Spring |
Seal kit:
SK12-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
