- Model:EC12-30-0-N-100 COMPENSATOR
- Summary:FLOW ON DEMAND PRESSURE COMPENSATING ELEMENT WITH STATIC LOAD SENSE
Quantity in stock: 0
The Hydraforce 5428401 (5428401) is a precision-engineered screw-in cartridge style pressure compensator element designed for advanced hydraulic systems. This model ensures a consistent flow rate from port 2, irrespective of varying load pressures in the downstream circuit. It effectively maintains a constant differential pressure from circuit point P to port 3, as indicated in its operational symbol, facilitating reliable and efficient regulation of hydraulic flow between these two points. The EC1230 model is particularly noted for its durability and performance reliability, thanks to its hardened components which are crafted to extend service life even under rigorous conditions. Additionally, it features a quiet and modulated response that enhances the operational smoothness of the hydraulic systems it is integrated with. Its industry-common cavity design allows for broad compatibility and ease of integration with existing hydraulic setups, making it a versatile choice for various applications requiring precise flow regulation and pressure compensation.

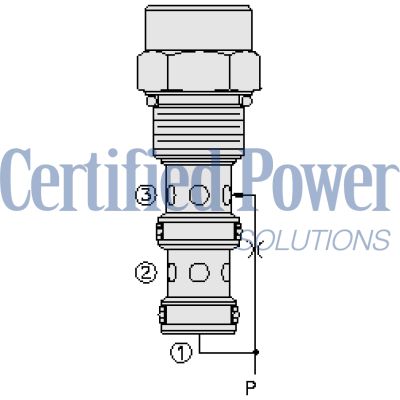

Description EC12-30 is a screw-in cartridge style pressure compensator element, intended for use with remote fixed or variable orifice to yield a two port type, pressure compensated, flow regulating hydraulic valve. Operation This valve maintains a constant flow rate from port 2 regardless of load pressure changes in the circuit downstream of port 2. This valve maintains a constant differential pressure from circuit point P to port 3 (see symbol), thereby regulating the hydraulic flow rate between the two points in the circuit. Features Hardened parts for long life. Quiet, modulated response. Industry-common cavity.
Unit weight:
0.30 kg (0.66 lb)
Internal wetted surface area:
227.6 cm² (35.28 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: 37.9 lpm (10.0 gpm) With 6.9 bar (100 psi)compensating spring 56.8 lpm (15.0 gpm) With 11.0 bar (160 psi)compensating spring Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:

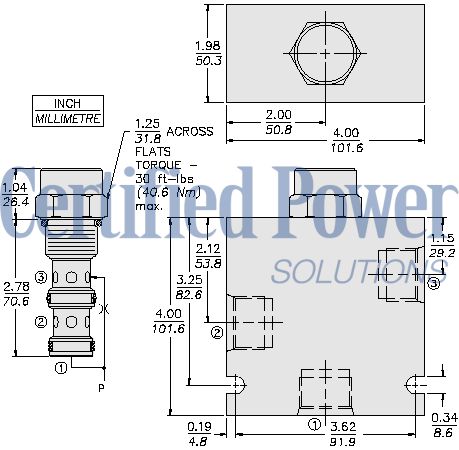

VC12-3 12-size-3-way Cavities Cartridge installation torque: 45 to 50 N-m (33 to 37 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION EC12-30-H-J-R H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Compensator Spring R 100 100 Compensator Spring R 160 160 Compensator Spring |
Seal kit:
SK12-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
