HYDRAFORCE
5413642

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

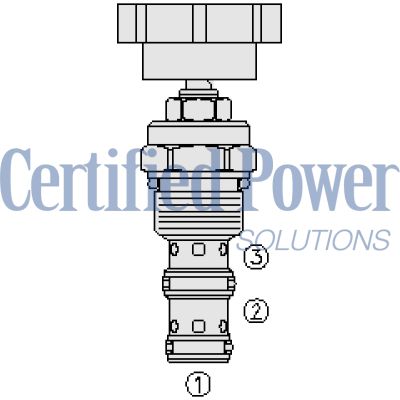

The Hydraforce FR10-39E-8T-N (5413642) is an advanced adjustable, pressure-compensated flow control valve that offers versatile functionality and robust performance in hydraulic systems. Designed for precision, this valve can operate as either a priority type flow regulator or a restrictive type, 2-way flow regulator when the bypass line port 2 is blocked. It ensures consistent regulated flow despite pressure variations at the regulated or bypass port, with the ability to adjust the flow from closed to fully open through clockwise rotation of its adjusting screw. This model boasts several key features including the capacity for full pressurization of bypass port 2, fine low-torque adjustment for precise control, and hardened steel parts that ensure durability and long life. The FR10-39E-8T-N also provides a quiet and modulated response which is crucial for maintaining system stability and efficiency. It fits industry-common cavity VC103, making it highly compatible with existing setups. The valve supports a wide range of operating parameters including a pressure rating up to 3500 psi and flow ratings up to 15 gpm depending on configuration (2-ported or 3-ported). It accommodates mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Temperature tolerance varies with seal material ranging from -40°F to +400°F, allowing it to operate effectively under diverse environmental conditions. With additional options like various seal kits (SK103XMM) and compatible housings (103W valve bodies), the FR10-39E-8T-N is adaptable for specific requirements and applications in hydraulic systems demanding reliable pressure and flow management.
