HYDRAFORCE
5404009
$32.75 USD
- HYDRAFORCE
- Material:5404009
- Model:FC08-20F-0-N-F10 FLOW CONTROL
- Summary:FLOW CONTROL VALVE WITH REVERSE FLOW CHECK
Quantity in stock: 1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

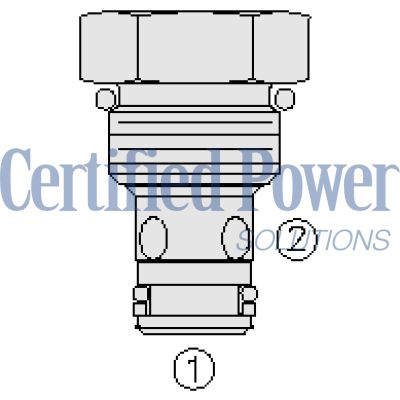

The Hydraforce FC08-20F-0-N-F10 (5404009) is a high-performance flow control valve with reverse flow check capabilities, designed for hydraulic applications requiring precise flow regulation and fluid control. The valve functions primarily as a restrictor in the 2 to 1 direction while facilitating free flow from the 1 to 2 path, making it versatile in managing directional fluid dynamics. Its construction includes a hardened spool and cage, ensuring durability and longevity even under rigorous conditions. This model boasts significant pressure handling capabilities with a maximum pressure rating of 3500 psi, proof pressure of 5000 psi, and an impressive burst pressure of 13000 psi. It supports a wide range of operating temperatures: from -40 to +212 degrees Fahrenheit with standard Buna N seals, up to +400 degrees Fahrenheit with fluorocarbon seals, and between +65 to +225 degrees Fahrenheit when equipped with polyurethane seals. This range ensures operational reliability across diverse environmental conditions. The FC08-20F-0-N-F10 is engineered for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties, accommodating fluid viscosities from 7.4 to 420 cSt. It maintains performance integrity up to a maximum operating contamination level as specified by ISO4406 standards. The unit's compact design and industry-standard cavity (VC082) facilitate easy installation without orientation restrictions, supporting various system configurations with adjustable torque settings for cartridge installation ranging from 18 to 20 ft-lb. Overall, the Hydraforce FC08-20F-0-N-F10 offers robust construction and flexible application options ideal for systems requiring reliable flow control and check functionalities within hydraulic circuits.
The Hydraforce FC08-20F-0-N-F10 (5404009) is a high-performance flow control valve with reverse flow check capabilities, designed for hydraulic applications requiring precise flow regulation and fluid control. The valve functions primarily as a restrictor in the 2 to 1 direction while facilitating free flow from the 1 to 2 path, making it versatile in managing directional fluid dynamics. Its construction includes a hardened spool and cage, ensuring durability and longevity even under rigorous conditions. This model boasts significant pressure handling capabilities with a maximum pressure rating of 3500 psi, proof pressure of 5000 psi, and an impressive burst pressure of 13000 psi. It supports a wide range of operating temperatures: from -40 to +212 degrees Fahrenheit with standard Buna N seals, up to +400 degrees Fahrenheit with fluorocarbon seals, and between +65 to +225 degrees Fahrenheit when equipped with polyurethane seals. This range ensures operational reliability across diverse environmental conditions. The FC08-20F-0-N-F10 is engineered for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties, accommodating fluid viscosities from 7.4 to 420 cSt. It maintains performance integrity up to a maximum operating contamination level as specified by ISO4406 standards. The unit's compact design and industry-standard cavity (VC082) facilitate easy installation without orientation restrictions, supporting various system configurations with adjustable torque settings for cartridge installation ranging from 18 to 20 ft-lb. Overall, the Hydraforce FC08-20F-0-N-F10 offers robust construction and flexible application options ideal for systems requiring reliable flow control and check functionalities within hydraulic circuits.
Unit weight:
0.10 kg (0.20 lb)
Internal wetted surface area:
206 cm² (31.9 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: See performance graph Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per iso4406 |

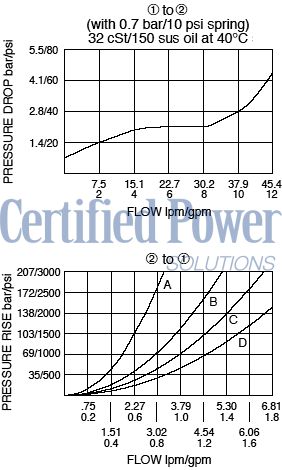

| Performance |  |

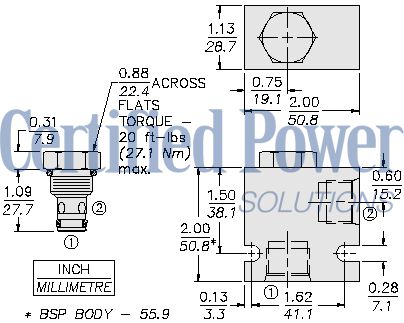

| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 24.5 to 27.2 N-m (18 to 20 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION FC08-20F-H-J-PR H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane P Equivalent Orifice Size P A 0.030 in P B 0.033 in P C 0.038 in P D 0.042 in P E 0.053 in P F 0.056 in P G 0. 47 in P H 0. 28 in R Spring Value R 10 0.7 bar (10 psi) |
Seal kit:
SK08-2X-T (x = seal option)
X = seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
