HYDRAFORCE
5282701

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

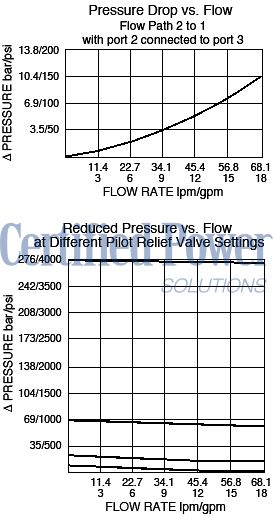

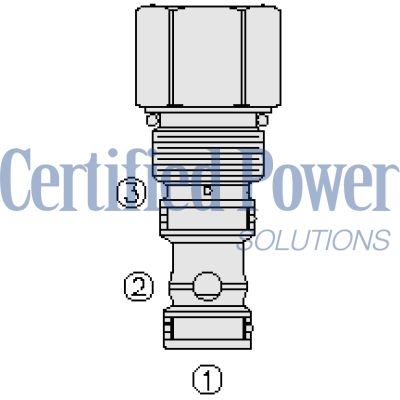

The Hydraforce 5282701 (5282701) is a screw-in, cartridge-style, spool-type, spring-biased, pressure-reducing logic element designed for hydraulic applications requiring controlled pressure management. This model operates effectively when combined with a pilot relief valve connected to port 3. The ER10S30 configuration ensures that the outlet port 1 is linked to the spring chamber and port 3 through an orifice within the spool. In its default state, with the pilot relief valve closed, this pressure-reducing element remains fully open allowing for minimal pressure drop as oil flows from inlet at port 2 to outlet at port 1. Upon reaching a preset pressure at port 1, the spool shifts strategically to increase the pressure drop between ports 2 and 1. This action effectively reduces and maintains the pressure at port 1 equal to the preset pilot pressure at port 3. Key features of this model include its spring-biased mechanism and hardened spool and cage which ensure durability and longevity under rigorous conditions. Additionally, it offers an option for corrosion-resistant plating, enhancing its suitability for diverse operating environments. The Hydraforce 5282701 fits industry-common size specifications, making it versatile for integration into various hydraulic systems without requiring unique accommodations.
