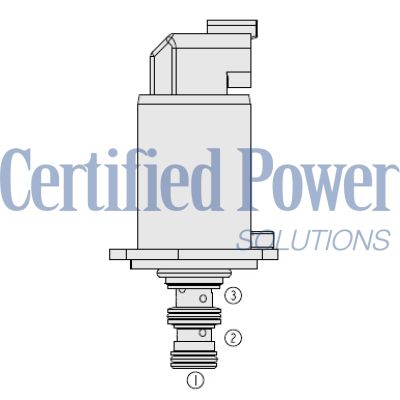

HYDRAFORCE
5278616
$51.00 USD
- HYDRAFORCE
- Material:5278616
- Model:EHPR98-G35-0-G-12EY2A PROPORTIONAL
- Summary:PROPORTIONAL PRESSURE REDUCING / RELIEVING CARTRIDGE VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5278616 (5278616) is a state-of-the-art hydraulic component designed for sophisticated fluid power applications. This model, known as the EHPR98G35, is a third-generation, direct-acting, spool-type, proportional pressure reducing/relieving valve. It stands out in the HydraForce line for its compact design and efficient performance, making it ideal for integration into various hydraulic systems with minimal spatial requirements. This valve operates effectively with both mineral-based and synthetic hydraulic fluids that possess lubricating properties. The EHPR98G35 features an integral coil which is crucial to its operation but is not serviceable, emphasizing the need for precision in handling and installation. The regulated pressure of this valve correlates directly with the input electrical current within specified pressure ranges, ensuring precise control over hydraulic system operations. Key attributes of the EHPR98G35 include its economical drop-in style which facilitates easy installation and replacement. It also offers options such as a mounting plate for enhanced stability and compatibility with existing systems. This model serves as a retrofit option for the EHPR98T35, providing versatility in upgrading older systems or replacing parts without extensive modifications. Additional practical features include a quick response time to changes in input signals, an inlet screen that protects against particulate contamination, multiple pressure options to suit varying operational requirements, and a top-mounted connector for simplified electrical integration. Furthermore, it boasts low leakage characteristics which enhance the overall efficiency and reliability of the hydraulic system it is part of.
The Hydraforce 5278616 (5278616) is a state-of-the-art hydraulic component designed for sophisticated fluid power applications. This model, known as the EHPR98G35, is a third-generation, direct-acting, spool-type, proportional pressure reducing/relieving valve. It stands out in the HydraForce line for its compact design and efficient performance, making it ideal for integration into various hydraulic systems with minimal spatial requirements. This valve operates effectively with both mineral-based and synthetic hydraulic fluids that possess lubricating properties. The EHPR98G35 features an integral coil which is crucial to its operation but is not serviceable, emphasizing the need for precision in handling and installation. The regulated pressure of this valve correlates directly with the input electrical current within specified pressure ranges, ensuring precise control over hydraulic system operations. Key attributes of the EHPR98G35 include its economical drop-in style which facilitates easy installation and replacement. It also offers options such as a mounting plate for enhanced stability and compatibility with existing systems. This model serves as a retrofit option for the EHPR98T35, providing versatility in upgrading older systems or replacing parts without extensive modifications. Additional practical features include a quick response time to changes in input signals, an inlet screen that protects against particulate contamination, multiple pressure options to suit varying operational requirements, and a top-mounted connector for simplified electrical integration. Furthermore, it boasts low leakage characteristics which enhance the overall efficiency and reliability of the hydraulic system it is part of.
Unit weight:
0.26 kg (0.57 lb)
Internal wetted surface area:
90 cm² (14 in²)
| Ratings | Pressure Ratings Pressure rating: 103 bar (1500 psi) Port 2 45 bar (650 psi) Port 1 34.5 bar (500 psi) Port 3 Proof pressure: 54 bar (780 psi) Port 3 345 bar (5000 psi) Ports 1 and 2 Burst pressure: 258 bar (3750 psi) All ports pressurized Control pressure at maximum control current: 20 bar (290 psi) Flow Ratings Flow rating: 6 lpm (1.6 gpm) Maximum internal leakage: 45 ml/min (2.7 in³/min) EHPR98-G35 at 24 bar (350 psi) 15 ml/min (1.0 in³/min) EHPR98-G35F at 24 bar (350 psi) Hysteresis: 4 % PWM Other Ratings Cycle life: 10 million cycles Environmental rating: IP69K Corrosion protection: 960 hour salt spray per ASTM B117 Temperature Ratings Operating fluid temperature: -40 to 149 °C (-40 to 300 °F) With HNBR seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 158 °F) Ambient temperature: -40 to 80 °C (-40 to 176 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt |
| Electrical Parameters | Maximum control current:
1.130 A Coil 10 V 0.940 A Coil 12 V 0.780 A Coil 14 V 0.565 A Coil 20 V 0.470 A Coil 24 V 0.390 A Coil 28 V Dither PWM frequency: 120 Hz EHPR98-G35 150 Hz EHPR98-G35F Coil resistance: 4.83 ohm Coil 10 V 7.28 ohm Coil 12 V 10.05 ohm Coil 14 V 18.35 ohm Coil 20 V 29.54 ohm Coil 24 V 40.36 ohm Coil 28 V Valve inductance: 68 mH Coil 10 V 104 mH Coil 12 V 152 mH Coil 14 V 284 mH Coil 20 V 433 mH Coil 24 V 645 mH Coil 28 V |

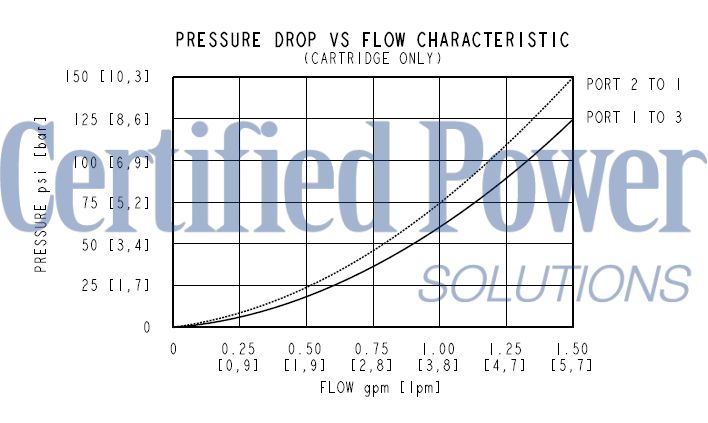

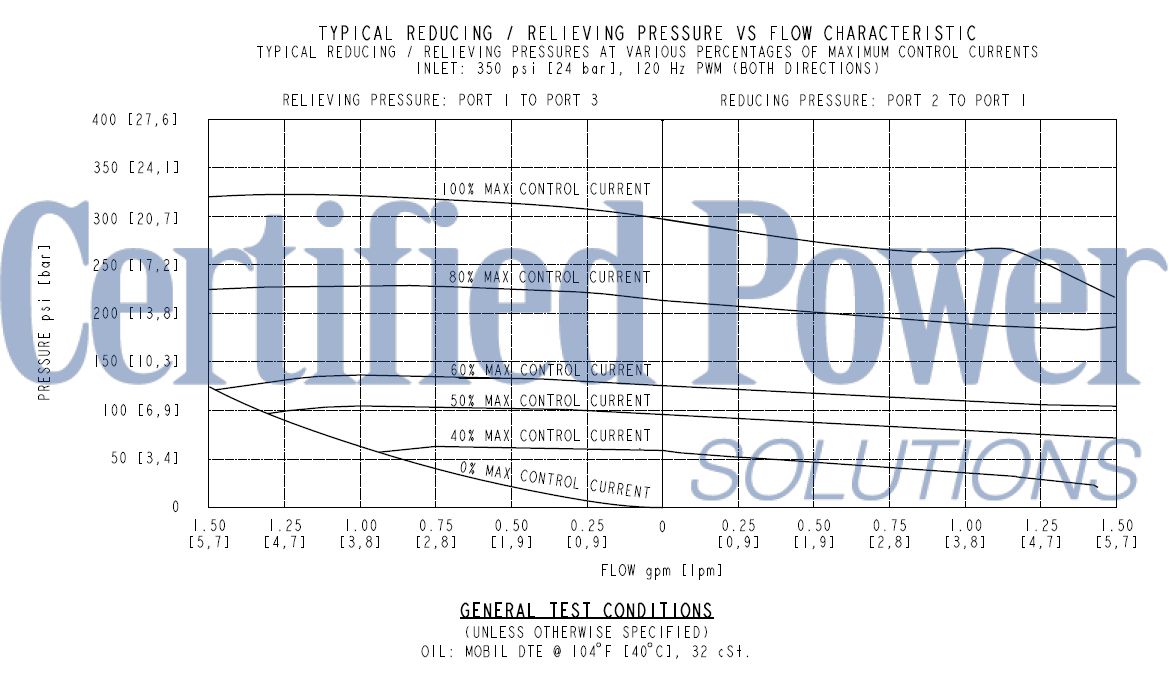

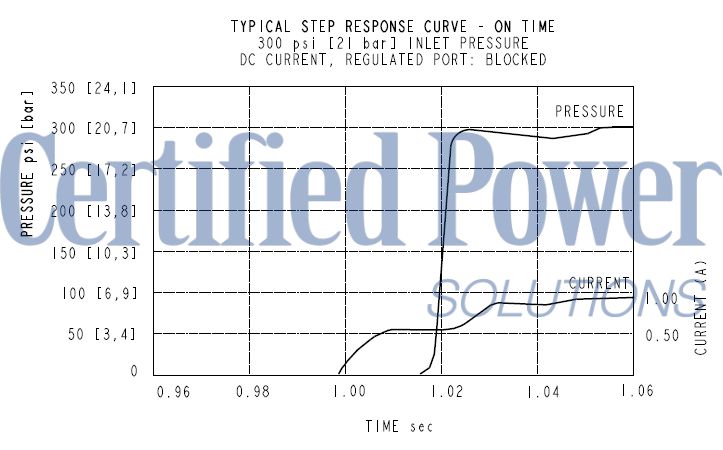

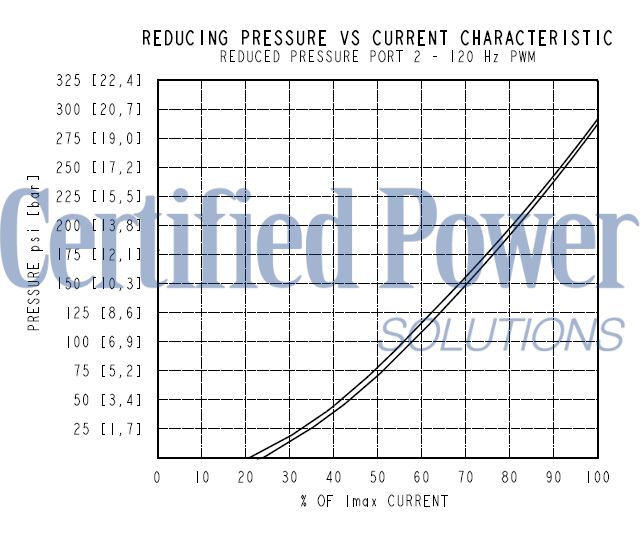

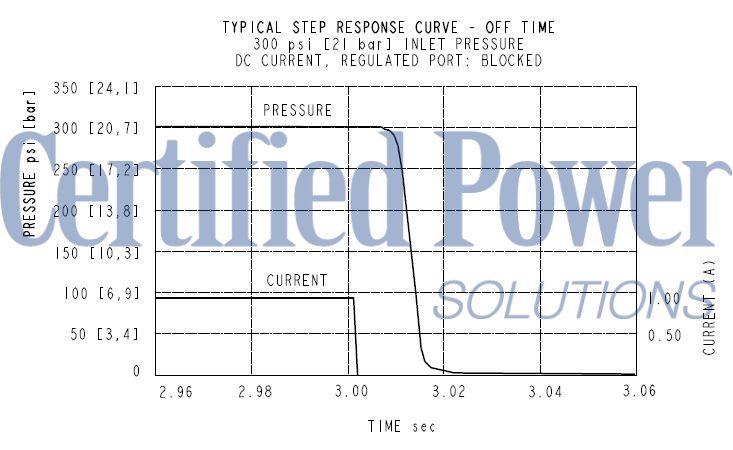

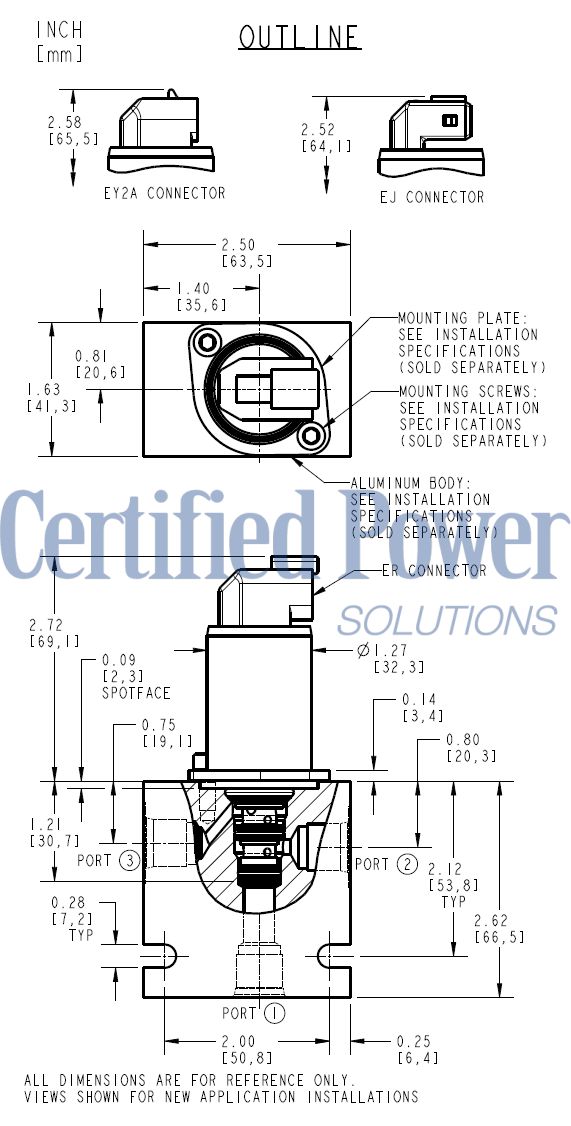

| Performance |      |
| Installation Specifications | Cavity:
VC-G027 Standard configuration Drop-in cavities Installation type: Flange mounted Orientation restriction: None Mounting screw torque: 3 to 4 N-m (2.2 to 3.0 ft-lb) For standard VC-G027 Cavity 1.2 to 1.5 N-m (0.9 to 1.1 ft-lb) For retrofit VC-T009 Cavity Note: For retro-fitting into older drop-in cavities and other mounting options, see "Mounting-options-for-G3-valves" technical reference Mounting options for G3 Valves |
| Order Code | NOTE: *The fast responding plunger is typically used in pilot applications with increased volume at the control port. Minimum volume at the control port may cause the valve to become unstable. consult factory for application assistance when selecting this option. POSITION CODE DESCRIPTION EHPR98-G35DG-H-J-KL-U D Plunger Option D BLANK Standard D F Fast responding G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body J Seal J G HNBR (Hydrogenated Nitrile Butadiene Rubber) J V Fluorocarbon J P Polyurethane K Coil Voltage K 10 10 VDC K 12 12 VDC K 14 14 VDC K 20 20 VDC K 24 24 VDC K 28 28 VDC L Coil Termination L EJ E-Coil, AMP Jr. L ER E-Coil, Deutsch L EY2A E-Coil, Metri-Pack 150.2 U Mounting Plate U BLANK None U G Standard Single Valve Plate U T Retro-Fit Plate |
Mounting plate:
HF P/N 4595096
Use with standard VC-G027 cavity
HF P/N 4210226
Use with retrofit VC-T009 cavity
Mounting screw:
M5 x 0,8 x 12 mm long, HF P/N: 4002609 (sold separately)
Use with standard VC-G027 cavity
M4 x 0.7 x 12 mm long, HF P/N: 4001015 (sold separately)
Use with retrofit VC-T009 cavity
Seal kit:
SK-G027-X
X=seal option
Seal kit installation instructions
Ported test body:
HF P/N: 71611X0
