HYDRAFORCE
5267003
$188.25 USD
- HYDRAFORCE
- Material:5267003
- Model:PD42-M40-0-NS-160 PILOTED 3-WAY
- Summary:PILOTED DIRECTIONAL VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

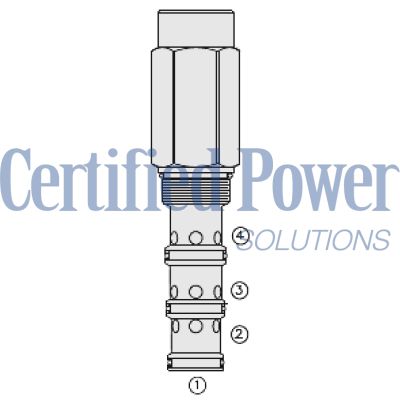

The Hydraforce PD42-M40-0-NS-160 (5267003) is a high-performance, screw-in, cartridge-style, pilot-operated, spool-type hydraulic directional valve designed for three-way circuits that require remote hydraulic pilot actuation. This valve operates in a neutral, unpiloted position allowing bidirectional flow from port 3 to port 2 while blocking flow at port 4. Upon receiving a remote pilot signal at port 1, the valve shifts to open the flow from port 3 to port 4 and simultaneously blocks port 2. The design includes a vent-to-atmosphere spring chamber which is internally O-ring sealed from the cartridge flow paths, ensuring that the valve can be fully pressurized at any port without influencing the required pilot pressure. Constructed for durability and reliability, the PD42-M40-0-NS-160 features a hardened spool and cage which prolongs its operational life. It is compatible with industry-common ISO cavity VC42M4 and offers flexibility in installation with no orientation restrictions and an installation torque ranging from 89 to 102 Nm. This model supports various seal kits including Buna N, Fluorocarbon, Polyurethane, and Urethane options ensuring adaptability to different environmental conditions. The valve operates efficiently within a temperature range of -40°C to +100°C with Buna N seals, and can handle higher temperatures up to +204°C with Fluorocarbon seals. It is designed for use with mineral-based or synthetic hydraulic fluids that have lubricating properties within a viscosity range of 7.4 to 420 cSt. The maximum operating contamination level is rated at 20/18/14 per ISO 4406 ensuring clean operation critical for system integrity and longevity. With a maximum flow rating of 265 lpm (70 gpm) and pressure rating up to 345 bar (5000 psi), this valve is capable of handling substantial hydraulic loads making it suitable for various heavy-duty applications where precise fluid control is essential.
The Hydraforce PD42-M40-0-NS-160 (5267003) is a high-performance, screw-in, cartridge-style, pilot-operated, spool-type hydraulic directional valve designed for three-way circuits that require remote hydraulic pilot actuation. This valve operates in a neutral, unpiloted position allowing bidirectional flow from port 3 to port 2 while blocking flow at port 4. Upon receiving a remote pilot signal at port 1, the valve shifts to open the flow from port 3 to port 4 and simultaneously blocks port 2. The design includes a vent-to-atmosphere spring chamber which is internally O-ring sealed from the cartridge flow paths, ensuring that the valve can be fully pressurized at any port without influencing the required pilot pressure. Constructed for durability and reliability, the PD42-M40-0-NS-160 features a hardened spool and cage which prolongs its operational life. It is compatible with industry-common ISO cavity VC42M4 and offers flexibility in installation with no orientation restrictions and an installation torque ranging from 89 to 102 Nm. This model supports various seal kits including Buna N, Fluorocarbon, Polyurethane, and Urethane options ensuring adaptability to different environmental conditions. The valve operates efficiently within a temperature range of -40°C to +100°C with Buna N seals, and can handle higher temperatures up to +204°C with Fluorocarbon seals. It is designed for use with mineral-based or synthetic hydraulic fluids that have lubricating properties within a viscosity range of 7.4 to 420 cSt. The maximum operating contamination level is rated at 20/18/14 per ISO 4406 ensuring clean operation critical for system integrity and longevity. With a maximum flow rating of 265 lpm (70 gpm) and pressure rating up to 345 bar (5000 psi), this valve is capable of handling substantial hydraulic loads making it suitable for various heavy-duty applications where precise fluid control is essential.
Unit weight:
1.8 kg (4.0 lb)
Internal wetted surface area:
817 cm² (126.7 in²)
| Ratings | Pressure Ratings Pressure rating: 345 bar (5000 psi) Flow Ratings Flow rating: 265 lpm (70 gpm) Maximum internal leakage: 245 ml/min (15 in³/min) At 345 bar (5000 psi) 0 lpm (0 gpm) From port 1 and 2 with sealed spool Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

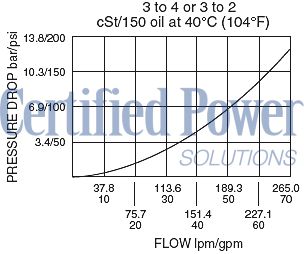

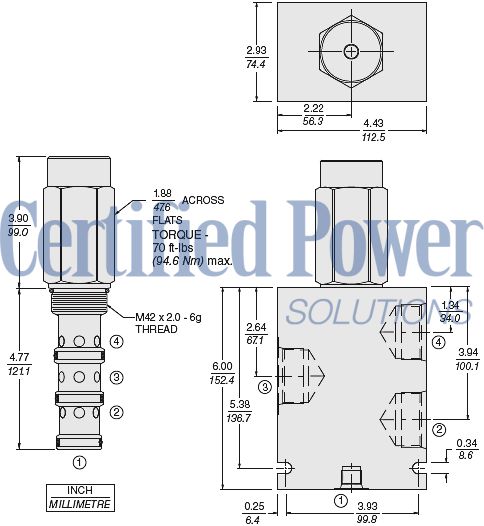

| Performance |  |
| Installation Specifications | Cavity:
VC42-M4 42-size-4-way Cavities Cartridge installation torque: 89 to 102 N-m (65 to 75 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PD42-M40B-H-J-R B Spool Option B BLANK Standard B N Normally Open in Transition H Line Body H 0 No Body H 16T Aluminum SAE 16 H 20T Aluminum SAE 20 J Seal J N Buna-N J NS Buna-N with a Sealed Spool J V Fluorocarbon J VS Fluorocarbon with a Sealed Spool J P Polyurethane J PS Polyurethane with a Sealed Spool J U PPDI Urethane J US PPDI Urethane with a Sealed Spool R Spring R 160 160 psi Bias Spring |
Seal kit:
SK42-4N-MMM
Buna N
SK42-4V-MMM
Fluorocarbon
SK42-4P-MMM
Polyurethane
SK42-4U-000
Urethane
Seal kit installation instructions
Housings:
Available
42-4w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
