HYDRAFORCE
5251550
$30.00 USD
- HYDRAFORCE
- Material:5251550
- Model:LSV1-6T-N SHUTTLE VALVE
- Summary:LOAD SHUTTLE VALVE
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

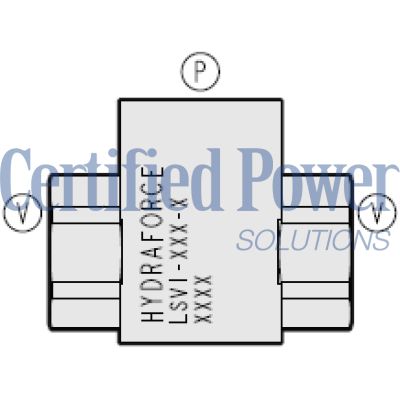

The Hydraforce LSV1-6T-N (5251550) is a high-performance hydraulic check valve designed for inline plumbing, providing a low leak solution for load shuttling in hydraulic systems. This model operates by allowing flow from the higher pressure of either V port to the P port, making it an effective directional selector. The valve features a rapid response to load direction changes and has an inline body that facilitates easy external plumbing. It offers various port styles to accommodate different system requirements. The LSV1-6T-N is engineered to handle a pressure rating up to 241 bar (3500 psi), and its performance can be referenced through specific performance graphs provided by Hydraforce. The maximum internal leakage is impressively low at 0.05 ml/min at 207 bar (3000 psi). This model is versatile in terms of temperature handling, operating effectively with fluid temperatures ranging from -40 to +100°C (-40 to +212°F) with Buna N seals, -26 to +204°C (-15 to +400°F) with fluorocarbon seals, and -54 to +107°C (-65 to +225°F) with polyurethane seals. Additionally, the LSV1-6T-N supports a wide range of fluid viscosities from 7.4 to 420 cSt and can operate within a maximum contamination level of 20/18/14 per ISO 4406. The unit weights vary slightly depending on the specific model configuration, with options including 0.12 kg for the LSV12P6T and 0.21 kg for the LSV16TS variant. It's important to note that this valve uses mineral-based or synthetic hydraulic fluids with lubricating properties, ensuring reliable operation under various conditions.
The Hydraforce LSV1-6T-N (5251550) is a high-performance hydraulic check valve designed for inline plumbing, providing a low leak solution for load shuttling in hydraulic systems. This model operates by allowing flow from the higher pressure of either V port to the P port, making it an effective directional selector. The valve features a rapid response to load direction changes and has an inline body that facilitates easy external plumbing. It offers various port styles to accommodate different system requirements. The LSV1-6T-N is engineered to handle a pressure rating up to 241 bar (3500 psi), and its performance can be referenced through specific performance graphs provided by Hydraforce. The maximum internal leakage is impressively low at 0.05 ml/min at 207 bar (3000 psi). This model is versatile in terms of temperature handling, operating effectively with fluid temperatures ranging from -40 to +100°C (-40 to +212°F) with Buna N seals, -26 to +204°C (-15 to +400°F) with fluorocarbon seals, and -54 to +107°C (-65 to +225°F) with polyurethane seals. Additionally, the LSV1-6T-N supports a wide range of fluid viscosities from 7.4 to 420 cSt and can operate within a maximum contamination level of 20/18/14 per ISO 4406. The unit weights vary slightly depending on the specific model configuration, with options including 0.12 kg for the LSV12P6T and 0.21 kg for the LSV16TS variant. It's important to note that this valve uses mineral-based or synthetic hydraulic fluids with lubricating properties, ensuring reliable operation under various conditions.

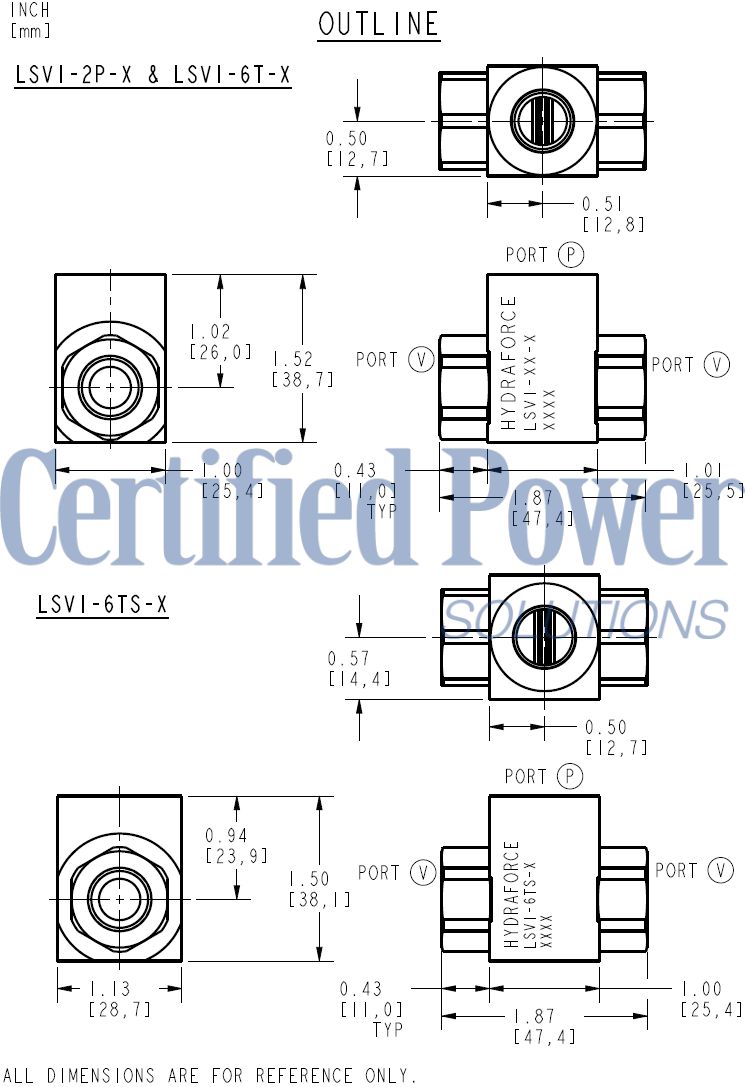

Unit weight:
0.12 kg (0.27 lb)
LSV1-2P/6T
0.21 kg (0.46 lb)
LSV1-6TS
Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 0.05 ml/min (1 drops/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

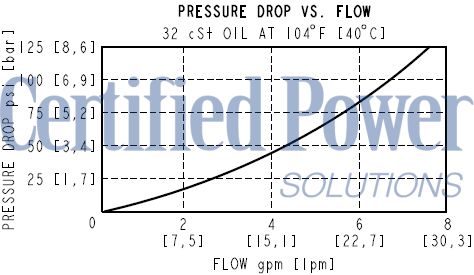

Performance | |
Order Code | POSITION CODE DESCRIPTION LSV1-H-J H Porting H 6T Aluminum SAE 6 H 6TS Steel SAE 6 J Seals J N Buna N J V Fluorocarbon J P Polyurethane |
Seal kit:
Non-serviceable
Product ZIP File | Download Product ZIP File |
Product PDF File | Download Product PDF File |
