HYDRAFORCE
5241030

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

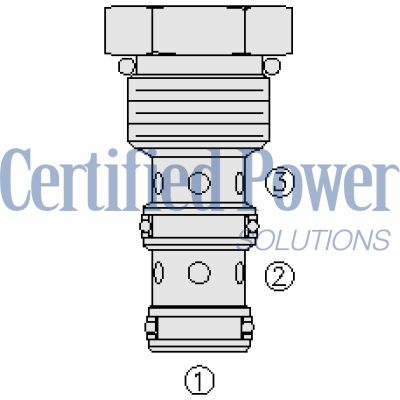

The Hydraforce LS10-30-6T-N (5241030) is a highly efficient load shuttle valve designed for hydraulic systems requiring reliable flow direction prioritization based on pressure differentials. This screw-in, cartridge-style hydraulic check valve is adept at blocking circuits, ensuring that flow is directed from higher pressure ports (either port 1 or 3) to port 2. Its rapid response to changes in load direction and compatibility with industry-common cavity VC103 makes it a versatile component suitable for various hydraulic applications. This valve can handle a maximum pressure of 3500 psi (241 bar) and operates efficiently across a wide range of temperatures: from -40 to +212°F (-40 to +100°C) with Buna N seals, -15 to +400°F (-26 to +204°C) with fluorocarbon seals, and -65 to +225°F (-54 to +107°C) with polyurethane seals. It ensures minimal internal leakage, not exceeding 0.25 ml/min at 3000 psi (207 bar), which underscores its effectiveness in maintaining system integrity. The LS10-30-6T-N is also designed for ease of installation in 10-size, 3-way cavities without orientation restrictions, supporting torque levels from 24 to 26 ft-lb (32.6 to 35.4 Nm) for cartridge installation and up to a maximum of 50 ft-lb (67.8 Nm). For maintenance or replacement, seal kits like the SK103XMM are available, complete with installation instructions. Overall, the Hydraforce LS10-30-6T-N offers robust performance for sophisticated hydraulic systems where precision and durability are paramount. Its ability to operate across a broad spectrum of temperatures and pressures along with minimal leakage and corrosion resistance makes it an indispensable tool for high-demand environments.
