- Model:LS10-30-0-V SHUTTLE VALVE
- Summary:LOAD SHUTTLE VALVE
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

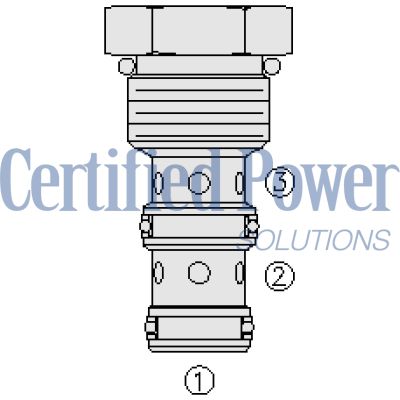

The Hydraforce 5241001 (5241001) is a load shuttle, screw-in, cartridge-style hydraulic check valve designed for use in blocking circuits where flow priority must be given to a higher pressure circuit over a lower one. This model operates by allowing fluid flow from the higher pressure port 1 or 3 to port 2, ensuring efficient management of hydraulic fluid direction based on pressure criteria. The LS1030 model features rapid response capabilities to changes in load direction, which is crucial for applications requiring quick adaptation to varying hydraulic conditions. Additionally, it is built with an industry-common cavity, which facilitates compatibility and interchangeability with existing hydraulic systems. This valve is particularly suited for systems that need reliable performance in managing directional flow under different pressure conditions without manual intervention.
The Hydraforce 5241001 (5241001) is a load shuttle, screw-in, cartridge-style hydraulic check valve designed for use in blocking circuits where flow priority must be given to a higher pressure circuit over a lower one. This model operates by allowing fluid flow from the higher pressure port 1 or 3 to port 2, ensuring efficient management of hydraulic fluid direction based on pressure criteria. The LS1030 model features rapid response capabilities to changes in load direction, which is crucial for applications requiring quick adaptation to varying hydraulic conditions. Additionally, it is built with an industry-common cavity, which facilitates compatibility and interchangeability with existing hydraulic systems. This valve is particularly suited for systems that need reliable performance in managing directional flow under different pressure conditions without manual intervention.
Unit weight:
0.09 kg (0.2 lb)
Internal wetted surface area:
88 cm² (13.7 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 0.25 ml/min (5 drops/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gls10-30) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.6 to 35.4 N-m (24 to 26 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION LS10-30-H-J H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
