HYDRAFORCE
5230000

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

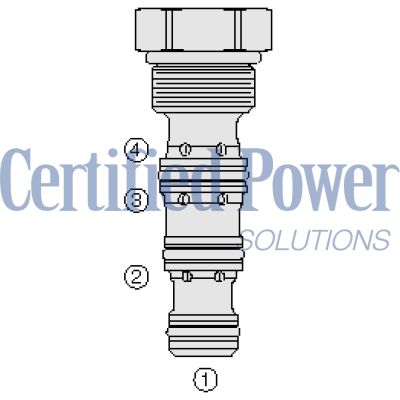

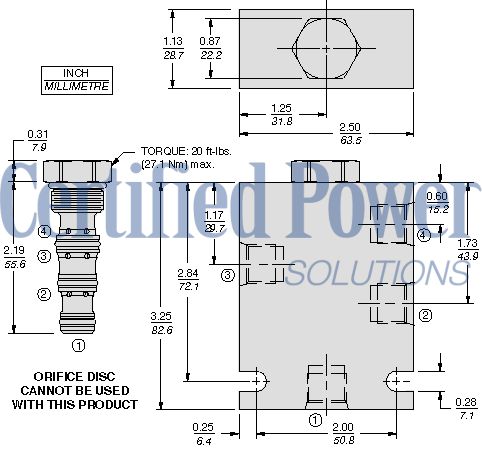

The Hydraforce DC08-40-0-N-25 (5230000) is a dual pilot operated check valve, designed primarily for blocking or load holding circuits in hydraulic systems. This valve is notable for its cartridge style, which facilitates easy installation and maintenance. It features a hardened seat that ensures long life and minimal leakage, contributing to the system's reliability and efficiency. Additionally, the design of the DC08-40-0-N-25 offers a low pressure drop and compact size, making it suitable for various applications where space and fluid control are critical. The valve operates effectively with general purpose hydraulic fluids and supports a pressure rating up to 241 bar (3500 psi), with proof pressure at 350 bar (5075 psi) and burst pressure reaching 966 bar (14000 psi). The pilot ratio is configured at 3:1, ensuring precise control over the check mechanism. Fluid flow through the valve can go up to 19 liters per minute (5 gallons per minute), with maximum internal leakage maintained at a minimal rate of 0.25 ml/min at 207 bar. Temperature tolerance of the DC08-40-0-N-25 ranges widely depending on the seal material used: from -40°C to +100°C with Buna N seals, -26°C to +204°C with Fluorocarbon seals, and -54°C to +107°C with Polyurethane seals. These temperature ratings ensure that the valve can operate under varying environmental conditions without performance degradation. For installation, this model uses an 08 size 4-way cavity (VC084) and has no orientation restrictions, providing flexibility in system design. The cartridge installation torque required is between 25.8 to 28.6 Nm. Various seal kits are available for different operational requirements including Buna N, Fluorocarbon, Polyurethane, and Urethane options. Overall, the Hydraforce DC08-40-0-N-25 offers robust performance for hydraulic systems requiring reliable load holding or blocking functionality under a range of operating conditions.
