HYDRAFORCE
5222000
$39.00 USD
- HYDRAFORCE
- Material:5222000
- Model:PC10-32-0-N-30 2:1 P.O. CHECK
- Summary:PILOTED OPERATED CHECK VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

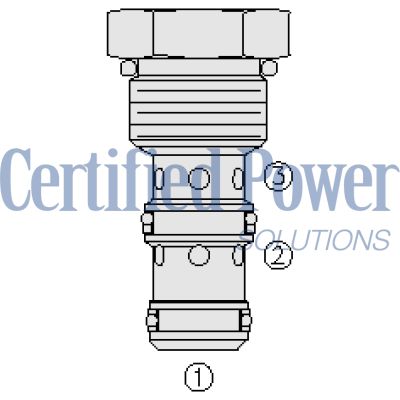

The Hydraforce PC10-32-0-N-30 (5222000) is a pilot-operated hydraulic check valve designed for versatile fluid control applications. This screw-in, cartridge-style valve facilitates free flow from ports 2 to 3 and typically blocks flow in the opposite direction, from ports 3 to 2. However, flow from ports 3 to 2 can be enabled when pressure is exerted at port 1, with a pilot ratio of 2:1. It features a hardened seat that ensures longevity and minimal leakage, enhancing system reliability. An optional sealed piston is available to further reduce leakage. The valve operates effectively within a pressure rating of up to 3500 psi (241 bar) and supports a maximum flow rate of 8 gallons per minute (30 lpm). It demonstrates exceptional performance across a broad range of temperatures: operational fluid temperatures span from -40°C to +100°C (-40°F to +212°F) with Buna N seals, and even wider with other seal types like Viton or polyurethane. Leakage specifications are stringent, with maximum internal leakage between ports set at minimal levels under various conditions, ensuring efficient operation even under high-pressure scenarios. The PC10-32-0-N-30 is compatible with mineral-based or synthetic hydraulic fluids with lubricating properties and handles fluid viscosities ranging from 7.4 to 420 cSt. With no orientation restrictions for installation and a standard industry cavity (VC10-3), this valve is straightforward to install using recommended torque settings. Additional accessories such as various seal kits and housing options are available, allowing for customization according to specific application needs. This makes the Hydraforce PC10-32-0-N-30 an adaptable solution suitable for diverse hydraulic systems requiring reliable check valve functionality.
The Hydraforce PC10-32-0-N-30 (5222000) is a pilot-operated hydraulic check valve designed for versatile fluid control applications. This screw-in, cartridge-style valve facilitates free flow from ports 2 to 3 and typically blocks flow in the opposite direction, from ports 3 to 2. However, flow from ports 3 to 2 can be enabled when pressure is exerted at port 1, with a pilot ratio of 2:1. It features a hardened seat that ensures longevity and minimal leakage, enhancing system reliability. An optional sealed piston is available to further reduce leakage. The valve operates effectively within a pressure rating of up to 3500 psi (241 bar) and supports a maximum flow rate of 8 gallons per minute (30 lpm). It demonstrates exceptional performance across a broad range of temperatures: operational fluid temperatures span from -40°C to +100°C (-40°F to +212°F) with Buna N seals, and even wider with other seal types like Viton or polyurethane. Leakage specifications are stringent, with maximum internal leakage between ports set at minimal levels under various conditions, ensuring efficient operation even under high-pressure scenarios. The PC10-32-0-N-30 is compatible with mineral-based or synthetic hydraulic fluids with lubricating properties and handles fluid viscosities ranging from 7.4 to 420 cSt. With no orientation restrictions for installation and a standard industry cavity (VC10-3), this valve is straightforward to install using recommended torque settings. Additional accessories such as various seal kits and housing options are available, allowing for customization according to specific application needs. This makes the Hydraforce PC10-32-0-N-30 an adaptable solution suitable for diverse hydraulic systems requiring reliable check valve functionality.
Unit weight:
0.1 kg (0.21 lb)
Internal wetted surface area:
107 cm² (16.6 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: 30 lpm (8 gpm) Maximum internal leakage: 5 drops/min Between ports 3 and 2 at 207 bar (3000 psi) 115 ml/min (7 in³/min) Between ports 2 and 1 at 207 bar (3000 psi) 0 ml/min (0 in³/min) Between ports 2 and 1 with sealed piston Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

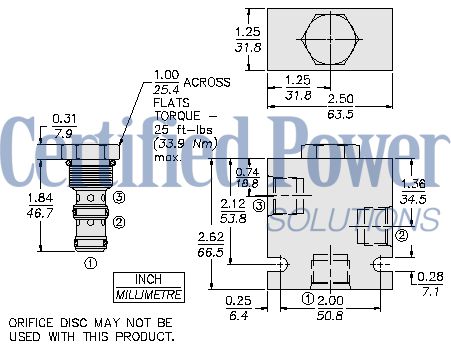

| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.6 to 35.4 N-m (24 to 26 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PC10-32-H-J-R H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J NS Buna-N with a Sealed Spool J V Fluorocarbon J VS Fluorocarbon with a Sealed Spool J P Polyurethane J PS Polyurethane with a Sealed Spool J U PPDI Urethane J US PPDI Urethane with a Sealed Spool R Spring R 30 30 psi Bias Spring R 100 100 psi Bias Spring |
Seal kit:
SK10-3X-TM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
