- Material:5221000
- Model:PC10-30-0-N P.O. CHECK VALVE - ALTERNATIVE TEST
- Summary:PILOT OPERATED CHECK VALVE
Quantity in stock: 6
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

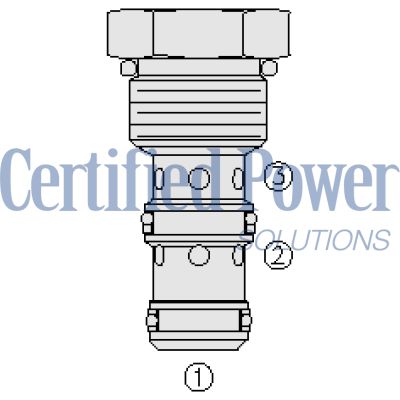

The Hydraforce PC10-30-0-N-XXX (5221000) is a screw-in, cartridge-style, pilot-operated hydraulic check valve designed for versatile fluid control in hydraulic systems. This model allows free flow from ports 2 to 3 and normally blocks flow from ports 3 to 2. However, flow from ports 3 to 2 is permitted when pressure is applied at port 1, with a pilot ratio of 4:1. The valve features a hardened seat ensuring long life and minimal leakage, and offers options such as a sealed piston and different spring ranges to suit various operational requirements. The PC10-30-0-N-XXX operates effectively within a pressure rating of up to 3500 psi (241 bar) and has specific maximum internal leakage rates that ensure efficiency: typically around 0.10 ml/min between ports 3 and 2 at 3000 psi, with no leakage between ports 2 and 1 when equipped with a sealed piston. It supports a broad operating fluid temperature range—up to 212°F with Buna N seals and up to 400°F with fluorocarbon seals—making it adaptable for different environmental conditions. This model also accommodates mineral-based or synthetic hydraulic fluids with viscosities ranging from 7.4 to 420 cSt, maintaining performance within an ISO contamination level of up to 20/18/14. The unit's weight is approximately 0.21 lb (0.10 kg), which along with its industry-standard cavity size VC103 makes it easy to install in multiple orientations without restrictions on torque or positioning. Hydraforce also provides various seal kits for the PC10-30-0-N-XXX including options for Buna N, fluorocarbon, polyurethane, and urethane materials, ensuring that maintenance and customization are straightforward for users seeking specific performance characteristics or adapting the valve to challenging operational environments.
The Hydraforce PC10-30-0-N-XXX (5221000) is a screw-in, cartridge-style, pilot-operated hydraulic check valve designed for versatile fluid control in hydraulic systems. This model allows free flow from ports 2 to 3 and normally blocks flow from ports 3 to 2. However, flow from ports 3 to 2 is permitted when pressure is applied at port 1, with a pilot ratio of 4:1. The valve features a hardened seat ensuring long life and minimal leakage, and offers options such as a sealed piston and different spring ranges to suit various operational requirements. The PC10-30-0-N-XXX operates effectively within a pressure rating of up to 3500 psi (241 bar) and has specific maximum internal leakage rates that ensure efficiency: typically around 0.10 ml/min between ports 3 and 2 at 3000 psi, with no leakage between ports 2 and 1 when equipped with a sealed piston. It supports a broad operating fluid temperature range—up to 212°F with Buna N seals and up to 400°F with fluorocarbon seals—making it adaptable for different environmental conditions. This model also accommodates mineral-based or synthetic hydraulic fluids with viscosities ranging from 7.4 to 420 cSt, maintaining performance within an ISO contamination level of up to 20/18/14. The unit's weight is approximately 0.21 lb (0.10 kg), which along with its industry-standard cavity size VC103 makes it easy to install in multiple orientations without restrictions on torque or positioning. Hydraforce also provides various seal kits for the PC10-30-0-N-XXX including options for Buna N, fluorocarbon, polyurethane, and urethane materials, ensuring that maintenance and customization are straightforward for users seeking specific performance characteristics or adapting the valve to challenging operational environments.
Unit weight:
0.10 kg (0.21 lb)
Internal wetted surface area:
104 cm² (16.2 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: See graph Maximum internal leakage: 0.10 ml/min (2 drops/min) At 207 bar (3000 psi)between ports 3 and 2 115 ml/min (7 in³/min) At 207 bar (3000 psi)between ports 2 and 1 0 ml/min (0 in³/min) Between ports 2 and 1 with sealed piston Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.6 to 35.4 N-m (24 to 26 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PC10-30-H-J-R H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J NS Buna-N with a Sealed Spool J V Fluorocarbon J VS Fluorocarbon with a Sealed Spool J P Polyurethane J PS Polyurethane with a Sealed Spool J U PPDI Urethane J US PPDI Urethane with a Sealed Spool R Spring R 70 70 psi Bias Spring R 90 90 psi Bias Spring R 120 120 psi Bias Spring R 270 270 psi Bias Spring R BLANK 30 psi Bias Spring |
Seal kit:
SK10-3N-TM
Buna N
SK10-3V-TM
Fluorocarbon
SK10-3P-TM
Polyurethane
SK10-3U-00
Urethane
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
