- Summary:PILOT OPERATED CHECK VALVE
Quantity in stock: 14
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

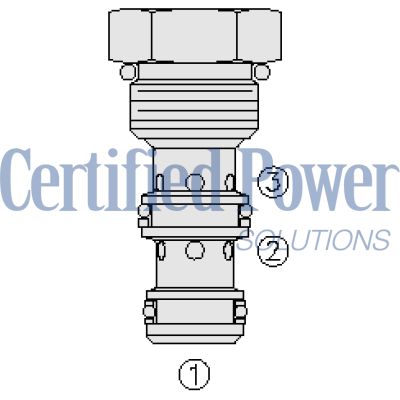

The Hydraforce PC08-30-0-N-120 (5220002) is a pilot-operated hydraulic check valve, engineered for blocking or load-holding circuits in various hydraulic systems. This screw-in, cartridge-style valve facilitates free flow from port 2 to port 3 and normally blocks flow from port 3 to port 2. It permits flow in the reverse direction when pressure is applied at port 1, making it versatile for controlled hydraulic operations. The valve features a hardened seat which ensures long life and minimal leakage, enhancing system reliability. Optional configurations include a sealed piston and variable spring ranges, allowing customization to meet specific application requirements. Its compact design aids in easy integration into tight spaces without compromising performance. The PC08-30-0-N-120 operates efficiently within a pressure rating of up to 3500 psi (241 bar) and supports a wide range of operating temperatures depending on seal material—ranging from -40°C to +100°C with Buna N seals and up to +204°C with Viton seals. This model demonstrates minimal internal leakage rates, crucial for maintaining system efficiency and performance integrity. Furthermore, it is designed to work with mineral-based or synthetic hydraulic fluids, accommodating fluid viscosities from 7.4 to 420 cSt and tolerating maximum contamination levels as specified by ISO 4406 standards. The unit's weight is light at approximately 0.06 kg (0.14 lb), which supports its application in mobile and industrial environments without adding significant weight or bulk. Overall, the Hydraforce PC08-30-0-N-120 offers robust performance for hydraulic systems requiring reliable load holding and flow blocking capabilities combined with flexibility in installation and maintenance.
The Hydraforce PC08-30-0-N-120 (5220002) is a pilot-operated hydraulic check valve, engineered for blocking or load-holding circuits in various hydraulic systems. This screw-in, cartridge-style valve facilitates free flow from port 2 to port 3 and normally blocks flow from port 3 to port 2. It permits flow in the reverse direction when pressure is applied at port 1, making it versatile for controlled hydraulic operations. The valve features a hardened seat which ensures long life and minimal leakage, enhancing system reliability. Optional configurations include a sealed piston and variable spring ranges, allowing customization to meet specific application requirements. Its compact design aids in easy integration into tight spaces without compromising performance. The PC08-30-0-N-120 operates efficiently within a pressure rating of up to 3500 psi (241 bar) and supports a wide range of operating temperatures depending on seal material—ranging from -40°C to +100°C with Buna N seals and up to +204°C with Viton seals. This model demonstrates minimal internal leakage rates, crucial for maintaining system efficiency and performance integrity. Furthermore, it is designed to work with mineral-based or synthetic hydraulic fluids, accommodating fluid viscosities from 7.4 to 420 cSt and tolerating maximum contamination levels as specified by ISO 4406 standards. The unit's weight is light at approximately 0.06 kg (0.14 lb), which supports its application in mobile and industrial environments without adding significant weight or bulk. Overall, the Hydraforce PC08-30-0-N-120 offers robust performance for hydraulic systems requiring reliable load holding and flow blocking capabilities combined with flexibility in installation and maintenance.
Unit weight:
0.06 kg (0.14 lb)
Internal wetted surface area:
88.4 cm² (13.7 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 0.1 ml/min (2 drops/min) Between ports 3 and 2 115 ml/min (7 in³/min) Between ports 2 and 1 0 ml/min (0 drops/min) Between ports 2 and 1 with sealed piston Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With urethane seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PC08-30-H-J-R H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J NS Buna-N with a Sealed Spool J V Fluorocarbon J VS Fluorocarbon with a Sealed Spool J P Polyurethane J PS Polyurethane with a Sealed Spool J U PPDI Urethane J US PPDI Urethane with a Sealed Spool R Spring R 70 70 psi Bias Spring R 90 90 psi Bias Spring R 120 120 psi Bias Spring R 270 270 psi Bias Spring R BLANK 25 psi Bias Spring |
Seal kit:
SK08-3N-TM
Buna N
SK08-3V-TM
Viton
SK08-3P-TM
Polyurethane
SK08-3U-00
Urethane
Seal kit installation instructions
Housings:
Available
08-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
