HYDRAFORCE
5200500
$12.50 USD
- HYDRAFORCE
- Material:5200500
- Model:CV08-20-0-N-150 CHECK VALVE
- Summary:CHECK VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

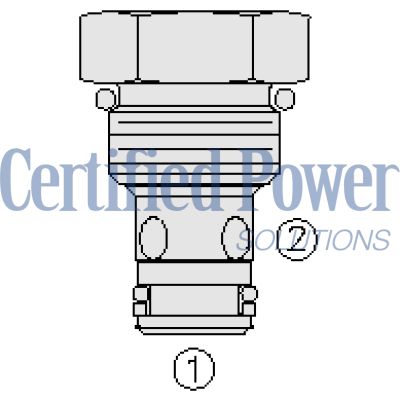

The Hydraforce CV08-20-0-N-150 (5200500) is a high-performance, screw-in cartridge-style hydraulic check valve designed for use as a blocking or load-holding device in hydraulic systems. It facilitates flow from port 1 to port 2 while typically blocking flow in the opposite direction. This valve features a fully guided check assembly that is spring-biased closed, requiring sufficient pressure at port 1 to open towards port 2. Its design incorporates a hardened seat to ensure long life and minimal leakage, and it offers optional bias springs to enhance backpressure application flexibility. Compact in size, the CV08-20-0-N-150 is engineered for quick closing and seating, making it an ideal choice for applications requiring reliable performance under varying pressure conditions. It can handle a pressure rating of up to 241 bar (3500 psi), with proof pressure at 350 bar (5075 psi) and burst pressure reaching up to 1034 bar (15000 psi). The valve operates effectively within a fluid temperature range of -40°C to +100°C (-40°F to +212°F) with standard Buna N seals, which can be extended with other seal options such as fluorocarbon or polyurethane for different temperature ranges. This model also features excellent corrosion protection enduring up to 960 hours of salt spray per ASTM B117 standards, ensuring durability and longevity in harsh environments. Installation specifications include the VC082 cavity type with no orientation restrictions and recommended cartridge installation torque between 25.8 to 28.5 Nm (19 to 21 ft-lb). The Hydraforce CV08-20-0-N-150 is versatile for various hydraulic applications, backed by robust build quality and precise engineering for reliable fluid control within industrial systems.
The Hydraforce CV08-20-0-N-150 (5200500) is a high-performance, screw-in cartridge-style hydraulic check valve designed for use as a blocking or load-holding device in hydraulic systems. It facilitates flow from port 1 to port 2 while typically blocking flow in the opposite direction. This valve features a fully guided check assembly that is spring-biased closed, requiring sufficient pressure at port 1 to open towards port 2. Its design incorporates a hardened seat to ensure long life and minimal leakage, and it offers optional bias springs to enhance backpressure application flexibility. Compact in size, the CV08-20-0-N-150 is engineered for quick closing and seating, making it an ideal choice for applications requiring reliable performance under varying pressure conditions. It can handle a pressure rating of up to 241 bar (3500 psi), with proof pressure at 350 bar (5075 psi) and burst pressure reaching up to 1034 bar (15000 psi). The valve operates effectively within a fluid temperature range of -40°C to +100°C (-40°F to +212°F) with standard Buna N seals, which can be extended with other seal options such as fluorocarbon or polyurethane for different temperature ranges. This model also features excellent corrosion protection enduring up to 960 hours of salt spray per ASTM B117 standards, ensuring durability and longevity in harsh environments. Installation specifications include the VC082 cavity type with no orientation restrictions and recommended cartridge installation torque between 25.8 to 28.5 Nm (19 to 21 ft-lb). The Hydraforce CV08-20-0-N-150 is versatile for various hydraulic applications, backed by robust build quality and precise engineering for reliable fluid control within industrial systems.
Unit weight:
0.05 kg (0.12 lb)
Internal wetted surface area:
60 cm² (9.3 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 350 bar (5075 psi) Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: See graph Maximum internal leakage: 0.10 ml/min (2 drops/min) At 241 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With urethane and polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hour salt spray per ASTM b117 GCV08-20 only |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |     |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54 N-m (40 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION CV08-20-H-J-R H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 4 4 psi Bias Spring R 10 10 psi Bias Spring R 25 25 psi Bias Spring R 40 40 psi Bias Spring R 50 50 psi Bias Spring R 60 60 psi Bias Spring R 80 80 psi Bias Spring R 100 100 psi Bias Spring R 150 150 psi Bias Spring R 200 200 psi Bias Spring R 270 270 psi Bias Spring R M25 25 bar Bias Spring |
Seal kit:
SK08-2N-T
Buna N
SK08-2V-T
Fluorocarbon
SK08-2HV-T
Fluorocarbon
SK08-2P-T
Polyurethane
SK08-2U-O
Urethane
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
