HYDRAFORCE
5200000

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

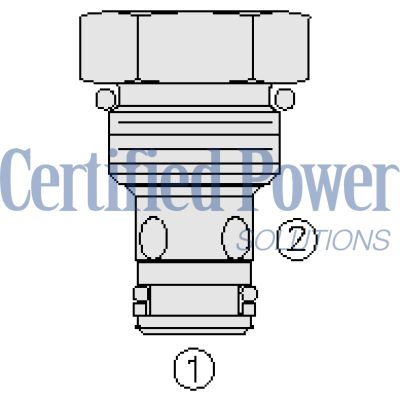

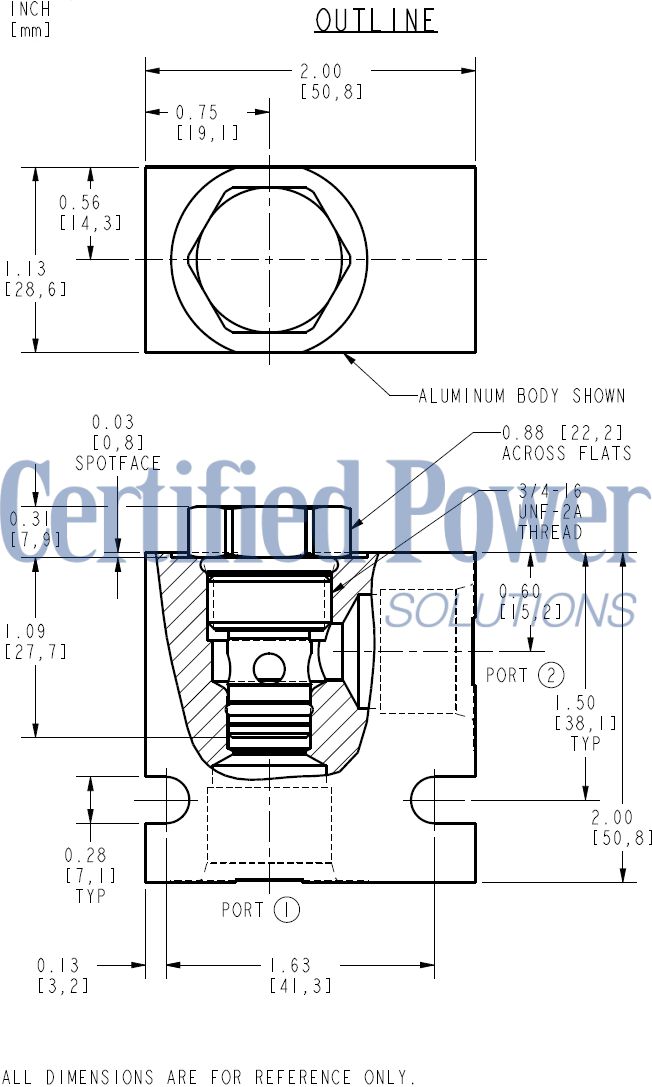

The Hydraforce CV08-20-0-N-04 (5200000) is a screw-in, cartridge-style hydraulic check valve designed for use as a blocking or load-holding device. It facilitates flow from port 1 to port 2 while typically blocking flow in the reverse direction. This valve features a fully guided check assembly that is spring-biased closed until sufficient pressure at port 1 compels it to open towards port 2. The design includes a hardened seat ensuring long life and minimal leakage, and offers optional bias springs to enhance backpressure application flexibility. Its compact size, coupled with fast closing and seating capabilities, make it highly efficient for various hydraulic applications. This model operates effectively within a pressure range up to 3500 psi, with proof pressure at 5075 psi and an impressive burst pressure of 15000 psi. It supports operating fluid temperatures ranging from -40°C to +100°C with Buna N seals, and up to +204°C with fluorocarbon seals. The CV08-20-0-N-04 maintains performance within a fluid viscosity range from 7.4 to 420 cSt and tolerates maximum operating contamination levels as specified by ISO 4406:2018/14. Installation specifications include the VC082 cavity design compatible with 08 size 2-way cavities and cartridge installation torque between 25.8 to 28.5 Nm. There are no orientation restrictions for this model, ensuring versatile installation options across various systems without compromising its efficacy or safety. Additionally, the valve is compatible with several seal kits including options in Buna N, Fluorocarbon, Polyurethane, and Urethane materials, allowing customization based on operational requirements and environmental conditions. The available accessories further include housings specifically designed for the CV08 series valves enhancing the system integration process.
