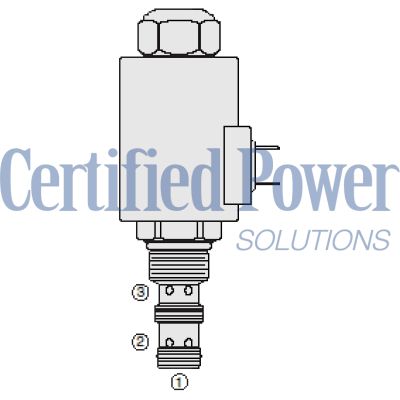

  • Model:ZL70-30AG-0-N-00 FLOW CONTROL
  • Summary:N.C. BIDIRECTIONAL FLOW REGULATOR U.S. PATENT No. 6,167,906

Quantity in stock: 0

Due to low availability, 1 will be backordered and may not ship until December 12, 2025

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5164004 (5164004) is a high-performance solenoid operated, pressure compensated, spool type, normally closed, proportional bidirectional flow control valve. This model, known for its robust design and precise functionality, regulates flow seamlessly in both directions—either from port 2 to port 3 or vice versa. It is critical to note that port 1 should remain blocked during operation. The flow control facilitated by this valve is directly proportional to the electric current applied to its solenoid, allowing for fine-tuned management of fluid dynamics. Constructed with an aluminum body and featuring a hardened spool and cage, the 5164004 ensures durability and a long operational life even under rigorous conditions. It is specifically designed for use with mineral-based or synthetic fluids that possess lubricating properties. This model boasts excellent linearity and hysteresis characteristics which make it highly reliable in maintaining consistent performance. Additionally, the valve offers flexibility through optional coil voltages and terminations and can be customized with manual override options. Its efficient wet-armature construction further enhances its performance reliability. The unit's dimensions include specific measurements such as 26.9mm across flats with a thread size of 7814 UNF-2A, ensuring compatibility with various setups in specialized applications. With choices of two regulated flow ranges available, the Hydraforce 5164004 adapts to varied operational requirements, making it an essential component in sophisticated fluid control systems.

Unit weight: 0.32 kg (0.70 lb)
ZL70-30X
0.37 kg (0.81 lb)
ZL70-30XM
0.45 kg (1.00 lb)
ZL70-30XG

Internal wetted surface area: 209.6 cm² (32.5 in²)
Zl7030x
212.8 cm² (33.0 in²)
Zl7030xm zl7030xg

RatingsPressure Ratings
Pressure rating: 241 bar (3500 psi)
Inlet (port 1)
207 bar (3000 psi)
Regulated (port 3)
207 bar (3000 psi)
Bypass (port 2)

Proof pressure: 689 bar (10000 psi)

Burst pressure: 1103 bar (16000 psi)

Flow Ratings
Flow rating: 0 to 20.1 lpm (0 to 5.3 gpm)
Flow range A
0 to 9.8 lpm (0 to 2.6 gpm)
Flow range b

Maximum internal leakage: 0.38 lpm (0.1 gpm)
Max at 0 current

Hysteresis flow: lpm (gpm)
Maximum

Temperature Ratings
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)
With buna N seals
-26 to 204 °C (-15 to 400 °F)
With fluorocarbon seals

Storage temperature: -40 to 70 °C (-40 to 160 °F)

Ambient temperature: -40 to 70 °C (-40 to 160 °F)
Operating ParametersFluids: Mineral based or synthetic hydraulic fluid with lubricating
properties

Fluid viscosity range: 7.4 to 420 cSt

Maximum operating contamination level: 18/16/13 per ISO 4406
Electrical ParametersMaximum control current: 1400 ±100 mA
12 V 70 Series D-coil
700 ±50 mA
24 V 70 Series D-coil
1400 ±100 mA
12 V 70 Series E-coil
700 ±50 mA
24 V 70 Series E-coil

Threshold current: 250 ±100 mA
12 V 70 Series D-coil
125 ±50 mA
24 V 70 Series D-coil
250 ±100 mA
12 V 70 Series E-coil
125 ±50 mA
24 V 70 Series E-coil

Valve inductance: 200 mH
12 V 70 Series D-coil
600 mH
24 V 70 Series D-coil
240 mH
12 V 70-Series E-coil
700 mH
24 V 70-Series E-coil

Dither PWM frequency: 100 to 250 Hz

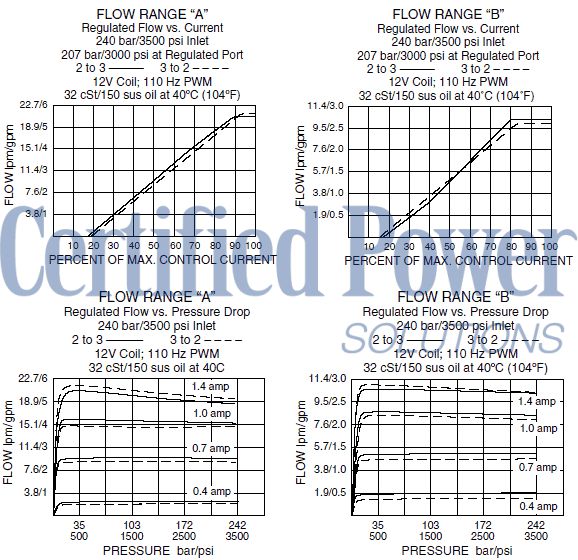

Performancehttps://www.hydraforce.com/globalassets/product-images/zl70-30_perf_chrt2022-02-24.gif

Installation SpecificationsCavity: VC10-3
10-size-3-way Cavities
Cartridge installation torque: 34 to 37 N-m (25 to 27 ft-lb)

Coil nut torque: 14 to 16 N-m (10 to 12 ft-lb)

Cover cap torque: 7 to 9 N-m (5 to 7 ft-lb)

Orientation restriction: None
Order CodePOSITION CODE DESCRIPTION ZL70-30DE-H-J-L D Flow Range D A 0 to 21.1 lpm (0 to 5.3 gpm) Flow Range D B 0 to 9.8 lpm (0 to 2.6 gpm) Flow Range E Manual Override E BLANK NONE E G Variable Position Override, Red Knurled Knob with Cover Cap E M Variable Position Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DS 12 VDC, D-Coil, Dual Spade L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch

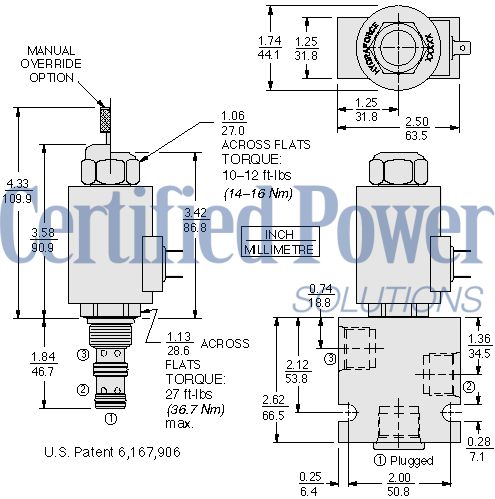

https://www.hydraforce.com/globalassets/product-images/zl70-30_dim_dwg2022-02-24.gif


Seal kit: SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
70 size D
coils
70 size E
coils
