- Material:5142112
- Model:PV72-30B-0-N-24DL FLOW CONTROL
- Summary:NORMALLY CLOSED PRESSURE COMPENSATED ELECTRO-PROPORTIONAL PRIORITY FLOW REGULATOR VALVE CARTRIDGE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5142112 (5142112) is a sophisticated solenoid-operated, pressure-compensated, spool type, normally closed, proportional priority flow control valve. This valve is designed to deliver priority regulated flow at port 3, ensuring that the flow remains consistent regardless of load changes. The operation of the 5142112 is characterized by its ability to provide a regulated flow that is proportional to the electric current applied to its solenoid. This feature allows for precise control over hydraulic functions in various applications. Notably, the Hydraforce 5142112 offers a choice of two regulated flow ranges which enhances its adaptability to different system requirements. It also boasts excellent linearity and hysteresis characteristics, making it reliable for continuous use in systems requiring precise fluid control. The valve's efficient wet-armature construction contributes to its robust performance and durability. Additionally, this model comes with optional coil voltages and terminations which provide flexibility for integration into diverse electrical systems. Its cartridges are voltage-interchangeable which simplifies maintenance and replacement processes. The unitized, molded coil design not only ensures compactness but also aids in enhancing the overall reliability of the valve assembly. Moreover, standard waterproofing of the coil makes the 5142112 suitable for operation in moist or wet environments without compromising functionality. An optional manual override feature adds a layer of operational security, allowing users to manually control the valve during electrical system maintenance or unexpected power failures. This makes the Hydraforce 5142112 an ideal choice for applications requiring dependable and precise flow regulation under varied operating conditions.
The Hydraforce 5142112 (5142112) is a sophisticated solenoid-operated, pressure-compensated, spool type, normally closed, proportional priority flow control valve. This valve is designed to deliver priority regulated flow at port 3, ensuring that the flow remains consistent regardless of load changes. The operation of the 5142112 is characterized by its ability to provide a regulated flow that is proportional to the electric current applied to its solenoid. This feature allows for precise control over hydraulic functions in various applications. Notably, the Hydraforce 5142112 offers a choice of two regulated flow ranges which enhances its adaptability to different system requirements. It also boasts excellent linearity and hysteresis characteristics, making it reliable for continuous use in systems requiring precise fluid control. The valve's efficient wet-armature construction contributes to its robust performance and durability. Additionally, this model comes with optional coil voltages and terminations which provide flexibility for integration into diverse electrical systems. Its cartridges are voltage-interchangeable which simplifies maintenance and replacement processes. The unitized, molded coil design not only ensures compactness but also aids in enhancing the overall reliability of the valve assembly. Moreover, standard waterproofing of the coil makes the 5142112 suitable for operation in moist or wet environments without compromising functionality. An optional manual override feature adds a layer of operational security, allowing users to manually control the valve during electrical system maintenance or unexpected power failures. This makes the Hydraforce 5142112 an ideal choice for applications requiring dependable and precise flow regulation under varied operating conditions.
Unit weight:
0.42 kg (0.93 lb)
PV72-30X
0.47 kg (1.03 lb)
PV72-30XM
0.56 kg (1.23 lb)
PV72-30XG
Internal wetted surface area:
339 cm² (52.5 in²)
PV72-30X
342 cm² (53.0 in²)
PV72-30XM PV72-30XG

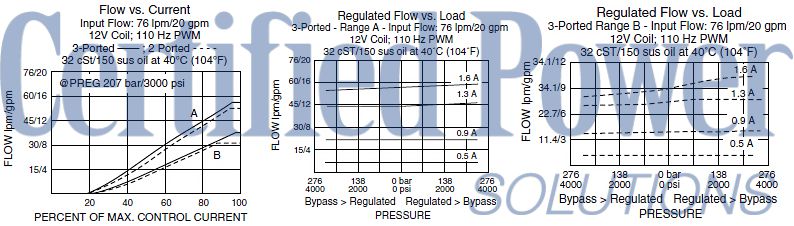

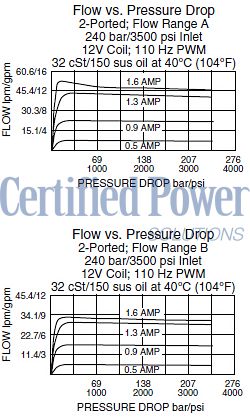

| Ratings | Pressure Ratings Pressure rating: 240 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: 0 to 57 lpm (0 to 15.0 gpm) For "a" flow range; 0 to 38 lpm (0 to 10.0 gpm) For "b" flow range Maximum internal leakage: 0.38 lpm (0.1 gpm) Max at 0 current Hysteresis flow: lpm (gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Electrical Parameters | Note:
With size 70 e-series and d-series coils Maximum control current: 1600 mA 12 V coil 800 mA 24 V coil Threshold current: 350 mA 12 V coil 175 mA 24 V coil Valve inductance: 240 mH E-coil 12 V 200 mH D-coil 12 V 700 mH E-coil 12 V 600 mH D-coil 24 V Dither PWM frequency: 100 to 250 Hz |
| Performance |   |
| Installation Specifications | Cavity:

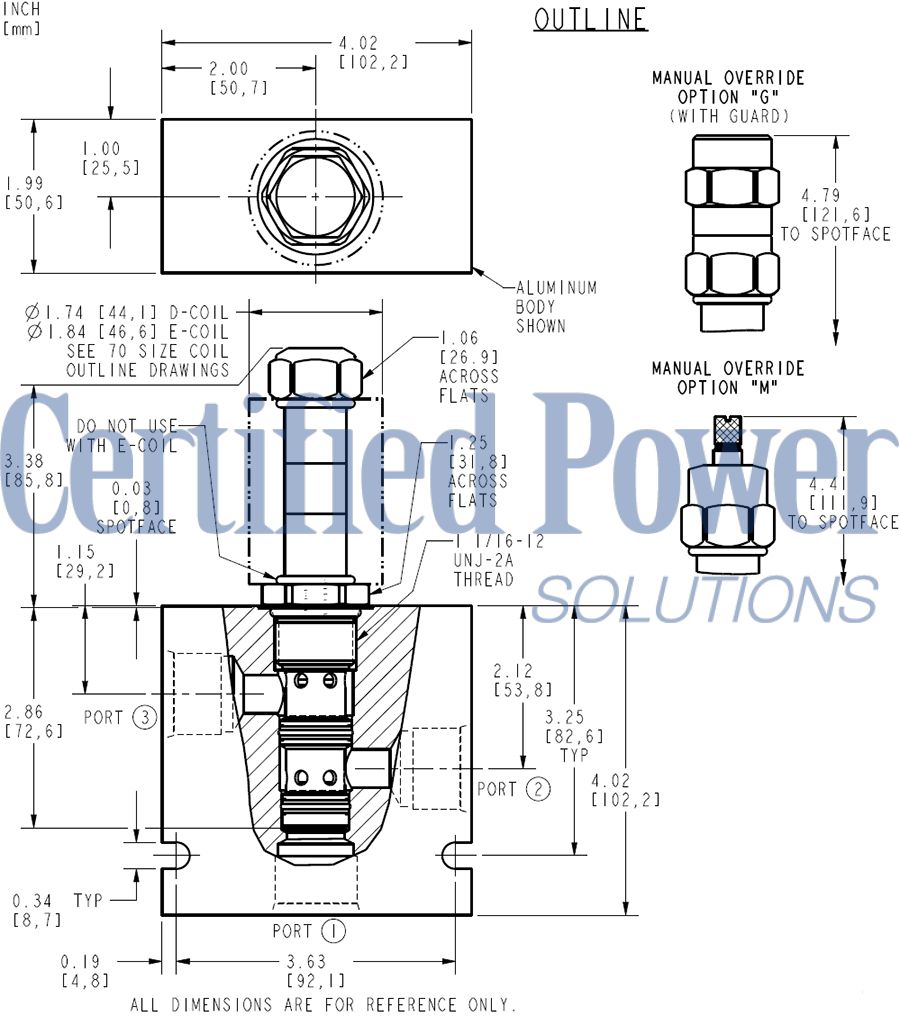

VC12-3 12-size-3-way Cavities Cartridge installation torque: 45 to 50 N-m (33 to 37 ft-lb) Maximum allowable torque: 68 N-m (50 ft-lb) Coil nut torque: 14 to 16 N-m (10 to 12 ft-lb) Cover cap torque: 7 to 9 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PV72-30DE-H-J-L D Max Regulated Flow D A 56.8 lpm (15.0 gpm) Max Regulated Flow D B 37.9 lpm (10.0 gpm) Max Regulated Flow E Manual Override E BLANK NONE E G Variable Position Override, Red Knurled Knob with Cover Cap E M Variable Position Override, Red Knurled Knob H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DS 12 VDC, D-Coil, Dual Spade L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
Seal kit:
SK12-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
Coils:
70 size D
coils
70 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
