- Material:5123273
- Model:TS12-26B-6B-V-24DG PRESSURE CONTROL
- Summary:PRESSURE RELIEVING PROPORTIONAL CARTRIDGE VALVE U.S. PATENT # 7,137,406
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

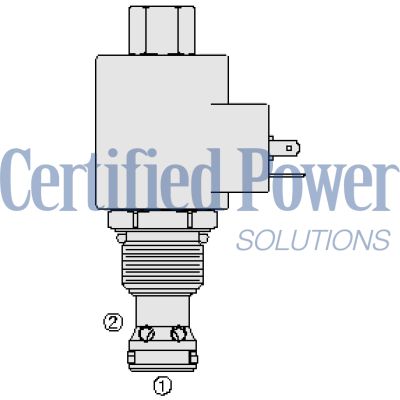

The Hydraforce 5123273 (5123273) is a screw-in, cartridge-style, pilot-operated, spool-type relief valve known as the TS12-26X. This valve is designed for applications requiring precise control over pressure relief across a specific range, which can be infinitely adjusted using a variable electric current. The regulated pressure of the TS12-26X is directly proportional to the input electrical current, allowing for highly accurate pressure management. In operation, the valve blocks flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to open the pilot section, countering the force generated by an electrically induced solenoid. Without any electrical current applied, this valve will relieve pressure at approximately 100 psi (6.9 bar). The TS12-26X comes standard with both 12 and 24-volt coils and offers optional waterproof E-Coils that are rated up to IP69K for enhanced durability in demanding environments. It features an industry-common cavity design and an optional manual override for added versatility in various applications.
The Hydraforce 5123273 (5123273) is a screw-in, cartridge-style, pilot-operated, spool-type relief valve known as the TS12-26X. This valve is designed for applications requiring precise control over pressure relief across a specific range, which can be infinitely adjusted using a variable electric current. The regulated pressure of the TS12-26X is directly proportional to the input electrical current, allowing for highly accurate pressure management. In operation, the valve blocks flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to open the pilot section, countering the force generated by an electrically induced solenoid. Without any electrical current applied, this valve will relieve pressure at approximately 100 psi (6.9 bar). The TS12-26X comes standard with both 12 and 24-volt coils and offers optional waterproof E-Coils that are rated up to IP69K for enhanced durability in demanding environments. It features an industry-common cavity design and an optional manual override for added versatility in various applications.
Unit weight:
0.56 kg (1.23 lb)
Internal wetted surface area:
163 cm² (36.8 in²)

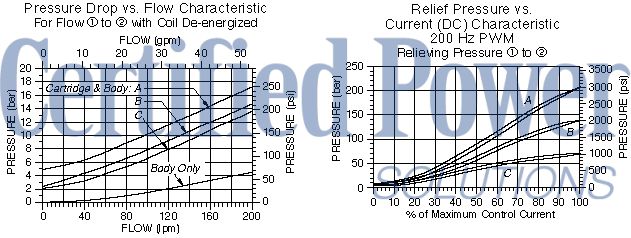

| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) At port 1 206.8 bar (3000 psi) At port 2 Proof pressure: 344.7 bar (4000 psi) Burst pressure: 827.4 bar (12000 psi) With coil assembled Adjustable pressure range: 6.9 to 206.8 bar (100 to 3000 psi) Model code A (from zero to maximum control current) 6.9 to 138.0 bar (100 to 2000 psi) Model code b (from zero to maximum control current) 2.1 to 68.9 bar (30 to 1000 psi) Model code c (from zero to maximum control current) Flow Ratings Flow rating: 189 lpm (50 gpm) Delta-p (cartridge only) port 1-2 (coil de-energized) 12.4 bar (180 psi) Hysteresis per cent: 3 % Maximum Maximum pilot flow: 0.76 lpm (0.2 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:

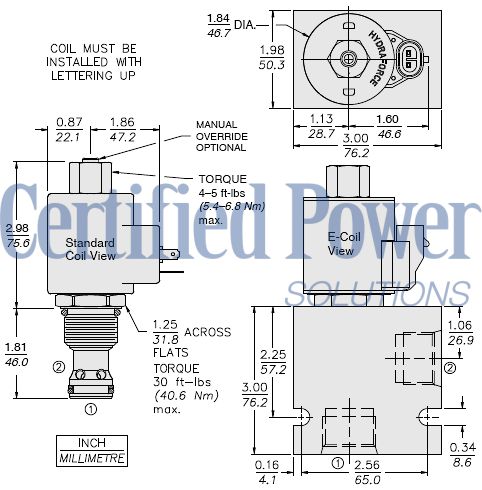

VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.9 to 50.2 N-m (33 to 37 ft-lb) Coil nut torque: 9.5 to 13.6 N-m (7 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS12-26DE-H-J-L D Regulating Pressure Range D A 6.9 to 206.8 bar (100 to 3000 psi) Pressure Range D B 6.9 to 138.0 bar (100 to 2000 psi) Pressure Range D C 2.1 to 68.9 bar (100 to 1000 psi) Pressure Range E Manual Override E BLANK NONE E M Minimum Regulated Pressure Override, 3/16" Internal Hex H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK12-2X-B
X=seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
