- Model:TS58-20-40-0-N-12ER PRESSURE CONTR
- Summary:Heavy-duty pressure sensor
Quantity in stock: 21
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

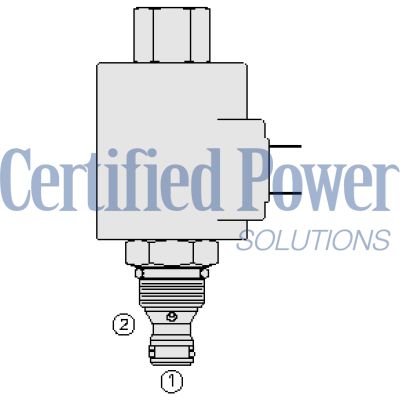

The Hydraforce TS58-20-40-0-N-12ER (5123069) is a high-accuracy, heavy-duty pressure sensor designed for demanding industrial and off-highway equipment applications. It features a 1% total error band accuracy, achieved by integrating a high-performance ASIC with a stable polysilicon thin-film pressure sensor. This model offers reverse polarity and miswire protection, broad temperature capabilities, and an all-welded pressure construction. It is IP67 ingress rated and has a high EMI/RFI rating. The TS58-20X variant is a direct-acting, poppet-type proportional pressure-relieving valve that regulates pressure in proportion to the input electrical current. The valve blocks flow from port 1 to port 2 until sufficient pressure opens it, allowing free flow when no current is applied. It accommodates both 12 and 24 volt coils with optional waterproof E-Coils rated up to IP69K. The sensor operates within a temperature range of -20 to 85\u00b0C (-4 to 185\u00b0F) and supports pressures up to 427.5 bar (6200 psi) at port 1 with proof pressures reaching 448.2 bar (6500 psi). Its burst pressure stands at an impressive 944.6 bar (13700 psi), while the adjustable pressure range extends from 0 to 344.7 bar (0 to 5000 psi). Capable of handling flow rates up to 6.8 lpm (1.8 gpm), the unit maintains maximum internal leakage at just 4.5 ml/min at 80% of maximum setting. Additional specifications include corrosion protection for up to 960 hours in salt spray per ASTM b117 standards, operating fluid temperatures ranging from -40 to +100\u00b0C depending on seal type, and compatibility with mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The unit's design allows for easy installation without orientation restrictions using VC08-2 cavities and requires specific torque settings for cartridge installation and coil nut adjustments.
The Hydraforce TS58-20-40-0-N-12ER (5123069) is a high-accuracy, heavy-duty pressure sensor designed for demanding industrial and off-highway equipment applications. It features a 1% total error band accuracy, achieved by integrating a high-performance ASIC with a stable polysilicon thin-film pressure sensor. This model offers reverse polarity and miswire protection, broad temperature capabilities, and an all-welded pressure construction. It is IP67 ingress rated and has a high EMI/RFI rating. The TS58-20X variant is a direct-acting, poppet-type proportional pressure-relieving valve that regulates pressure in proportion to the input electrical current. The valve blocks flow from port 1 to port 2 until sufficient pressure opens it, allowing free flow when no current is applied. It accommodates both 12 and 24 volt coils with optional waterproof E-Coils rated up to IP69K. The sensor operates within a temperature range of -20 to 85\u00b0C (-4 to 185\u00b0F) and supports pressures up to 427.5 bar (6200 psi) at port 1 with proof pressures reaching 448.2 bar (6500 psi). Its burst pressure stands at an impressive 944.6 bar (13700 psi), while the adjustable pressure range extends from 0 to 344.7 bar (0 to 5000 psi). Capable of handling flow rates up to 6.8 lpm (1.8 gpm), the unit maintains maximum internal leakage at just 4.5 ml/min at 80% of maximum setting. Additional specifications include corrosion protection for up to 960 hours in salt spray per ASTM b117 standards, operating fluid temperatures ranging from -40 to +100\u00b0C depending on seal type, and compatibility with mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The unit's design allows for easy installation without orientation restrictions using VC08-2 cavities and requires specific torque settings for cartridge installation and coil nut adjustments.
Screen mesh:
150 x 150
Screen wire diameter:
0.066 mm (0.0026 in)
Screen opening:
0.104 mm (0.0041 in)
Unit weight:
0.18 kg (0.40 lb)
Internal wetted surface area:
118 cm² (18.3 in²)
| Ratings | Pressure Ratings Pressure rating: 427.5 bar (6200 psi) Port 1 68.9 bar (1000 psi) Port 2 Proof pressure: 448.2 bar (6500 psi) Port 1 103.4 bar (1500 psi) Port 2 Burst pressure: 944.6 bar (13700 psi) Adjustable pressure range: 0 to 344.7 bar (0 to 5000 psi) Note: Maximum pressure factory adjustable between 275.8 to 344.7 bar (4000 to 5000 psi) in 6.9 bar (100 psi) increments Flow Ratings Flow rating: 6.8 lpm (1.8 gpm) 5.5 to 8.3 bar (-80 to 120 psi) Maximum internal leakage: 4.5 ml/min (0.275 in³/min) At 80% of maximum setting does not exceed Hysteresis per cent: 3.5 % Maximum at 200 Hz dither or PWM Other Ratings Response: 45 ms Current step from 0 to maximum 8 ms Current step from maximum to 0 Corrosion protection: 960 hr salt spray per ASTM b117 Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS58-20DG-H-J-L D Regulating Pressure Range D 40 4000 psi Max Setting D 41 4100 psi Max Setting D 42 4200 psi Max Setting D 43 4300 psi Max Setting D 44 4400 psi Max Setting D 45 4500 psi Max Setting D 46 4600 psi Max Setting D 47 4700 psi Max Setting D 48 4800 psi Max Setting D 49 4900 psi Max Setting D 50 5000 psi Max Setting G Screen G BLANK NONE G S 150 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-2X-B (x = seal option)
X = seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product PDF File | Download Product PDF File |
