HYDRAFORCE
5122800
$126.50 USD
- HYDRAFORCE
- Material:5122800
- Model:TS38-20AM-0-N-00 CARTRIDGE ASSEMBLY
- Summary:PRESSURE RELIEVING PROPORTIONAL VALVE
Quantity in stock: 30
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

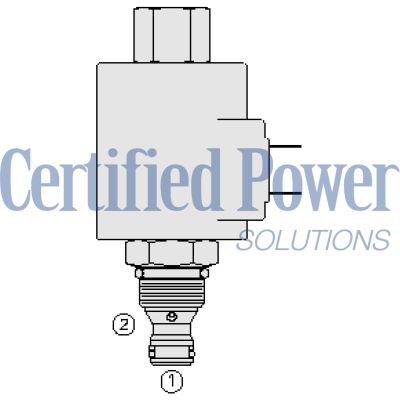

The Hydraforce TS38-20AM-0-N-00 (5122800) is a direct-acting, single-stage, poppet-type, proportional pressure-relieving valve. This valve is designed to regulate pressure proportionally to the input electrical current. It operates by blocking flow from port 1 to port 2 until sufficient pressure at port 1 offsets the electrically induced solenoid force. In the absence of electrical current, the valve allows free flow between these ports. The TS38-20 features an industry-common cavity and offers a manual override option for enhanced operational flexibility. Its pressure ratings include a maximum of 248.2 bar (3600 psi), with proof and burst pressures of 268.9 bar (3900 psi) and 751.5 bar (10900 psi), respectively. The adjustable pressure range varies from 0 to 206.8 bar (3000 psi) depending on specific configurations, while its flow rating is set at 11.4 lpm (3 gpm) when coil de-energized from port 1 to port 2. Maximum internal leakage is minimal at only 1 ml/min at a pressure of 3000 psi between ports 2 and 1. The operating fluid temperature can range significantly based on seal type, accommodating environments from -40 to 204 \u00b0C (-40 to 400 \u00b0F). The TS38-20 also boasts corrosion protection withstanding up to 960 hours in salt spray per ASTM B117 standards. Installation specifications include compatibility with VC08-2 cavities and defined torque requirements for cartridge installation and coil nut adjustments, ensuring secure fitting in hydraulic systems. Additional accessories such as seal kits and housings are available for customization or maintenance needs, making this valve suitable for various hydraulic applications requiring precise pressure control and reliability in diverse environmental conditions.
The Hydraforce TS38-20AM-0-N-00 (5122800) is a direct-acting, single-stage, poppet-type, proportional pressure-relieving valve. This valve is designed to regulate pressure proportionally to the input electrical current. It operates by blocking flow from port 1 to port 2 until sufficient pressure at port 1 offsets the electrically induced solenoid force. In the absence of electrical current, the valve allows free flow between these ports. The TS38-20 features an industry-common cavity and offers a manual override option for enhanced operational flexibility. Its pressure ratings include a maximum of 248.2 bar (3600 psi), with proof and burst pressures of 268.9 bar (3900 psi) and 751.5 bar (10900 psi), respectively. The adjustable pressure range varies from 0 to 206.8 bar (3000 psi) depending on specific configurations, while its flow rating is set at 11.4 lpm (3 gpm) when coil de-energized from port 1 to port 2. Maximum internal leakage is minimal at only 1 ml/min at a pressure of 3000 psi between ports 2 and 1. The operating fluid temperature can range significantly based on seal type, accommodating environments from -40 to 204 \u00b0C (-40 to 400 \u00b0F). The TS38-20 also boasts corrosion protection withstanding up to 960 hours in salt spray per ASTM B117 standards. Installation specifications include compatibility with VC08-2 cavities and defined torque requirements for cartridge installation and coil nut adjustments, ensuring secure fitting in hydraulic systems. Additional accessories such as seal kits and housings are available for customization or maintenance needs, making this valve suitable for various hydraulic applications requiring precise pressure control and reliability in diverse environmental conditions.
Unit weight:
0.18 kg (0.39 lb)
Internal wetted surface area:
130 cm² (20.2 in²)
| Ratings | Pressure Ratings Pressure rating: 248.2 bar (3600 psi) Proof pressure: 268.9 bar (3900 psi) Burst pressure: 751.5 bar (10900 psi) Pressure drop: 20 bar (290 psi) Cartridge only (a) 10.3 bar (150 psi) Cartridge only (b) 5.5 bar (80 psi) Cartridge only (c) Adjustable pressure range: 0 to 206.8 bar (0 to 3000 psi) (a) 0 to 137.9 bar (0 to 2000 psi) (b) 0 to 68.9 bar (0 to 1000 psi) (c) Flow Ratings Flow rating: 11.4 lpm (3 gpm) Port 1 to port 2 (coil de-energized) Maximum internal leakage: 1 ml/min (20 drops/min) Port 2-1, at 3000 psi Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS38-20DE-H-J-L D Regulating Pressure Range D A 0 to 206.8 bar (0 to 3000 psi) Pressure Range D B 0 to 138.0 bar (0 to 2000 psi) Pressure Range D C 0 to 68.9 bar (0 to 1000 psi) Pressure Range E Manual Override E BLANK NONE E M Minimum Regulated Pressure Override, 3/16" Internal Hex H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-2X-B
Seal option)
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
