HYDRAFORCE
5122357
$177.50 USD
- HYDRAFORCE
- Material:5122357
- Model:TS38-20A-4T-N-24DG PRESSURE CONTROL
- Summary:PRESSURE RELIEVING PROPORTIONAL VALVE
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5122357 (5122357) is a direct-acting, single stage, poppet-type, proportional pressure relieving valve, known as the TS38-20. This component effectively regulates pressure in hydraulic systems, with the regulated pressure being directly proportional to the input electrical current. Its operation involves blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to counteract the solenoid force induced by electricity. In scenarios where no electrical current is applied, this valve permits free flow between port 1 and port 2. The TS38-20 is designed with an industry common cavity and offers a manual override option for added versatility and control. This makes it particularly suited for applications requiring precise pressure control and reliability in hydraulic circuits.
The Hydraforce 5122357 (5122357) is a direct-acting, single stage, poppet-type, proportional pressure relieving valve, known as the TS38-20. This component effectively regulates pressure in hydraulic systems, with the regulated pressure being directly proportional to the input electrical current. Its operation involves blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to counteract the solenoid force induced by electricity. In scenarios where no electrical current is applied, this valve permits free flow between port 1 and port 2. The TS38-20 is designed with an industry common cavity and offers a manual override option for added versatility and control. This makes it particularly suited for applications requiring precise pressure control and reliability in hydraulic circuits.

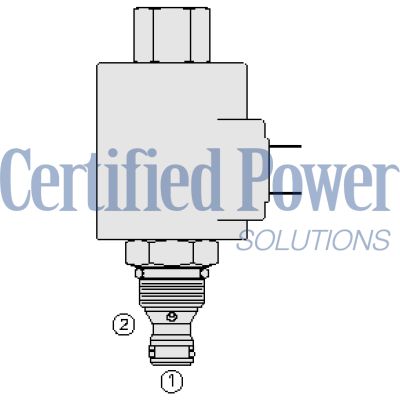

Description TS38-20 is a direct-acting, single stage, poppet-type, proportional, pressure relieving valve. The regulated pressure is proportional to the input electrical current. Operation The TS38-20 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to offset the electrically induced solenoid force. With no current applied, the valve will free flow from port 1 to port 2. Features Industry common cavity. Manual override option.
Unit weight:
0.18 kg (0.39 lb)
Internal wetted surface area:
130 cm² (20.2 in²)
| Ratings | Pressure Ratings Pressure rating: 248.2 bar (3600 psi) Proof pressure: 268.9 bar (3900 psi) Burst pressure: 751.5 bar (10900 psi) Pressure drop: 20 bar (290 psi) Cartridge only (a) 10.3 bar (150 psi) Cartridge only (b) 5.5 bar (80 psi) Cartridge only (c) Adjustable pressure range: 0 to 206.8 bar (0 to 3000 psi) (a) 0 to 137.9 bar (0 to 2000 psi) (b) 0 to 68.9 bar (0 to 1000 psi) (c) Flow Ratings Flow rating: 11.4 lpm (3 gpm) Port 1 to port 2 (coil de-energized) Maximum internal leakage: 1 ml/min (20 drops/min) Port 2-1, at 3000 psi Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

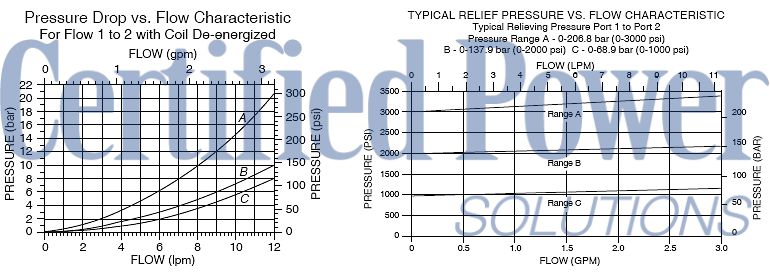

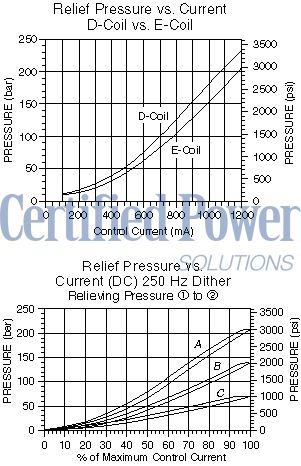

| Performance |   |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS38-20DE-H-J-L D Regulating Pressure Range D A 0 to 206.8 bar (0 to 3000 psi) Pressure Range D B 0 to 138.0 bar (0 to 2000 psi) Pressure Range D C 0 to 68.9 bar (0 to 1000 psi) Pressure Range E Manual Override E BLANK NONE E M Minimum Regulated Pressure Override, 3/16" Internal Hex H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-2X-B
Seal option)
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
