HYDRAFORCE
5122000
$144.50 USD
- HYDRAFORCE
- Material:5122000
- Model:TS10-26AM-0-V-00 PRESSURE CONTROL
- Summary:SOLENOID OPERATED SPOOL TYPE RELIEF VALVE U.S. PATENT # 7,137,406
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

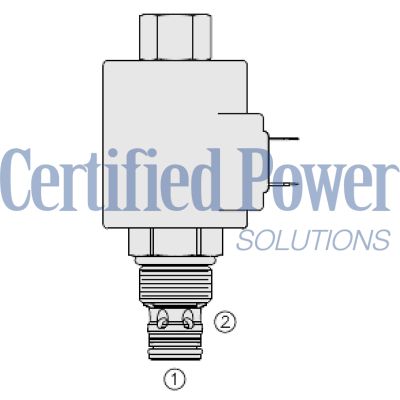

The Hydraforce 5122000 (5122000) is a screw-in, cartridge-style, pilot-operated, spool-type relief valve designed for precise pressure regulation through variable electric current. This TS10-26X model can be finely adjusted across a specific range, with the regulated pressure directly proportional to the input electrical current. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to activate the pilot section by counteracting the solenoid force induced electrically. Without any current applied, the valve relieves at approximately 100 psi [6.9 bar]. The product features standard 12 and 24-volt coils and offers optional waterproof E-Coils rated up to IP69K for enhanced durability in harsh environments. It fits into an industry-common cavity and includes an optional manual override for added control flexibility.
The Hydraforce 5122000 (5122000) is a screw-in, cartridge-style, pilot-operated, spool-type relief valve designed for precise pressure regulation through variable electric current. This TS10-26X model can be finely adjusted across a specific range, with the regulated pressure directly proportional to the input electrical current. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to activate the pilot section by counteracting the solenoid force induced electrically. Without any current applied, the valve relieves at approximately 100 psi [6.9 bar]. The product features standard 12 and 24-volt coils and offers optional waterproof E-Coils rated up to IP69K for enhanced durability in harsh environments. It fits into an industry-common cavity and includes an optional manual override for added control flexibility.
Unit weight:
0.25 kg (0.55 lb)
Internal wetted surface area:
163 cm² (25.2 in²)
TS10-26X
168 cm² (26.1 in²)
TS10-26XM
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 206.8 bar (3000 psi) Port 2 Proof pressure: 344.7 bar (4000 psi) Burst pressure: 827.4 bar (12000 psi) With coil assembled Adjustable pressure range: 6.9 to 206.8 bar (100 to 3000 psi) Model code A 6.9 to 158.6 bar (100 to 2300 psi) Model code b 6.9 to 117.2 bar (100 to 1700 psi) Model code c Flow Ratings Flow rating: 94.6 lpm (25 gpm) At ΔP (cartridge only) port 1 to 2 (coil de-energized) 9.6 bar (190 psi) Maximum pilot flow: 0.76 lpm (0.2 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 34 to 36.7 N-m (25 to 27 ft-lb) Maximum allowable torque: 54.2 N-m (40 ft-lb) Coil nut torque: 9.5 to 13.6 N-m (7 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS10-26DE-H-J-L D Regulating Pressure Range D A 6.9 to 206.8 bar (100 to 3000 psi) Pressure Range D B 6.9 to 158.6 bar (100 to 2300 psi) Pressure Range D C 6.9 to 117.2 bar (100 to 1700 psi) Pressure Range E Manual Override E BLANK NONE E M Minimum Regulated Pressure Override, 3/16" Internal Hex H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-2X-B
X = seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
