HYDRAFORCE
5120828
$244.00 USD
- HYDRAFORCE
- Material:5120828
- Model:PV70-33A-8T-N-12DL SOLENOID VALVE
- Summary:NORMALLY CLOSED ELECTRO PROPORTIONAL VALVE CARTRIDGE
Quantity in stock: 0

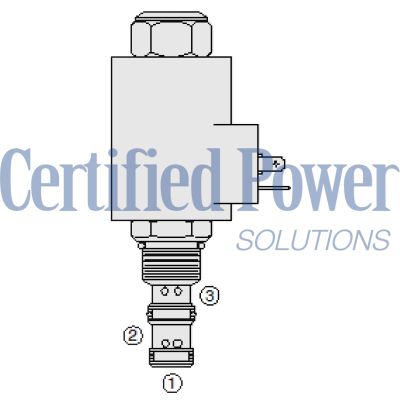

The Hydraforce 5120828 (5120828) is a solenoid-operated, spool-type, normally closed, proportional flow control valve. Specifically designed to function as a proportional flow regulator when used with a pressure compensator, this valve excels in applications requiring precise flow control. Its excellent linearity and hysteresis characteristics ensure smooth and accurate performance. The valve features a hardened spool and cage, which contribute to its durability and long service life. It offers optional coil voltages and terminations to cater to various system requirements, along with an efficient wet-armature construction that enhances its operational efficiency. The cartridges are voltage-interchangeable, providing versatility in different electrical environments. Additionally, the unitized molded coil design ensures robustness, while standard coil waterproofing provides protection against environmental factors. For added convenience in operation, a manual override option is available.
Unit weight:
0.32 kg (0.70 lb)
PV70-33X
0.38 kg (0.83 lb)
Pv70-33mx
0.46 kg (1.02 lb)
Pv70-33gx
Internal wetted surface area:
173.1 cm² (26.8 in²)
Pv7033x
176.3 cm² (27.3 in²)
Pv7033mx and pv70-33gx
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: 0 to 45.4 lpm (0 to 14 gpm) Range A 0 to 37.8 lpm (0 to 10 gpm) Range b 0 to 18.9 lpm (0 to 5 gpm) Range c Maximum internal leakage: 197 ml/min (12 in³/min) Hysteresis flow: lpm (gpm) Maximum Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Electrical Parameters | Note:
With size 70 d-series and e-series coils Valve inductance: 240 mH E-coil 12 V 700 mH E-coil 24 V 200 mH D-coil 12 V 600 mH D-coil 24 V Threshold current: 300 mA Flow range A or b 12 V coil 150 mA Flow range A or b 24 V coil 360 mA Flow range c 12 V coil 180 mA Flow range c 24 V coil Maximum control current: 1500 mA Flow range A or b 12 V coil 750 mA Flow range A or b 24 V coil 1400 mA Flow range c 12 V coil 700 mA Flow range c 24 V coil Dither PWM frequency: 100 to 250 Hz |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 34 to 37 N-m (25 to 27 ft-lb) Maximum allowable torque: 75 N-m (55 ft-lb) Coil nut torque: 14 to 16 N-m (10 to 12 ft-lb) Cover cap torque: 7 to 9 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PV70-33DE-H-J-L D Max Regulated Flow D A 45.4 lpm (14.0 gpm) Max Regulated Flow D B 37.8 lpm (10.0 gpm) Max Regulated Flow D C 18.9 lpm (5.0 gpm) Max Regulated Flow E Manual Override E BLANK NONE E G Variable Position Override, Red Knurled Knob with Cover Cap E M Variable Position Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DS 12 VDC, D-Coil, Dual Spade L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
Seal kit:
SK10-3X-MM (x = N
V seal option
SK10-3U-OO
U seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
70 size D
coils
70 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
