HYDRAFORCE
5111171

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

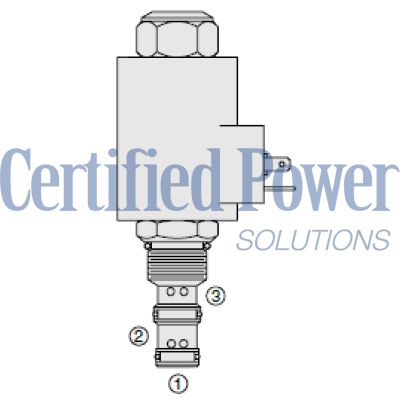

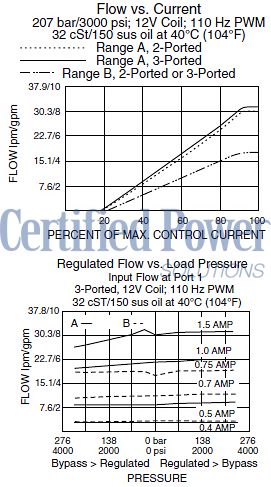

The Hydraforce 5111171 (5111171) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority type proportional flow control regulator. Designed for versatility, it can function as a restrictive type, 2-way pressure compensated proportional flow regulator when port 2 is blocked. With inlet flow at port 1, the valve efficiently regulates priority flow out of port 3, maintaining consistent performance regardless of system working pressure. The flow rate is proportional to the current applied to the solenoid, while any excessive flow will bypass out of port 2. This bypass can be utilized for auxiliary function control; however, it is crucial to avoid dead heading of the priority line by external valving to prevent blocking of the bypass line. In applications where port 2 is blocked in restrictive mode, the flow rate out of port 3 remains proportional to the solenoid's current irrespective of load or pressure at port 3. The PV70-30 boasts excellent linearity and hysteresis characteristics and features a hardened spool and cage for enhanced durability. It offers optional coil voltages and terminations along with efficient wet-armature construction. Cartridges are voltage-interchangeable for added flexibility, and its unitized molded coil design ensures standard coil waterproofing. Additionally, a manual override option is available for increased operational control.
