- Summary:NORMALLY CLOSED PRESSURE COMPENSATED PROPORTIONAL FLOW REGULATOR
Quantity in stock: 0

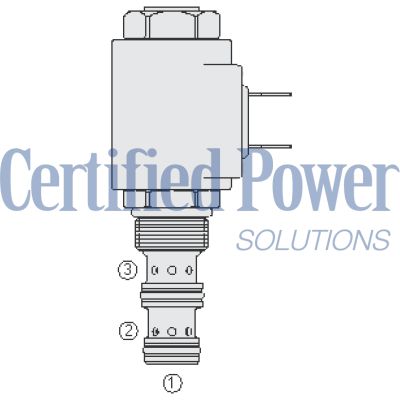

The Hydraforce 5110536 (5110536) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority type proportional flow control regulator. This versatile valve can also function as a restrictive type, 2-way pressure-compensated proportional flow regulator when port 2 is blocked. Designed for precision and efficiency, the PV08-30 model regulates priority flow from port 1 to port 3 regardless of system working pressure, with the flow rate being directly proportional to the current applied to the solenoid. Excessive flow is bypassed out of port 2 and can be utilized for auxiliary functions if needed. It is crucial to avoid dead heading the priority line by external valving to prevent blocking of the bypass line. In restrictive mode applications where bypass port 2 is blocked, the flow rate out of port 3 remains consistent with changes in solenoid current despite varying load pressures at port 3. The valve boasts excellent linearity and hysteresis characteristics due to its hardened spool and cage construction that ensure long-lasting performance. Additionally, it offers optional coil voltages and terminations along with efficient wet-armature construction for enhanced reliability and adaptability in various applications.
Description The PV08-30 is a solenoid operated, pressure compensated, spool type, normally closed, priority type proportional flow control regulator. It also CAN be used as a restrictive type, 2-way, pressure compensated proportional flow regulator (with port 2 blocked). Operation With inlet flow at port 1 the valve will regulate priority flow out of port 3 regardless of system working pressure with flow rate proportional to current applied to the solenoid. The excessive flow will bypass out of port 2. The bypass flow CAN be used for auxiliary function control. Note: avoid dead heading of priority line by external valving to prevent blocking of bypass line. In restrictive mode applications bypass port 2 has to be blocked, flow rate out of port 3 remains proportional to current applied to the solenoid regardless of load (pressure) applied to port 3. Features Excellent linearity and hysteresis characteristics. Hardened spool and cage for long life. Optional coil voltages and terminations. Efficient wet-armature construction.
Cartridge weight:
0.15 kg (0.33 lb)
PV08-30A/30B
0.20 kg (0.45 lb)
PV08-30AM/30BM
0.27 kg (0.59 lb)
PV08-30AG/30BG
Internal wetted surface area:
155 cm² (24.1 in²)
PV08-30AM/30AG/30BM/30BG
152 cm² (23.6 in²)
PV08-30A/30B
Environmental
Corrosion protection:
960 hr salt spray per ASTM B117
GPV08-30XX
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Inlet 207 bar (3000 psi) Regulated and bypass Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: 11.4 lpm (3.0 gpm) Flow range a, regulated, 2-ported 11.4 lpm (3.0 gpm) Flow range a, regulated, 3-ported 5.7 lpm (1.5 gpm) Flow range b, regulated, 2-ported 5.7 lpm (1.5 gpm) Flow range b, regulated, 3-ported 15.2 lpm (4.0 gpm) Flow range a, input nominal, 3-ported 7.6 lpm (2.0 gpm) Flow range b, input nominal, 3-ported 22.8 lpm (6.0 gpm) Flow range a, input maximum, 3-ported 22.8 lpm (6.0 gpm) Flow range b, input maximum, 3-ported Maximum internal leakage: 197 ml/min (12 in³/min) At port 3 with at port 1 (port 2 closed) at 0 current 207 bar (3000 psi) Hysteresis: ±0.9 lpm (±0.25 gpm) Maximum Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 (reference all sheets) |
| Electrical Parameters | Note:
(With EHPR08 E-series and D-series coil) Maximum control current: 1400 ±150 mA 12 V coil 700 ±75 mA 24 V coil Threshold current: 400 ±100 mA 12 V coil 200 ±50 mA 24 V coil Dither PWM frequency: 100 to 200 Hz |
| Performance |  |

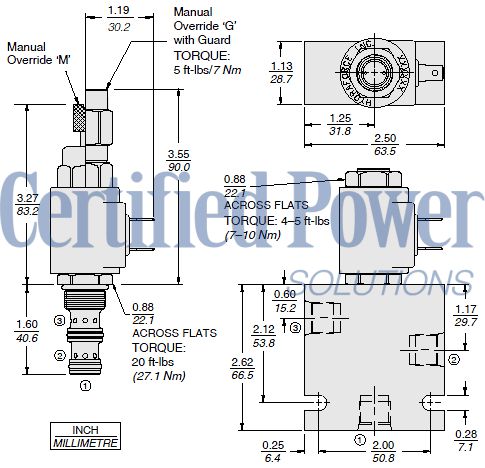

| Installation Specifications | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb Maximum allowable torque: 47.5 N-m (35 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Coil nut and guard nut Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PV08-30DE-H-J-L D Max Regulated Flow D A 11.4 lpm (3.0 gpm) Max Regulated Flow D B 5.7 lpm (1.5 gpm) Max Regulated Flow E Manual Override E BLANK NONE E G Variable Position Override, Red Knurled Knob with Cover Cap E M Variable Position Override, Red Knurled Knob H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
Seal kit:
SK08-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
08-3w valve bodies
Coils:
EHPR size D
coils
EHPR size E
coils
