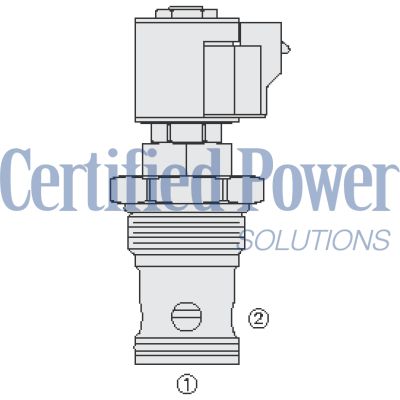

- Model:SF20-22-20T-N-24EG SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY CLOSED
Due to extremely high demand, please call 800-289-1330 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5073119 (5073119) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This device is engineered to serve as a load holding or blocking valve in systems that demand low internal leakage even under high pressure conditions. In its default state, when de-energized, the SF20-22 operates as a check valve, permitting flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts to enable flow from port 2 to port 1 and also allows flow from port 1 to port 2. The valve features a continuous-duty rated coil and a hardened seat designed for longevity and minimal leakage. It offers versatility with optional coil voltages and terminations, and cartridges that are voltage interchangeable. The unitized, molded coil design enhances durability, with optional waterproof E-Coils available that are rated up to IP69K for exceptional protection against environmental factors. Additionally, the valve boasts corrosion-resistant plating and fits an industry common cavity for easy integration into existing systems.
The Hydraforce 5073119 (5073119) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This device is engineered to serve as a load holding or blocking valve in systems that demand low internal leakage even under high pressure conditions. In its default state, when de-energized, the SF20-22 operates as a check valve, permitting flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts to enable flow from port 2 to port 1 and also allows flow from port 1 to port 2. The valve features a continuous-duty rated coil and a hardened seat designed for longevity and minimal leakage. It offers versatility with optional coil voltages and terminations, and cartridges that are voltage interchangeable. The unitized, molded coil design enhances durability, with optional waterproof E-Coils available that are rated up to IP69K for exceptional protection against environmental factors. Additionally, the valve boasts corrosion-resistant plating and fits an industry common cavity for easy integration into existing systems.
Unit weight:
1.43 lb (0.65 kg)
Internal wetted surface area:
378 cm² (58.6 in²)
| Ratings | Pressure Ratings Pressure rating: 1.4 to 345 bar (20 to 5000 psi) Flow Ratings Flow rating: 303 lpm (80 gpm) Maximum internal leakage: 10 drops/min Max at 345 bar (5000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

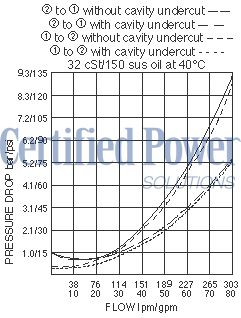

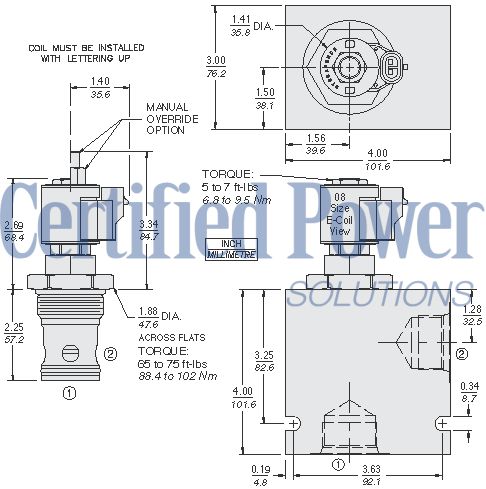

| Performance |  |
| Installation Specifications | Cavity:
VC20-2 20-size-2-way Cavities Cartridge installation torque: 88.4 to 102 N-m (65 to 75 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SF20-22E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 16T Aluminum SAE 16 H 20T Aluminum SAE 20 H 16TD Ductile Iron SAE 16 H 20TD Ductile Iron SAE 20 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK20-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
20-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
