HYDRAFORCE
5062062
$142.25 USD
- HYDRAFORCE
- Material:5062062
- Model:HSP16-20A-0-U-0 SOLENOID VALVE
- Summary:PROPORTIONAL CARTRIDGE VALVE 2 PORTS, NORMALLY CLOSED
Quantity in stock: 0

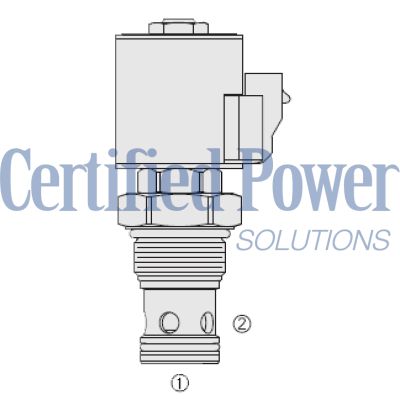

The Hydraforce 5062062 (5062062) is a high-pressure, 2-way, piloted, poppet-type, proportional, normally closed screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking in load-holding applications. In its default de-energized state, the HSP16-20X blocks flow from ports 2 to 1. However, it allows flow from ports 1 to 2 once the spring forces are overcome. When energized, the valve permits flow from ports 2 to 1 while significantly restricting flow from ports 1 to 2. The product features a continuous-duty rated coil and offers a manual override option and linear metering option for enhanced control and customization. It fits an industry-common cavity and comes with waterproof E-Coils rated up to IP69K for durability in harsh environments. All HyPerformance\u2122 products undergo rigorous testing to meet NFPA specification T2.6.1., with tests conducted at a verification level of 90% and an assurance of 99%, ensuring reliability and performance in demanding conditions.
Unit weight:
0.55 kg (1.22 lb)
HSP16-20 without coil and nut
0.56 kg (1.24 lb)
HSP16-20T without coil and nut
Internal wetted surface area:
292 cm² (45.3 in²)
HSP16-20
289 cm² (44.8 in²)
HSP16-20T
| Ratings | Pressure Ratings Pressure rating: 350 bar (5075 psi) 420 bar (6090 psi) (10% cycle life) Proof pressure: 690 bar (10000 psi) Burst pressure: 1380 bar (20000 psi) Flow Ratings Flow rating: 61 lpm (16 gpm) With compensation 5.5 bar (80 psi) 102 lpm (27 gpm) With compensation 11.0 bar (160 psi) Maximum internal leakage: 7 drops/min With 350 bar (5075 psi) at port 2 Other Ratings Cycle life: One million cycles Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

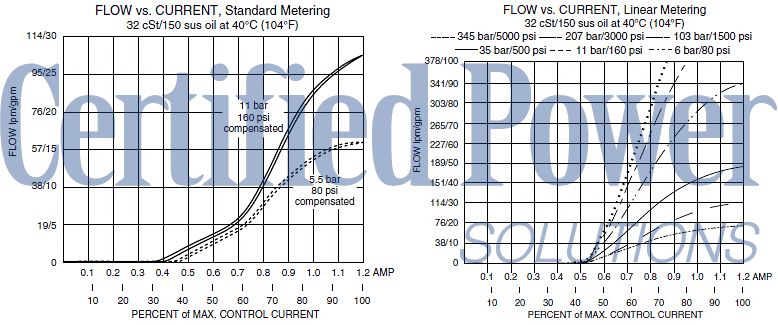

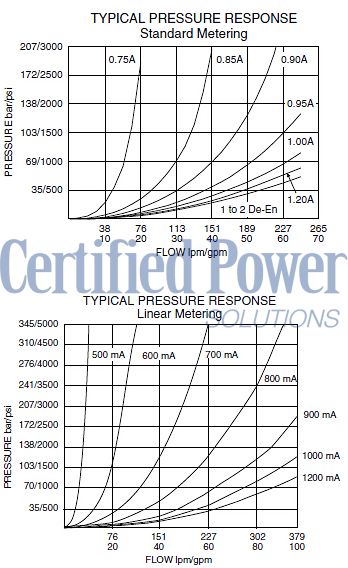

| Performance |   |

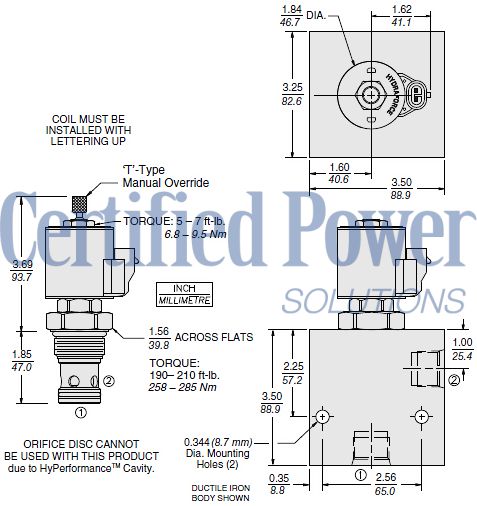

| Installation Specifications | Cavity:
HVC16-2 16-size-2-way Cavities Cartridge installation torque: 258 to 285 N-m (190 to 210 ft-lb) Steel/ductile iron cavity 237 to 250 N-m (175 to 185 ft-lb) Aluminum cavity Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION HSP16-20DE-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E T Variable Position Override, Red Knurled Knob H Line Body H 0 No Body J Seal J N Buna-N J V Fluorocarbon J U PPDI Urethane L Coil L 0 No Coil L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20ER 20 VDC, E-Coil, Deutsch L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 |
Seal kit:
SK16-2N-M
Buna N
SK16-2V-M
Fluorocarbon
SK16-2U-O
Urethane
Seal kit installation instructions
Housings:
Available
16-2w valve bodies
Coils:
10 size E
coils
| Product PDF File | Download Product PDF File |
