HYDRAFORCE
5060946

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

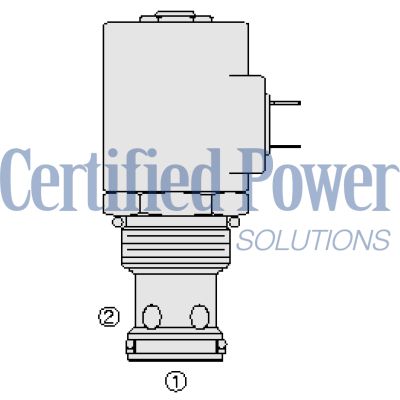

The Hydraforce SV16-22-16T-N-24DG (5060946) is a solenoid-operated, 2-port, normally closed, poppet-type hydraulic cartridge valve designed for load-holding or blocking applications requiring minimal internal leakage. This screw-in valve operates as a check valve when de-energized, allowing flow from port 1 to port 2 while blocking the reverse flow. Upon energization, the poppet lifts to enable flow from port 2 to port 1 and allows bidirectional flow between the ports. It features a continuous-duty rated coil and a hardened seat for longevity and reduced leakage. The valve is adaptable with optional coil voltages and terminations, an efficient wet-armature construction, interchangeable voltage cartridges, a unitized molded coil design, and an optional manual override. Additionally, it offers waterproof E-Coils rated up to IP69K for enhanced durability in harsh environments. Designed with industry-common cavities (VC16-2), it supports installation in various systems using compatible housings like the 16-2w valve bodies. The valve can withstand pressures up to 241 bar (3500 psi) with maximum internal leakage of only three drops per minute at this pressure level. It operates efficiently across a wide temperature range depending on seal type: -40 to 120 \u00b0C with buna-n seals, -30 to 205 \u00b0C with fluorocarbon seals, and -50 to 80 \u00b0C with polyurethane seals. Constructed from steel with hardened work surfaces and zinc-plated exposed surfaces, this robust component ensures reliability in demanding conditions. Seal kits are available for maintenance purposes along with installation instructions for ease of use.
