HYDRAFORCE
5042520

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

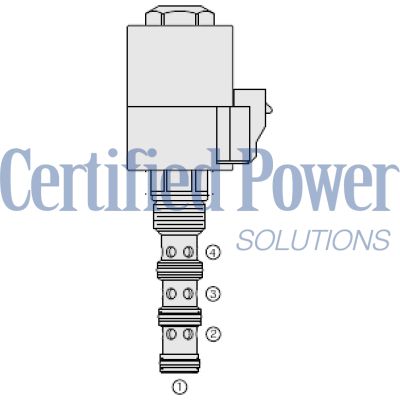

The Hydraforce 5042520 (5042520) is a solenoid operated, 3-position, 4-way, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust hydraulic system applications. This valve operates by allowing flow between multiple ports depending on its energized or de-energized state. Specifically, when de-energized, the SVR facilitates flow from port 1 to port 2 and from port 3 to port 4. Conversely, when energized, the spool shifts to direct flow from port 1 to port 4 and from port 3 to port 2. Users should consult with the factory regarding configurations where port 2 serves as an inlet. Noteworthy features of this model include a continuous-duty rated coil that enhances its operational reliability and durability in demanding environments. The valve components such as the precision spool and cage are hardened for extended life under rigorous conditions. It offers flexibility in customization with options for different coil voltages and terminations according to specific requirements. Additionally, a manual override option is available for enhanced control. The design ensures that all ports can be fully pressurized, enhancing the valve's versatility across various applications. The heavy-duty waterproof E-Coils are rated up to IP69K, offering superior protection against dust and water ingress which makes it suitable for outdoor or harsh environmental conditions where moisture or particulate matter is a concern.
