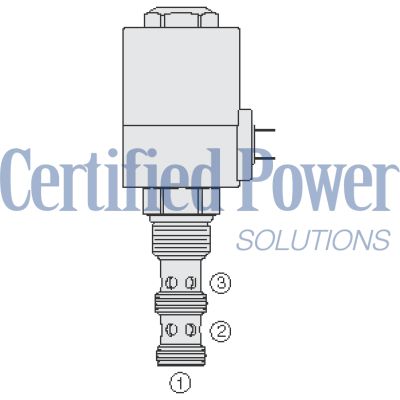

- Model:SV12-34-12T-N-24ES SOLENOID VALVE
- Summary:SOLENOID VALVE SPOOL, 3 PORT, 2 POSITION
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce SV12-34-12T-N-24ES (5042473) is a robust solenoid-operated spool valve designed for precise hydraulic control. This three-way, two-position, direct-acting valve ensures reliable operation by allowing flow between specified ports when in different states; it blocks flow at one port when de-energized and shifts to open flow between another set of ports upon energization. Notably, all ports can be fully pressurized, though one is not intended as an inlet. Engineered for durability and performance, the SV12-34-12T-N-24ES features a hardened precision spool and cage which enhance its lifespan under continuous use. It is equipped with heavy-duty waterproof E-Coils that are rated up to IP69K, making it suitable for harsh environmental conditions. The valve also includes manual override options and offers optional coil voltages and terminations to accommodate diverse application requirements. This model is particularly noted for its continuous-duty rated coil, ensuring reliable performance even during extended operating periods. Key specifications include a wide range of operating temperatures with different seal options (Buna N, Viton, Polyurethane) providing versatility depending on the fluid temperature in use. The valve operates efficiently within a fluid viscosity range of 2.8 to 380 cSt and supports maximum operating contamination levels as specified by ISO standards. Ideal for applications requiring precise control over fluid direction and flow within hydraulic systems, the SV12-34-12T-N-24ES combines high performance with resilience, ensuring minimal downtime and maintenance requirements. Whether deployed in mobile hydraulics or industrial machinery, this valve stands out for its reliability and adaptability to various operational demands.
The Hydraforce SV12-34-12T-N-24ES (5042473) is a robust solenoid-operated spool valve designed for precise hydraulic control. This three-way, two-position, direct-acting valve ensures reliable operation by allowing flow between specified ports when in different states; it blocks flow at one port when de-energized and shifts to open flow between another set of ports upon energization. Notably, all ports can be fully pressurized, though one is not intended as an inlet. Engineered for durability and performance, the SV12-34-12T-N-24ES features a hardened precision spool and cage which enhance its lifespan under continuous use. It is equipped with heavy-duty waterproof E-Coils that are rated up to IP69K, making it suitable for harsh environmental conditions. The valve also includes manual override options and offers optional coil voltages and terminations to accommodate diverse application requirements. This model is particularly noted for its continuous-duty rated coil, ensuring reliable performance even during extended operating periods. Key specifications include a wide range of operating temperatures with different seal options (Buna N, Viton, Polyurethane) providing versatility depending on the fluid temperature in use. The valve operates efficiently within a fluid viscosity range of 2.8 to 380 cSt and supports maximum operating contamination levels as specified by ISO standards. Ideal for applications requiring precise control over fluid direction and flow within hydraulic systems, the SV12-34-12T-N-24ES combines high performance with resilience, ensuring minimal downtime and maintenance requirements. Whether deployed in mobile hydraulics or industrial machinery, this valve stands out for its reliability and adaptability to various operational demands.
Unit weight:
0.39 kg (0.87 lb)
Internal wetted surface area:
330 cm² (51.2 in²)
| Ratings | Pressure Ratings Pressure rating: See performance chart Proof pressure: 483 bar (7000 psi) Burst pressure: 690 bar (10000 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 410 ml/min (25 in³/min) Max at 241 bar (3500 psi); per NFPA/t 3.5.15m-1986 Other Ratings Cycle life: 1 million cycles at rated pressure and flow Response: 60 ms Pull-in, indication of shift with nominal voltage 35 ms Drop-out, indication of shift with nominal voltage 100 ms Pull-in, per NFPA/T3.5.30-19XX 80 ms Drop-out, per NFPA/T3.5.30-19XX Environmental rating: Ip67 (with integral connectors) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

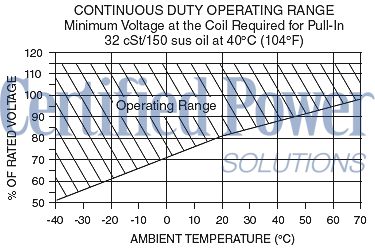

| Performance |   |

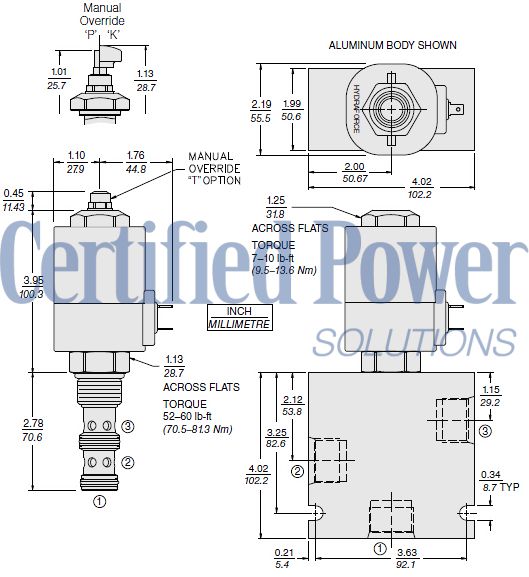

| Installation Specifications | Cavity:
VC12-3 12-size-3-way Cavities Cartridge installation torque: 70.5 to 81.4 N-m (52 to 60 ft-lb) Coil nut torque: 9.5 to 13.6 N-m (7 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-34E-H-J-L E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button E T Variable Position Override, Slotted Screw H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12EG 12 VDC, E-Coil, DIN 43650 L 12EL 12 VDC, E-Coil, Dual Lead Wires L 12EL/W 12 VDC, E-Coil, Dual Lead Wires with WeatherPak L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12ES 12 VDC, E-Coil, Dual Spade L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24EG 24 VDC, E-Coil, DIN 43650 L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24ES 24 VDC, E-Coil, Dual Spade |
Seal kit:
SK12-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
Coils:
12 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
