- Material:5042402V
- Model:SV12-34K-0-V-00 SOLENOID VALVE
- Summary:SOLENOID VALVE SPOOL, 3 PORT, 2 POSITION
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

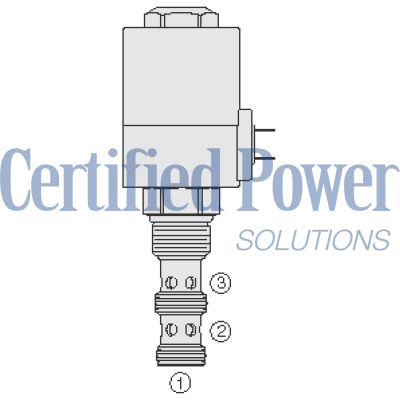

The Hydraforce 5042402V (5042402V) is a solenoid operated, two-position, three-way, direct acting spool valve designed for versatile hydraulic flow control. This compact valve operates by allowing flow between specified ports when in different states of energization. In its default deenergized state, the SVX directs flow from port 1 to port 2 while blocking port 3. Upon energization, the internal spool shifts to connect port 2 to port 3, simultaneously shutting off port 1. Notably, while port 3 can be fully pressurized, it is not designed as an inlet. This model stands out due to its robust construction and reliability in demanding applications. It features a hardened precision spool and cage that ensure longevity even under harsh conditions. The valve is equipped with continuous-duty rated coils and offers manual override options which enhance its operational flexibility. Additionally, it supports optional coil voltages and terminations to accommodate varying electrical requirements. For enhanced durability and suitability for outdoor or rugged environments, the Hydraforce 5042402V includes heavy-duty waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature, high-pressure water jets. This makes the valve an excellent choice for mobile equipment and industrial applications where exposure to elements is a concern.
The Hydraforce 5042402V (5042402V) is a solenoid operated, two-position, three-way, direct acting spool valve designed for versatile hydraulic flow control. This compact valve operates by allowing flow between specified ports when in different states of energization. In its default deenergized state, the SVX directs flow from port 1 to port 2 while blocking port 3. Upon energization, the internal spool shifts to connect port 2 to port 3, simultaneously shutting off port 1. Notably, while port 3 can be fully pressurized, it is not designed as an inlet. This model stands out due to its robust construction and reliability in demanding applications. It features a hardened precision spool and cage that ensure longevity even under harsh conditions. The valve is equipped with continuous-duty rated coils and offers manual override options which enhance its operational flexibility. Additionally, it supports optional coil voltages and terminations to accommodate varying electrical requirements. For enhanced durability and suitability for outdoor or rugged environments, the Hydraforce 5042402V includes heavy-duty waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature, high-pressure water jets. This makes the valve an excellent choice for mobile equipment and industrial applications where exposure to elements is a concern.
Unit weight:
0.39 kg (0.87 lb)
Internal wetted surface area:
330 cm² (51.2 in²)
| Ratings | Pressure Ratings Pressure rating: See performance chart Proof pressure: 483 bar (7000 psi) Burst pressure: 690 bar (10000 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 410 ml/min (25 in³/min) Max at 241 bar (3500 psi); per NFPA/t 3.5.15m-1986 Other Ratings Cycle life: 1 million cycles at rated pressure and flow Response: 60 ms Pull-in, indication of shift with nominal voltage 35 ms Drop-out, indication of shift with nominal voltage 100 ms Pull-in, per NFPA/T3.5.30-19XX 80 ms Drop-out, per NFPA/T3.5.30-19XX Environmental rating: Ip67 (with integral connectors) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC12-3 12-size-3-way Cavities Cartridge installation torque: 70.5 to 81.4 N-m (52 to 60 ft-lb) Coil nut torque: 9.5 to 13.6 N-m (7 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-34E-H-J-L E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button E T Variable Position Override, Slotted Screw H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12EG 12 VDC, E-Coil, DIN 43650 L 12EL 12 VDC, E-Coil, Dual Lead Wires L 12EL/W 12 VDC, E-Coil, Dual Lead Wires with WeatherPak L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12ES 12 VDC, E-Coil, Dual Spade L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24EG 24 VDC, E-Coil, DIN 43650 L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24ES 24 VDC, E-Coil, Dual Spade |
Seal kit:
SK12-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
Coils:
12 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
