HYDRAFORCE
5042209
$207.00 USD
- HYDRAFORCE
- Material:5042209

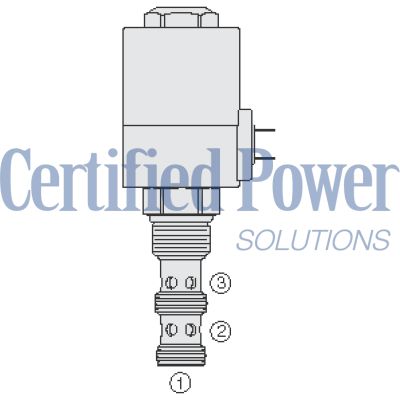

- Model:SV12-31-0-N-12EG SOLENOID VALVE
- Summary:SOLENOID VALVE SPOOL, 3 PORT, 2 POSITION
Due to extremely high demand, please call 800-289-1330 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5042209 (5042209) is a solenoid operated, two-position, three-way, direct acting spool valve designed for versatile hydraulic fluid applications. Crafted to operate efficiently with mineral-based or synthetic fluids that possess lubrication properties, this valve serves as a bidirectional selector in various hydraulic systems. It features a continuous-duty rated coil which ensures reliable operation under sustained use. The precision-engineered spool and cage are hardened to enhance durability and extend the lifespan of the valve under demanding conditions. The 5042209 offers flexibility in installation and operation, with optional coil voltages and terminations available to suit different system requirements. Additionally, all ports on the valve can withstand full pressurization, which enhances its adaptability across multiple hydraulic circuits. Its heavy-duty waterproof E-Coils are rated up to IP69K, providing robust protection against dust and high-pressure water ingress, making it suitable for harsh environments.
The Hydraforce 5042209 (5042209) is a solenoid operated, two-position, three-way, direct acting spool valve designed for versatile hydraulic fluid applications. Crafted to operate efficiently with mineral-based or synthetic fluids that possess lubrication properties, this valve serves as a bidirectional selector in various hydraulic systems. It features a continuous-duty rated coil which ensures reliable operation under sustained use. The precision-engineered spool and cage are hardened to enhance durability and extend the lifespan of the valve under demanding conditions. The 5042209 offers flexibility in installation and operation, with optional coil voltages and terminations available to suit different system requirements. Additionally, all ports on the valve can withstand full pressurization, which enhances its adaptability across multiple hydraulic circuits. Its heavy-duty waterproof E-Coils are rated up to IP69K, providing robust protection against dust and high-pressure water ingress, making it suitable for harsh environments.
Unit weight:
0.39 kg (0.87 lb)
Std. valve
Internal wetted surface area:
339 cm² (52.5 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 483 bar (7000 psi) Burst pressure: 690 bar (10000 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 410 ml/min (25 in³/min) Max at 240 bar (3500 psi); per NFPA/t 3.5.15m-1986 Other Ratings Cycle life: One million cycles Response: 45 ms Pull-in, indication of shift with nominal voltage 20 ms Drop-out, indication of shift with nominal voltage 100 ms Pull-in, per NFPA/T3.5.30-19XX 100 ms Drop-out, per NFPA/T3.5.30-19XX Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC12-3 12-size-3-way Cavities Cartridge installation torque: 70.5 to 81.4 N-m (52 to 60 ft-lb) Maximum allowable torque: 122 N-m (90 ft-lb) Coil nut torque: 9.5 to 13.6 N-m (7 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-31E-H-J-L E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button E T Variable Position Override, Slotted Screw H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12EG 12 VDC, E-Coil, DIN 43650 L 12EL 12 VDC, E-Coil, Dual Lead Wires L 12EL/W 12 VDC, E-Coil, Dual Lead Wires with WeatherPak L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12ES 12 VDC, E-Coil, Dual Spade L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24EG 24 VDC, E-Coil, DIN 43650 L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24ES 24 VDC, E-Coil, Dual Spade |
Seal kit:
SK12-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
Coils:
12 size E
coils
