- Model:SV12-28-0-N-00 SOLENOID VALVE
- Summary:SOLENOID VALVE BI-DIRECTIONAL, NORMALLY CLOSED
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

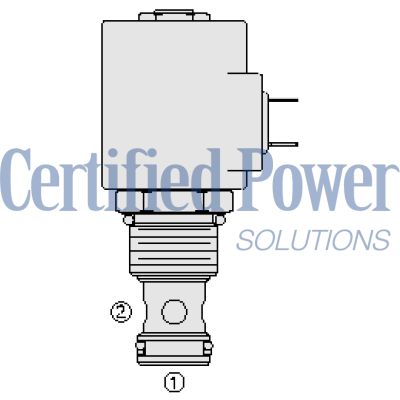

The Hydraforce SV12-28-0-N-00 (5042150) is a solenoid-operated, 2-way, normally closed, bidirectional, screw-in hydraulic cartridge valve that excels in applications requiring low internal leakage in both directions. This valve is particularly designed to function as a load holding or blocking valve. Its continuous-duty rated coil and hardened seat ensure long life and minimal leakage. The SV12-28-0-N-00 offers optional coil voltages and terminations, which enhances its adaptability for various operational requirements. Efficient wet-armature construction and voltage interchangeable cartridges highlight the valve’s design efficiency. The unitized, molded coil design contributes to its robustness, while a manual override option provides additional operational flexibility. For environments requiring enhanced protection against moisture, optional waterproof E-Coils are available that are rated up to IP69K. This model supports a range of fluid temperatures from -40°C to 100°C with different seals options such as Buna N, Viton, and Polyurethane ensuring versatility across various operating environments. It has a maximum allowable operating contamination level as per ISO standards which ensures reliability even in demanding conditions. The SV12-28-0-N-00 also features a compact size with an approximate weight of 0.23 kg and an internal wetted surface area of 16 mm². Installation specifications include a cavity VC10-2 size for 2-way cavities and cartridge installation torque between 20 to 34 Nm, ensuring ease of installation without orientation restrictions. Accessories such as seal kits (SKXM) with installation instructions and available housings with valve bodies enhance its usability across different system configurations.
The Hydraforce SV12-28-0-N-00 (5042150) is a solenoid-operated, 2-way, normally closed, bidirectional, screw-in hydraulic cartridge valve that excels in applications requiring low internal leakage in both directions. This valve is particularly designed to function as a load holding or blocking valve. Its continuous-duty rated coil and hardened seat ensure long life and minimal leakage. The SV12-28-0-N-00 offers optional coil voltages and terminations, which enhances its adaptability for various operational requirements. Efficient wet-armature construction and voltage interchangeable cartridges highlight the valve’s design efficiency. The unitized, molded coil design contributes to its robustness, while a manual override option provides additional operational flexibility. For environments requiring enhanced protection against moisture, optional waterproof E-Coils are available that are rated up to IP69K. This model supports a range of fluid temperatures from -40°C to 100°C with different seals options such as Buna N, Viton, and Polyurethane ensuring versatility across various operating environments. It has a maximum allowable operating contamination level as per ISO standards which ensures reliability even in demanding conditions. The SV12-28-0-N-00 also features a compact size with an approximate weight of 0.23 kg and an internal wetted surface area of 16 mm². Installation specifications include a cavity VC10-2 size for 2-way cavities and cartridge installation torque between 20 to 34 Nm, ensuring ease of installation without orientation restrictions. Accessories such as seal kits (SKXM) with installation instructions and available housings with valve bodies enhance its usability across different system configurations.
Unit weight:
0.27 kg (0.60 lb)
Internal wetted surface area:
16774.2 mm² (26.0 in²)
| Ratings | Pressure Ratings Pressure rating: 240 bar (3500 psi) Flow required to reseat the internal poppet check balls when increasing the differential pressure across A de-energized valve from zero psid (zero bar) is max 2.8 lpm (0.75 gpm) Flow Ratings Maximum internal leakage: 7 drops/min Max at 240 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:

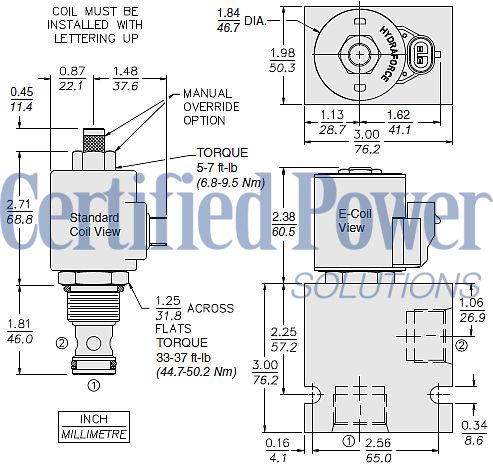

VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.8 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 73.4 N-m (55 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-28E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK12-2X-M
X = seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
