HYDRAFORCE
5042018

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

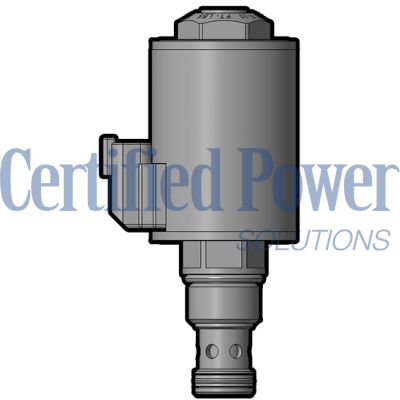

The Hydraforce 5042018 (5042018) is a solenoid-operated, 2-port, normally closed, direct-acting, spool-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a bidirectional blocking valve. In its operation, the SV model remains closed when de-energized, effectively blocking flow in both directions. Upon energization, the valve’s spool shifts to permit flow in both directions, making it versatile for various hydraulic applications. Key features of the Hydraforce 5042018 include a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. The valve offers optional coil voltages and terminations to accommodate different electrical requirements. It boasts an efficient wet-armature construction and interchangeable voltage cartridges that enhance its flexibility and utility in multiple systems. The unitized, molded coil design contributes to its robustness and reliability in demanding environments. Additionally, the Hydraforce 5042018 provides a manual override option which can be crucial during maintenance or emergency situations where electronic control may not be feasible. For environments requiring enhanced protection against moisture and dust, optional waterproof E-Coils are available, rated up to IP69K. This feature ensures that the valve operates effectively in harsh conditions. Lastly, it is designed with a cost-effective cavity that simplifies installation and maintenance while reducing overall system costs.
