HYDRAFORCE
5040899

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

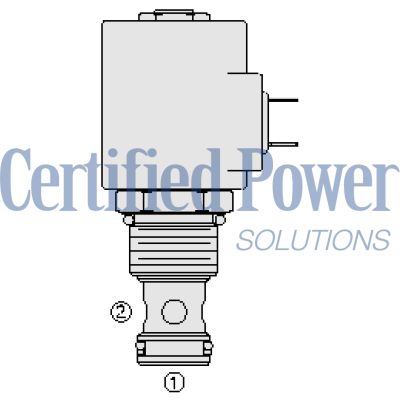

The Hydraforce SV12-20-12T-N-24ER (5040899) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load holding or blocking valve in systems that require low internal leakage. When de-energized, the SV12-20-12T-N-24ER acts as a check valve, permitting flow from port 1 to port 2 while blocking flow in the reverse direction. Upon energization, the poppet lifts to allow flow from port 2 to port 1, although this flow is severely restricted. Key features of this model include a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. It offers optional coil voltages and terminations and boasts efficient wet-armature construction. The cartridges are voltage interchangeable with a unitized, molded coil design that enhances durability and performance reliability. Additionally, it includes a manual override option and can be equipped with optional waterproof E-Coils rated up to IP67 for enhanced environmental protection. The Hydraforce SV12-20-12T-N-24ER supports various seal materials accommodating a wide range of temperature conditions: from -40°C to +120°C with Buna N seals, -26°C to +204°C with Fluorocarbon seals, and -54°C to +107°C with Polyurethane seals. Its robust design allows it to handle pressures up to 240 bar (3500 psi) and it is capable of operating within fluid viscosity ranges from 7.4 to 420 cSt. This makes it an adaptable solution for different hydraulic applications requiring precise control over flow and pressure within challenging operational environments.
