HYDRAFORCE
5040182
$310.25 USD
- HYDRAFORCE
- Material:5040182

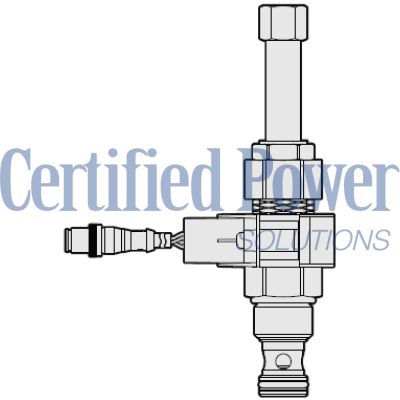

- Model:SV12-P23A-0-N-0-M3 SOLENOID
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 PORT, NORMALLY OPEN WITH INTEGRAL POSITION SENSOR
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5040182 (5040182) is a solenoid-operated, 3-port, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to serve as a load holding or blocking valve in systems where low internal leakage is critical. The operation of the 5040182 is straightforward: when de-energized, it allows hydraulic flow from port 1 to port 2 and from port 2 to port 3. Upon energization, the valve shifts to block flow from port 1 to port 2, while allowing flow from port 2 to port 3 after overcoming the solenoid force. This model incorporates several key features enhancing its functionality and durability. It includes an integral position sensor that provides real-time feedback on the valve's status, whether shifted or not. The continuous-duty rated coil ensures reliable operation even under extended periods of use. The hardened seat within the valve contributes to its long life and maintains low leakage levels critical for efficient system performance. Additional attributes of the Hydraforce 5040182 enhance its adaptability and resilience in various environments. These include optional coil voltages and terminations which allow customization based on specific application requirements. Its efficient wet-armature construction minimizes power loss and maximizes hydraulic control. For environments demanding robust performance against elements, this model features waterproof E-Coils rated up to IP69K standard and unitized, molded coil designs that are resilient against harsh conditions evidenced by a 500-hour salt-spray rating on its solenoid tubes and coils. These specifications ensure that the Hydraforce 5040182 valve remains a reliable component in hydraulic systems demanding precision and longevity.
The Hydraforce 5040182 (5040182) is a solenoid-operated, 3-port, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to serve as a load holding or blocking valve in systems where low internal leakage is critical. The operation of the 5040182 is straightforward: when de-energized, it allows hydraulic flow from port 1 to port 2 and from port 2 to port 3. Upon energization, the valve shifts to block flow from port 1 to port 2, while allowing flow from port 2 to port 3 after overcoming the solenoid force. This model incorporates several key features enhancing its functionality and durability. It includes an integral position sensor that provides real-time feedback on the valve's status, whether shifted or not. The continuous-duty rated coil ensures reliable operation even under extended periods of use. The hardened seat within the valve contributes to its long life and maintains low leakage levels critical for efficient system performance. Additional attributes of the Hydraforce 5040182 enhance its adaptability and resilience in various environments. These include optional coil voltages and terminations which allow customization based on specific application requirements. Its efficient wet-armature construction minimizes power loss and maximizes hydraulic control. For environments demanding robust performance against elements, this model features waterproof E-Coils rated up to IP69K standard and unitized, molded coil designs that are resilient against harsh conditions evidenced by a 500-hour salt-spray rating on its solenoid tubes and coils. These specifications ensure that the Hydraforce 5040182 valve remains a reliable component in hydraulic systems demanding precision and longevity.
Unit weight:
0.61 kg (1.35 lb)
SV12-P23A
Internal wetted surface area:
302 cm² (46.8 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 113.6 lpm (30 gpm) Maximum internal leakage: 5 drops/min Max at 207 bar (3000 psi) 0.4 lpm (0.1 gpm) Typical flow (leakage) in transition at 207 bar (3000 psi). (see "Flow vs % Valve Shift" graph for flow in transition from valve close to valve open). Other Ratings Response: 61 ms Pull-in. Response times measured per NFPA/T3.5.30-2008 *Inlet pressure at port 2 is 207 bar (3000 psi) *Valve oriented vertically and purged of air 202 ms Drop-out. Response times measured per NFPA/T3.5.30-2008 *Inlet pressure at port 2 is 207 bar (3000 psi) *Valve oriented vertically and purged of air Minimum pull-in voltage: 10.2 Vdc 12 Vdc coil Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals *See Position sensor operating temperature* -54 to 107 °C (-65 to 225 °F) With urethane seals *See Position sensor operating temperature* Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Position sensor operating temperature: -40 to 110 °C (-40 to 230 °F) Sensor element operating temperature limits the operating temperature of the entire assembly |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.9 to 50.3 N-m (33 to 37 ft-lb) Coil nut torque: 5.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-P23AE-H-J-L-M E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
| Position Sensor Specifications | Electrical Parameters Supply voltage: 9 to 32 Vdc Vcc Output voltage with target present: Vcc Output clamp current: 40 to 65 mA For Vcc up to 32 Vdc Ratings ESD: ±8 kV Air discharge EMI: 30 V/m From 400 MHz to 2 GHz IP rating: IP67 Vibration: 10 G 10 to 2000 Hz sinosudial Mechanical shock: 50 G 11 ms, half-wave sinosudial Position sensor operating temperature: -40 to 110 °C (-40 to 230 °F) Sensor element operating temperature limits the operating temperature of the entire assembly Properties Connector: Deutsch DT04-4P Option N3 (dual output) M12 Option M3 (dual output) |
| Wiring Diagrams |   |
Seal kit:
SK12-2X-T
X = Seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size E
coils
10 size D
coils
