HYDRAFORCE
5039270
$185.75 USD
- HYDRAFORCE
- Material:5039270
- Model:SP10-57F-0-N-12ER SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 3 POSITION, 5 PORT, CLOSED CENTER SPOOL
Quantity in stock: 0
The Hydraforce 5039270 (5039270) is a high-performance, direct-acting position, port proportional directional control valve designed for efficient hydraulic fluid management. This screw-in cartridge type valve features an integral load sensing capability, making it ideal for applications requiring precise control and fast response times. The hardened precision spool and cage enhance durability and ensure long service life under rigorous conditions. The model boasts optional coil voltages and terminations, allowing customization to meet various operational requirements. Additionally, the cartridges are voltage interchangeable which provides flexibility in maintenance and replacement processes. For environments demanding robust performance, the optional waterproof ECoils are rated up to IP69K, ensuring protection against ingress of dust and high-temperature, high-pressure water jets. This makes the Hydraforce 5039270 suitable for use in a wide range of equipment where reliability and precision are critical.
Description This valve is a direct - acting 3 position, 5 port proportional directional control. With port 1 as a load sense port it is a screw in cartridge type for use with general purpose hydraulic fluids. Features Fast response time. Integral load sensing. Hardened precision spool and cage for long life. Optional coil voltages and terminations Cartridges are voltage interchangeable. Optional waterproof E-Coils rated up to IP69K.
Unit weight:
0.29 kg (0.64 lb)
Internal wetted surface area:
268 cm² (41.5 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Flow Ratings Flow rating: 22.7 lpm (6.0 gpm) Maximum internal leakage: 1016 ml/min (62 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 Response: 41 ms S1 nominal, pull-in 6 ms S1 nominal, drop-out 30 ms S2 nominal, pull-in 4 ms S2 nominal, drop-out |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

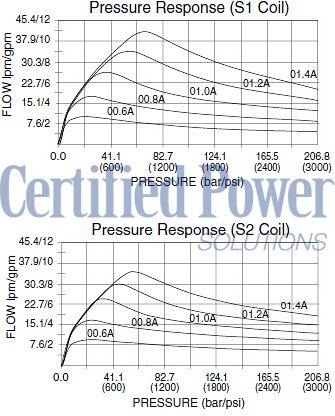

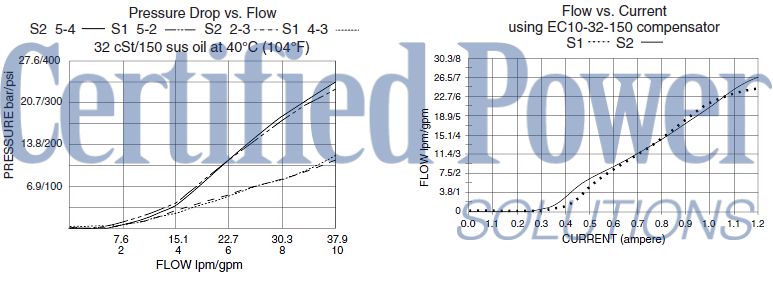

| Performance |   |

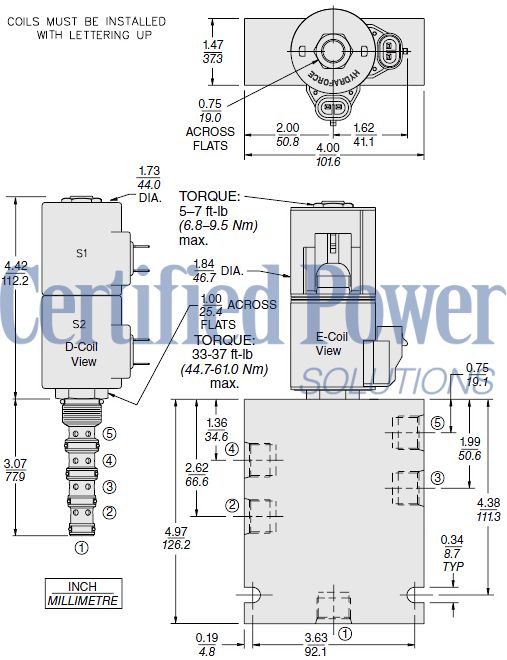

| Installation Specifications | Cavity:
VC10-5 10-size-5-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) 61.0 N-m (45 ft-lb) Maximum Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP10-57F-H-J-L H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-5X-MMMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-5w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product PDF File | Download Product PDF File |
