HYDRAFORCE
5039111V
$215.25 USD
- HYDRAFORCE
- Material:5039111V

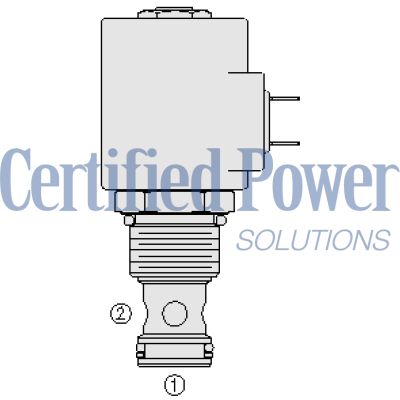

- Model:SP12-20-12T-V-24DG SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 2 PORT, NORMALLY CLOSED
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce SP12-20-12T-V-24DG (5039111V) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. When de-energized, it functions as a check valve, allowing fluid flow from one port to another while blocking the opposite flow direction. Upon energization, the poppet lifts to permit fluid flow in the reverse direction. The SP12-20-12T-V-24DG features a continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance. It includes a manual override option and can be equipped with optional waterproof E-Coils rated up to IP69K for enhanced environmental protection. The valve fits an industry common cavity which simplifies installation processes across various applications. For technical specifications, this model offers a pressure rating up to 240 bar (3500 psi), with proof pressure at 350 bar (5075 psi) and burst pressure reaching up to 700 bar (10150 psi). The maximum recommended pressure drop is specified at 70 bar (1015 psi). Flow ratings are detailed in performance graphs available for specific configurations, including standard and 'A' metering poppet options which vary in hysteresis and internal leakage metrics. Operating temperatures range based on seal material: from -40°C to 100°C (-40°F to 212°F) with Buna N seals, higher with fluorocarbon or polyurethane seals. It supports mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt and tolerates maximum operating contamination levels as per ISO standards. In terms of installation and maintenance, the SP12-20-12T-V-24DG has no orientation restrictions and requires specific torque settings during cartridge installation and coil nut securing. Various accessories like seal kits and housings are available to ensure compatibility and ease of use in diverse operational setups.
The Hydraforce SP12-20-12T-V-24DG (5039111V) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. When de-energized, it functions as a check valve, allowing fluid flow from one port to another while blocking the opposite flow direction. Upon energization, the poppet lifts to permit fluid flow in the reverse direction. The SP12-20-12T-V-24DG features a continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance. It includes a manual override option and can be equipped with optional waterproof E-Coils rated up to IP69K for enhanced environmental protection. The valve fits an industry common cavity which simplifies installation processes across various applications. For technical specifications, this model offers a pressure rating up to 240 bar (3500 psi), with proof pressure at 350 bar (5075 psi) and burst pressure reaching up to 700 bar (10150 psi). The maximum recommended pressure drop is specified at 70 bar (1015 psi). Flow ratings are detailed in performance graphs available for specific configurations, including standard and 'A' metering poppet options which vary in hysteresis and internal leakage metrics. Operating temperatures range based on seal material: from -40°C to 100°C (-40°F to 212°F) with Buna N seals, higher with fluorocarbon or polyurethane seals. It supports mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt and tolerates maximum operating contamination levels as per ISO standards. In terms of installation and maintenance, the SP12-20-12T-V-24DG has no orientation restrictions and requires specific torque settings during cartridge installation and coil nut securing. Various accessories like seal kits and housings are available to ensure compatibility and ease of use in diverse operational setups.
Fluids
Fluids:
Mineral based or synthetic hydraulic fluid with lubricating
properties.
Fluid viscosity range:
7.4 TO 420 cSt
Maximum operating contamination level:
20/18/14 PER ISO 4406
Unit weight:
0.24 kg (0.52 lb)
Internal wetted surface area:
174 cm² (27.0 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Maximum recommended pressure drop: 207 bar (3000 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 5 drops/min At 207 bar (3000 psi) Hysteresis: ≤10% At maximum control curent for flow from 0 to 5.7 lpm (0 to 1.5 gpm) for the standard poppet and 0 to 56.8 lpm (0 to 15 gpm) for the 'A' metering poppet Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With Buna N seals -26 to 204 °C (-15 to 400 °F) With Buna N seals -40 to 100 °C (-40 to 212 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Environmental Ratings Corrosion Protection: 960 hr salt spray per ASTMB117 |
| Performance |   |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Orientation restrictions: None Torque Specs Cartridge installation torque: 44.9 to 50.3 N-m (33 to 37 ft-lb) Maximum allowable torque: 61 N-m (45 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) |
| Order Code | POSITION CODE DESCRIPTION SP12-20DEG-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
| Electrical Specifications | Valve inductance:
188.8 mH At 1.2 A Maximum control current: 1.2 A 12 V coil Threshold current: 0.30 to 0.50 A For standard poppet 0.22 to 0.50 A For 'A' metering poppet Dither PWM frequency: 100 Hz |
Seal kit:
SK12-2X-T
X = Seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
