- Model:SV10-34-6T-N-12DR SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 3 WAY
Quantity in stock: 33
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

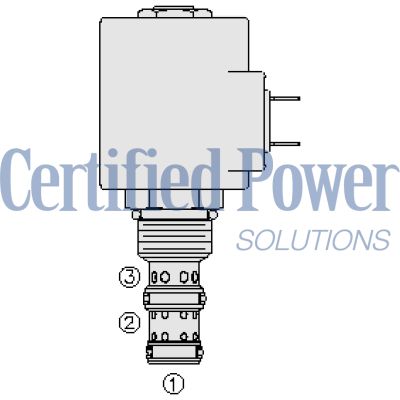

The Hydraforce SV10-34-6T-N-12DR (5036484) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 2 to port 1 while blocking flow at port 3 when de-energized; upon energization, the spool shifts to open flow from port 1 to port 2 while still blocking port 3. It is engineered with a continuous-duty rated coil and features a hardened precision spool and cage that ensure longevity and reliable operation under demanding conditions. Key specifications include a maximum operating pressure of up to 350 bar (5076 psi), proof pressure of up to 420 bar (6090 psi), and burst pressure ratings significantly higher, ensuring safety and durability. The valve supports a maximum flow rate of up to 37.9 liters per minute (10 gallons per minute), with potential for higher flow under certain conditions upon consultation with the manufacturer. The SV10-34-6T-N-12DR is versatile in terms of temperature operation; it can handle fluid temperatures from -40°C (-40°F) with Buna N seals up to +120°C (+248°F) with fluorocarbon seals, making it suitable for various environmental conditions. Additionally, the valve accommodates mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt. Installation features include an industry common cavity VC10-3 size for easy integration into existing systems without orientation restrictions. The unit's weight is approximately 0.41 kg (0.90 lbs), ensuring it does not add significant mass to system assemblies. Optional accessories such as various seal kits and coil options are available to enhance functionality and adaptability across different applications.
The Hydraforce SV10-34-6T-N-12DR (5036484) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 2 to port 1 while blocking flow at port 3 when de-energized; upon energization, the spool shifts to open flow from port 1 to port 2 while still blocking port 3. It is engineered with a continuous-duty rated coil and features a hardened precision spool and cage that ensure longevity and reliable operation under demanding conditions. Key specifications include a maximum operating pressure of up to 350 bar (5076 psi), proof pressure of up to 420 bar (6090 psi), and burst pressure ratings significantly higher, ensuring safety and durability. The valve supports a maximum flow rate of up to 37.9 liters per minute (10 gallons per minute), with potential for higher flow under certain conditions upon consultation with the manufacturer. The SV10-34-6T-N-12DR is versatile in terms of temperature operation; it can handle fluid temperatures from -40°C (-40°F) with Buna N seals up to +120°C (+248°F) with fluorocarbon seals, making it suitable for various environmental conditions. Additionally, the valve accommodates mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt. Installation features include an industry common cavity VC10-3 size for easy integration into existing systems without orientation restrictions. The unit's weight is approximately 0.41 kg (0.90 lbs), ensuring it does not add significant mass to system assemblies. Optional accessories such as various seal kits and coil options are available to enhance functionality and adaptability across different applications.
Unit weight:
0.17 kg (0.37 lb)
Internal wetted surface area:
139 cm² (21.6 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 620 bar (9000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum input flow max, note: under certain operating conditions the valve may be rated for higher flow. Consult factory. See sheet 2 for performance limits Maximum internal leakage: 114.7 ml/min (7 in³/min) Max 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-34E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-3X-MM
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
