HYDRAFORCE
5036045

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

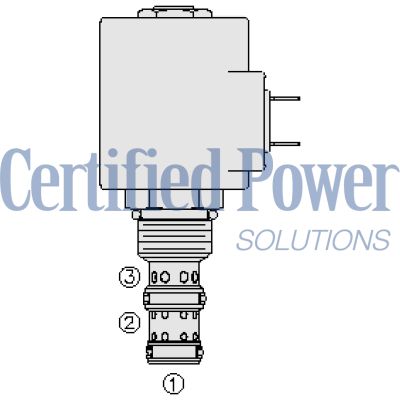

The Hydraforce SV10-34-0-N-24DG (5036045) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 2 to port 1 while blocking flow at port 3 when de-energized. Upon energization, the spool shifts to open flow from port 2 to port 3 while blocking at port 1. It features a continuous-duty rated coil and a hardened precision spool and cage that enhance its durability and lifespan. The SV10-34-0-N-24DG is equipped with optional coil voltages and terminations, allowing customization to meet specific system requirements. Its efficient wet-armature construction and voltage interchangeable cartridges add to its versatility and maintenance ease. All ports can be fully pressurized, ensuring reliable operation under varying conditions. The unit also includes a manual override option and can be fitted with optional waterproof E-Coils rated up to IP69K for enhanced protection against environmental elements. This model uses an industry-common cavity (VC10-3) which simplifies installation processes across various applications. It supports a maximum input flow of up to 7.6 gpm, with operational fluid temperature ranges depending on the seal material: from -40°C to +100°C with Buna N seals up to -26°C to +204°C with fluorocarbon seals. The valve's robust design allows it to handle pressures up to 241 bar (3500 psi) and burst pressures significantly higher, ensuring safety and reliability in operation. Additionally, the Hydraforce SV10-34-0-N-24DG is compatible with mineral-based or synthetic hydraulic fluids with lubricating properties, accommodating fluid viscosity ranges from 7.4 to 420 cSt. This valve is suitable for various hydraulic applications requiring precise control over fluid handling and direction within a compact design framework.
