HYDRAFORCE
5036000

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

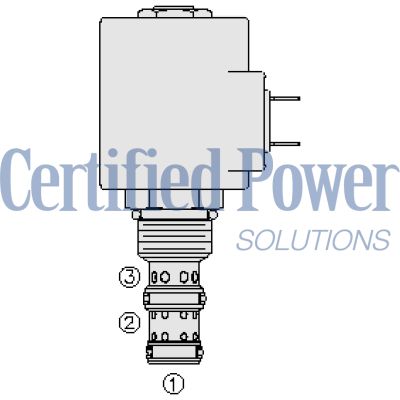

The Hydraforce SV10-34-0-N-00 (5036000) is a robust solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve operates by allowing flow from port 1 to port 2 while blocking flow at port 3 when de-energized. When energized, the spool shifts to open flow from port 2 to port 3, simultaneously blocking port 1. It features a continuous-duty rated coil and a hardened precision spool and cage that ensure longevity and reliability under continuous use. This model is suitable for various applications requiring reliable directional control of hydraulic fluids. It supports an array of coil voltages and terminations, allowing customization to meet specific system requirements. The efficient wet-armature construction minimizes power consumption while maximizing hydraulic performance. The SV10-34-0-N-00 is designed with interchangeable voltage cartridges and can withstand full pressurization on all ports. Its unitized, molded coil design enhances durability, and it offers a manual override option for additional operational flexibility. Additionally, the valve is compatible with optional waterproof E-Coils rated up to IP69K, making it suitable for use in environments where moisture or dust ingress is a concern. With its industry-common cavity configuration (VC10-3), installation is streamlined across multiple platforms without the need for extensive modifications. The valve’s performance parameters include a pressure rating up to 207 bar (3000 psi), proof pressure of 310 bar (4500 psi), and burst pressure reaching up to 620 bar (9000 psi). It also supports a maximum flow rate of 37.9 liters per minute (10 gallons per minute), making it highly effective for a wide range of operational demands in fluid power applications.
