HYDRAFORCE
5027757V
$142.50 USD
- HYDRAFORCE
- Material:5027757V
- Model:SV10-42-6T-V-36DS SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5027757V (5027757V) is a solenoid-operated, four-port, two-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 3 to port 4 and from port 2 to port 1 when de-energized. Upon energization, the spool shifts to block all ports, providing an effective shut-off mechanism. The 5027757V features a continuous-duty rated coil and exhibits a hardened precision spool and cage which enhances its durability and longevity in demanding applications. Additional attributes of this valve include efficient wet-armature construction and interchangeable cartridges across different voltages, which offer flexibility in system design and maintenance. All ports on the valve can withstand full pressurization, enhancing its capability to perform under various operational pressures without compromise. The unitized, molded coil design contributes to the reliability of the valve's electrical functions. For environments requiring rigorous standards, optional waterproof E-Coils are available that are rated up to IP69K for high-level protection against ingress of dust and water. The manual override option provides added operational flexibility, allowing manual control of the valve in case of an electrical power failure or for testing purposes. The Hydraforce 5027757V also utilizes an industry-common cavity which simplifies installation and compatibility with existing systems, making it a versatile choice for integration into a wide range of industrial hydraulic applications.
The Hydraforce 5027757V (5027757V) is a solenoid-operated, four-port, two-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 3 to port 4 and from port 2 to port 1 when de-energized. Upon energization, the spool shifts to block all ports, providing an effective shut-off mechanism. The 5027757V features a continuous-duty rated coil and exhibits a hardened precision spool and cage which enhances its durability and longevity in demanding applications. Additional attributes of this valve include efficient wet-armature construction and interchangeable cartridges across different voltages, which offer flexibility in system design and maintenance. All ports on the valve can withstand full pressurization, enhancing its capability to perform under various operational pressures without compromise. The unitized, molded coil design contributes to the reliability of the valve's electrical functions. For environments requiring rigorous standards, optional waterproof E-Coils are available that are rated up to IP69K for high-level protection against ingress of dust and water. The manual override option provides added operational flexibility, allowing manual control of the valve in case of an electrical power failure or for testing purposes. The Hydraforce 5027757V also utilizes an industry-common cavity which simplifies installation and compatibility with existing systems, making it a versatile choice for integration into a wide range of industrial hydraulic applications.
Description A solenoid-operated, 4 port, 2 position, direct-acting spool type, screw in hydraulic cartridge valve. Operation When de-energized, the SV10-42 flow paths are port 3 to port 4, and port 2 to port 1. When energized, the valve's spool shifts to block all ports. Features Continuous-duty rated coil. Hardened precision spool and cage for long life. Optional coil voltages and terminations. Efficient wet-armature construction. Cartridges are voltage interchangeable. All ports may be fully pressurized. Unitized, molded coil design. Manual override option. Optional waterproof E‑Coils rated up to IP69K. Industry-common cavity.
Unit weight:
0.19 kg (0.42 lb)
Internal wetted surface area:
164 cm² (25.4 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 276 bar (4000 psi) Burst pressure: 621 bar (9000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum internal leakage: 5 in³/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals |
| Operating Parameters | Maximum operating contamination level:
Iso4406 18/16/13 0.712 mg Maximum allowable contaminant 0.5 mm (0.02 in) Absolute maximum particle size. Packaging to maintain cleanliness level during shipping and handling All surfaces in contact with working fluid to meet jds-g169, 5.6 cleanliness level |
| Electrical Parameters | Pull in voltage:
Pull-in 85% of nominal at 40 °C (104 °F) Drop out voltage: 5% of nominal |

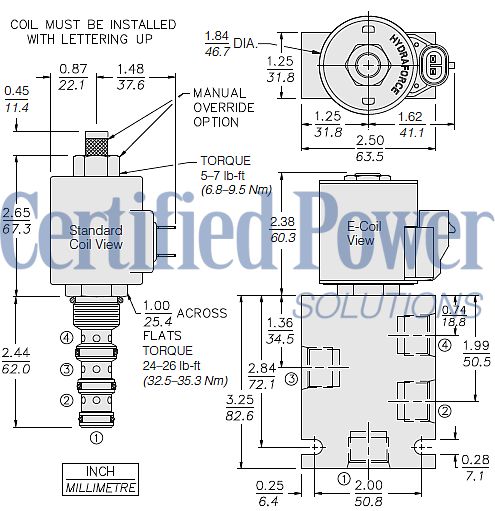

| Performance |  |
| Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-42E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-4X-MMM
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
