SPCL16-32-0-N-00
5026090
$199.50
- HYDRAFORCE
- Material:5026090
- Model:SPCL16-32-0-N-00 SOLENOID VALVE
- Summary:SOLENOID PROPORTIONAL VALVE POPPET, 3 PORT, NORMALLY CLOSED, U.S. PATENT # 7,921,880
Quantity in stock: 0
Description This SPCL16-32 valve is a solenoid-operated, 3 port, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve, designed for low leakage, blocking and load-holding applications. When energized, the poppet lifts to allow flow from port 3 to ports 1 and 2, flow at port 2 is typical for load sensing applications but does not have a check valve for isolation. Features Industry-common cavity. Continuous-duty rated coils. Efficient wet-armature construction. Optional waterproof E-Coils rated up to IP69K. Reduce manifold space claim.
Properties: Unit weight:
0.49 kg (1.09 lb)
Internal wetted surface area:
353 cm² (54.7 in²)
Ratings: Pressure Ratings
Pressure rating:
2.4 to 250 bar (35 to 3625 psi)
Proof pressure:
345 bar (5000 psi)
Burst pressure:
779 bar (11300 psi)
Flow Ratings
Flow rating:

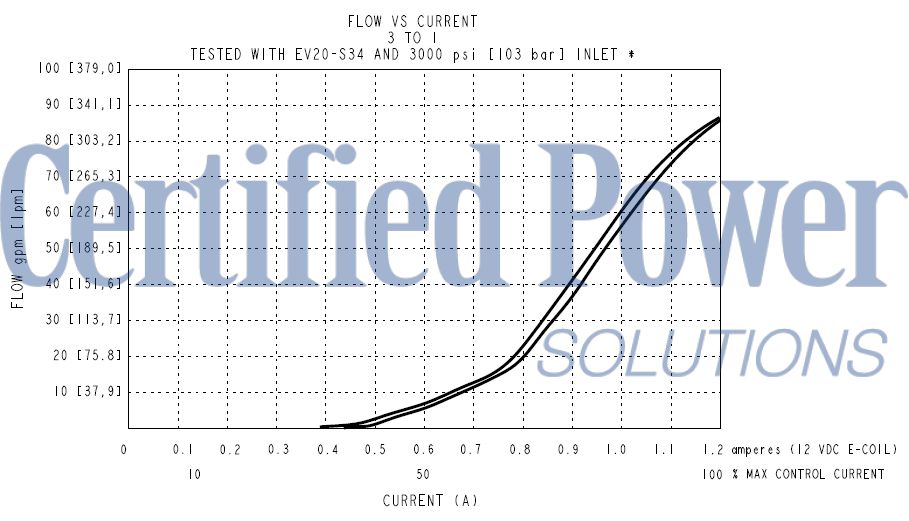

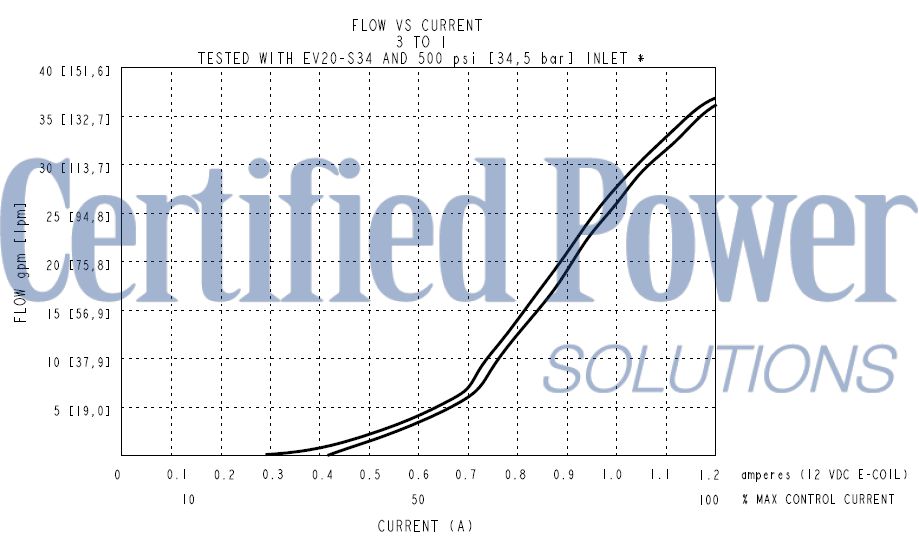

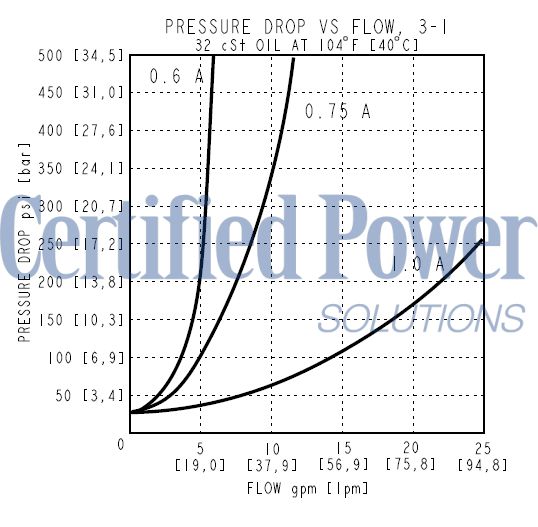

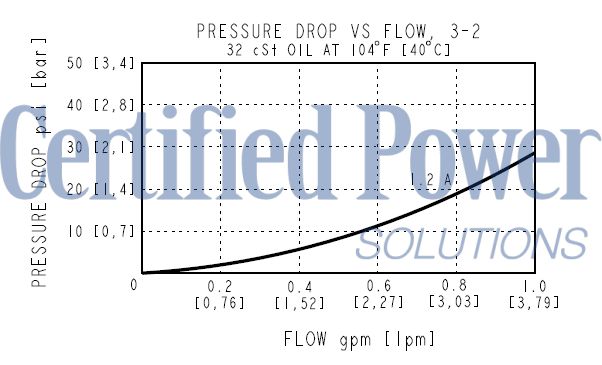

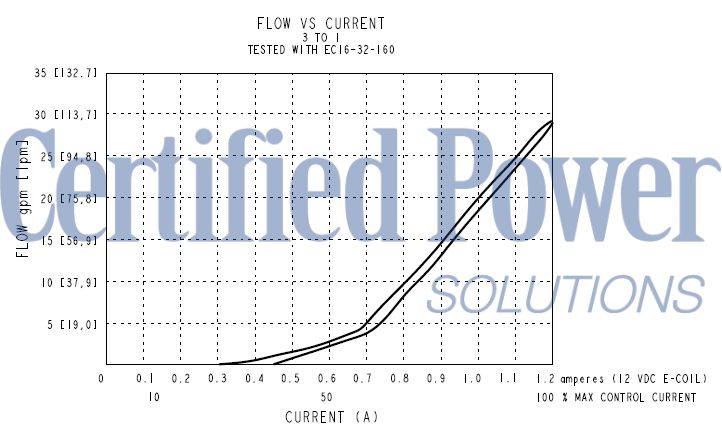

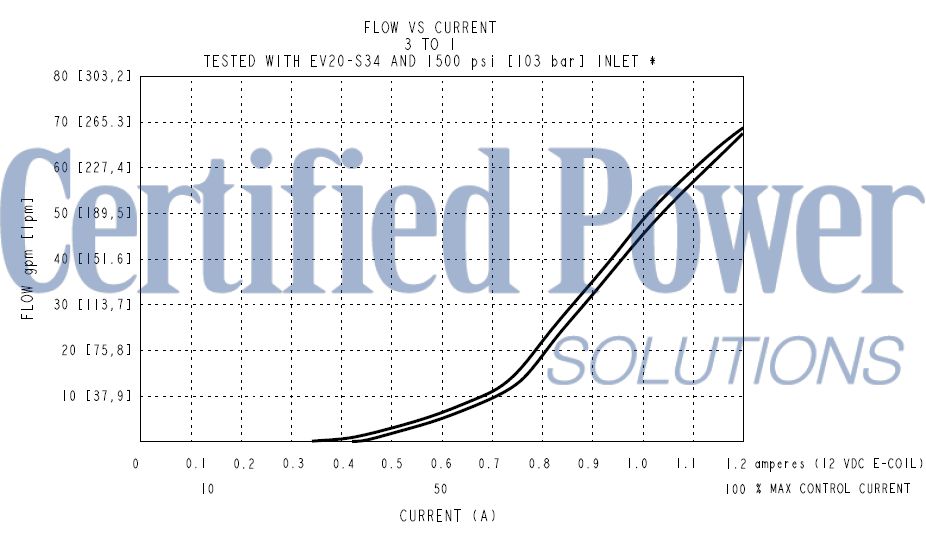

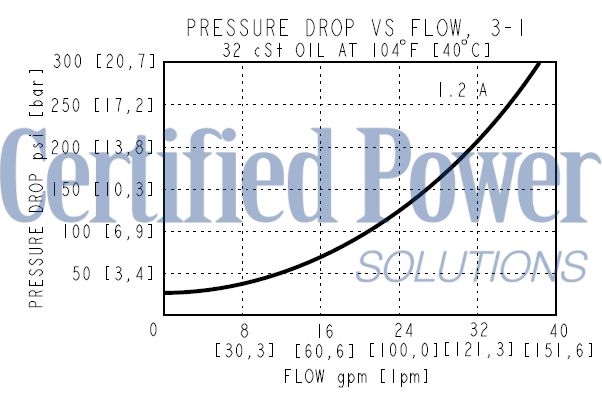

See performance graphs
Maximum internal leakage:
5 drops/min
For ports 1 and 3, at 250 bar (3625 psi)
15 drops/min
For port 2, at 250 bar (3625 psi)
Hysteresis percent:
10 %
Of max flow (at max control current)
Temperature Ratings
Operating fluid temperature:
-40 to 100 °C (-40 to 212 °F)
With Buna N seals
-26 to 204 °C (-15 to 400 °F)
With Viton seals
-54 to 107 °C (-65 to 225 °F)
With polyurethane seals
Storage temperature:
-40 to 70 °C (-40 to 160 °F)
Ambient temperature:
-40 to 70 °C (-40 to 160 °F)
Operating Parameters: Fluids:
Mineral based or synthetic hydraulic fluid with lubricating
properties
Fluid viscosity range:
7.4 to 420 cSt
Maximum operating contamination level:
20/18/14 per ISO 4406
Electrical Parameters: Valve inductance:
173.3 mH
At 1.2 A
Maximum control current:
1.2 A
Threshold current:
0.40 to 0.60 A
Dither PWM frequency:
100 Hz
Recommended
Performance:
Installation Specifications: Cavity:
VC16-3SPCL
16-size-4-way Cavities
Cartridge installation torque:
129 to 142 N-m (95 to 105 ft-lb)
Coil nut torque:
6.8 to 9.5 N-m (5 to 7 ft-lb)
Orientation restriction:
None
Order Code: POSITION CODE DESCRIPTION SPCL16-32-H-J-L H Line Body H 0 No Body J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade

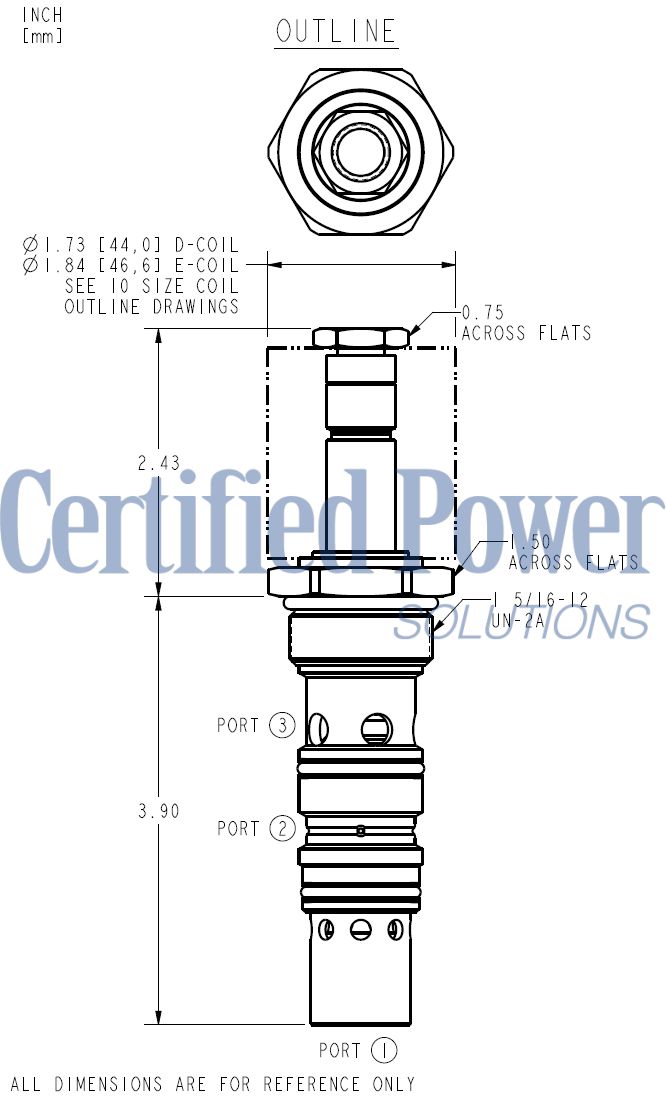

Dimensions:
Accessories: Seal kit:
SK16-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
16-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
