- Model:SPCL10-32M-0-N-12EY SOLENOID VALVE
- Summary:SOLENOID PROPORTIONAL VALVE POPPET, 3 PORT, NORMALLY CLOSED U.S. PATENT # 7,921,880
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5026068 (5026068) is a solenoid-operated, 3-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for applications requiring low leakage, blocking, and load-holding capabilities. When the valve is energized, the poppet lifts to enable flow from port 3 to ports 1 and 2. Notably, flow at port 2 is typically utilized for load sensing applications; however, it does not include a check valve for isolation purposes. This model features a continuous-duty rated coil and efficient wet-armature construction that enhances its reliability and performance under continuous operational conditions. An optional waterproof E-Coil, which can be rated up to IP69K, provides additional protection against ingress of dust and high-temperature, high-pressure water—making it suitable for harsh environmental conditions. Additionally, the Hydraforce 5026068 adheres to an industry-common cavity design which helps in reducing manifold space requirements in system assemblies. The design and construction of this valve make it an excellent choice for various hydraulic systems where precise control of fluid flow is essential along with robustness in blocking and load-holding operations. Its specialized features ensure efficient functionality tailored to meet demanding hydraulic application needs without compromise on performance or durability.
The Hydraforce 5026068 (5026068) is a solenoid-operated, 3-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for applications requiring low leakage, blocking, and load-holding capabilities. When the valve is energized, the poppet lifts to enable flow from port 3 to ports 1 and 2. Notably, flow at port 2 is typically utilized for load sensing applications; however, it does not include a check valve for isolation purposes. This model features a continuous-duty rated coil and efficient wet-armature construction that enhances its reliability and performance under continuous operational conditions. An optional waterproof E-Coil, which can be rated up to IP69K, provides additional protection against ingress of dust and high-temperature, high-pressure water—making it suitable for harsh environmental conditions. Additionally, the Hydraforce 5026068 adheres to an industry-common cavity design which helps in reducing manifold space requirements in system assemblies. The design and construction of this valve make it an excellent choice for various hydraulic systems where precise control of fluid flow is essential along with robustness in blocking and load-holding operations. Its specialized features ensure efficient functionality tailored to meet demanding hydraulic application needs without compromise on performance or durability.
Unit weight:
0.2 kg (0.44 lb)
Internal wetted surface area:
178 cm² (27.6 in²)

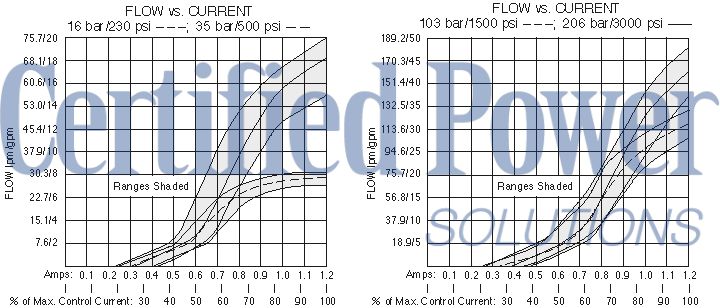

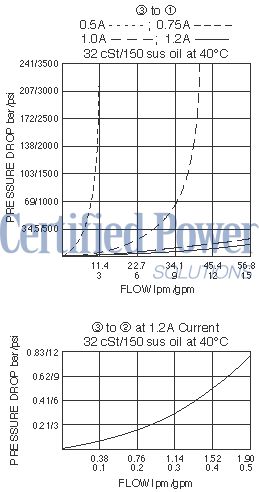

| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 5 drops/min Port 1 port 3 at 250 bar (3625 psi) 15 drops/min Port 2 at 250 bar (3625 psi) Hysteresis per cent: 10 % Of max flow (at max control current) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Valve inductance:
173.3 mH At 1.2 A Maximum control current: 1.44 A 10 V D-series coil 1.20 A 12 V D-series coil 1.40 A 12 V E-series coil 0.74 A 20 V D-series coil 0.60 A 24 V D-series coil 0.70 A 24 V E-series coil Threshold current: 0.36 A 10 V D-series coil 0.30 A 12 V D-series coil 0.30 A 12 V E-series coil 0.18 A 20 V D-series coil 0.15 A 24 V D-series coil 0.15 A 24 V E-series coil Dither PWM frequency: 100 Hz |
| Performance |   |
| Installation Specifications | Cavity:

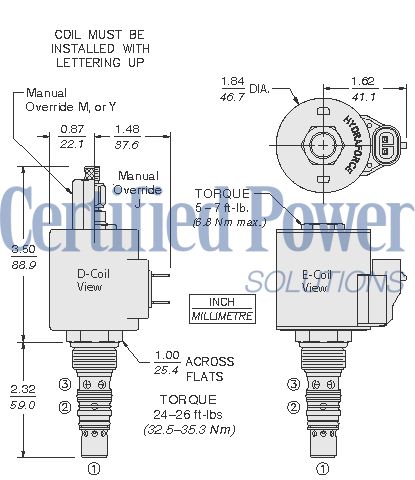

VC10-3B 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SPCL10-32E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
